12-0511 Series
Manufacturer: Aries Electronics
Beta
⌘K

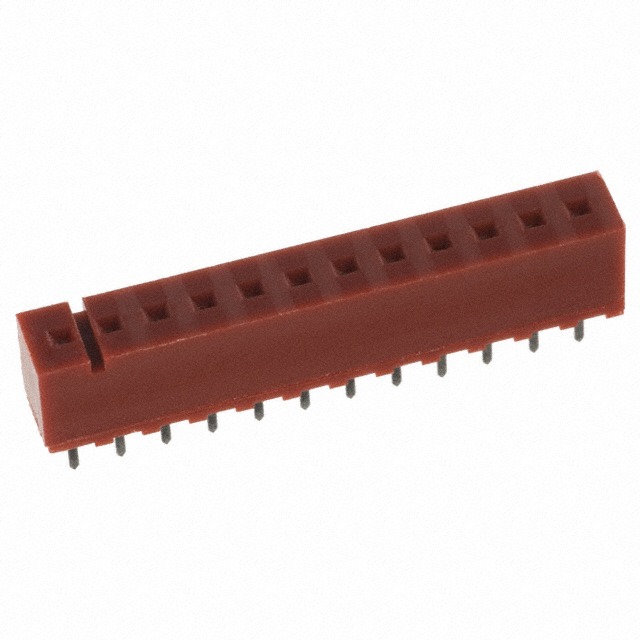

CONN SOCKET SIP 12POS GOLD
| Part | Termination Post Length | Termination Post Length | Material Flammability Rating | Current Rating (Amps) | Number of Positions or Pins (Grid) [x] | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) [y] | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Operating Temperature [Min] | Operating Temperature [Max] | Pitch - Mating | Pitch - Mating | Contact Finish - Post | Pitch - Post | Pitch - Post | Contact Finish - Mating | Type | Mounting Type | Contact Material - Post | Housing Material | Contact Material - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Aries Electronics | 3.81 mm | 0.15 in | UL94 V-0 | 1 A | 1 | 12 | 12 | 10 Áin | 0.25 çm | -55 C | 125 °C | 0.1 " | 2.54 mm | Gold | 0.1 in | 2.54 mm | Gold | SIP | Through Hole | Phosphor Bronze | Polyamide (PA46) Nylon 4/6 Glass Filled | Phosphor Bronze | 0.25 µm | 10 µin | Solder |
 Aries Electronics | 3.81 mm | 0.15 in | UL94 V-0 | 1 A | 1 | 12 | 12 | 50 µin | 1.27 µm | -55 C | 105 ░C | 0.1 " | 2.54 mm | Tin | 0.1 in | 2.54 mm | SIP | Through Hole | Phosphor Bronze | Polyamide (PA46) Nylon 4/6 Glass Filled | Phosphor Bronze | 1.27 µm | 50 µin | Solder |
