E1052S Series
Manufacturer: Prysmian Group
Beta
⌘K

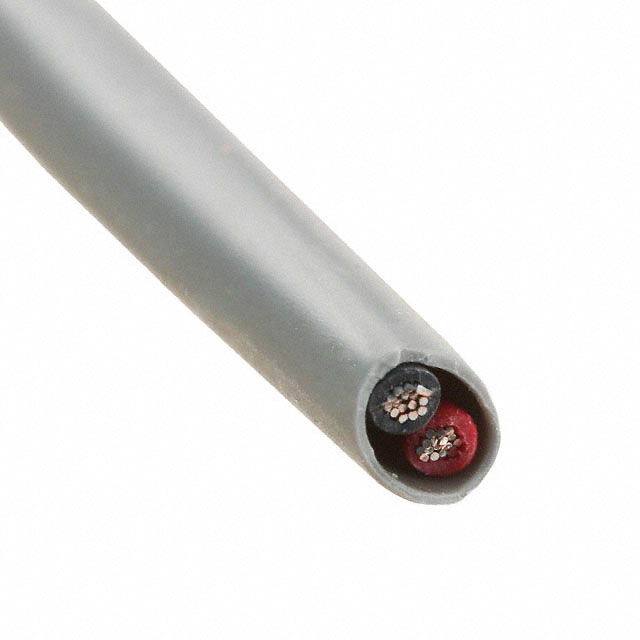

CABLE 2COND 14AWG GRAY 500'
| Part | Usage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Insulation | Ratings | Jacket (Insulation) Material | Length | Length | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Material | Wire Gauge | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Thickness [x] | Jacket Color | Voltage | Features | Number of Conductors | Cable Type | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Prysmian Group | Alarm Security Sound | 5.69 mm | 0.224 " | Poly-Vinyl Chloride (PVC) | ASTM B-3 | Poly-Vinyl Chloride (PVC) Riser | 152.4 m | 500 ft | 19 | 0.0147 in | Copper Annealed Bare | 14.5 AWG | 0.381 mm | 0.015 in | Gray | 300 VDC | Rip Cord | 2 | Multi-Conductor | ||
 Prysmian Group | Alarm Security Sound | 5.69 mm | 0.224 " | Poly-Vinyl Chloride (PVC) | ASTM B-3 | Poly-Vinyl Chloride (PVC) Riser | 304.8 m | 1000 ft | 19 | 0.0147 in | Copper Annealed Bare | 14.5 AWG | 0.381 mm | 0.015 in | Gray | 150 V | Rip Cord | 2 | Multi-Conductor | ||
 Prysmian Group | 5.69 mm | 0.224 " | Poly-Vinyl Chloride (PVC) | ASTM B-3 | Poly-Vinyl Chloride (PVC) Riser | 304.8 m | 1000 ft | 19 | 0.0147 in | Copper Bare | 14.5 AWG | 0.381 mm | 0.015 in | White | 300 VDC | Rip Cord | 2 | Multi-Conductor | |||
Prysmian Group | Alarm Security Sound | 5.69 mm | 0.224 " | Poly-Vinyl Chloride (PVC) | ASTM B-3 | Poly-Vinyl Chloride (PVC) Riser | 15.24 m 304.8 m | 50 ft 1000 ft | 19 | 0.0147 in | Copper Annealed Bare | 14.5 AWG | 0.381 mm | 0.015 in | Gray | 150 V | Rip Cord | 2 | Multi-Conductor | 100 ft | 30.5 m |
Prysmian Group | Alarm Security Sound | 5.69 mm | 0.224 " | Poly-Vinyl Chloride (PVC) | ASTM B-3 | Poly-Vinyl Chloride (PVC) Riser | 304.8 m | 1000 ft | 19 | 0.0147 in | Copper Annealed Bare | 14.5 AWG | 0.381 mm | 0.015 in | Gray | 150 V 300 VDC | Rip Cord | 2 | Multi-Conductor | 100 ft | 30.5 m |
Prysmian Group | Alarm Security Sound | 5.69 mm | 0.224 " | Poly-Vinyl Chloride (PVC) | ASTM B-3 | Poly-Vinyl Chloride (PVC) Riser | 152.4 m | 500 ft | 19 | 0.0147 in | Copper Annealed Bare | 14.5 AWG | 0.381 mm | 0.015 in | Gray | 300 VDC | Rip Cord | 2 | Multi-Conductor | ||
Prysmian Group | 5.69 mm | 0.224 " | Poly-Vinyl Chloride (PVC) | ASTM B-3 | Poly-Vinyl Chloride (PVC) Riser | 304.8 m | 1000 ft | 19 | 0.0147 in | Copper Bare | 14.5 AWG | 0.381 mm | 0.015 in | White | 300 VDC | Rip Cord | 2 | Multi-Conductor | |||
Prysmian Group | Alarm Security Sound | 5.69 mm | 0.224 " | Poly-Vinyl Chloride (PVC) | ASTM B-3 | Poly-Vinyl Chloride (PVC) Riser | 15.24 m 152.4 m 304.8 m | 50 ft 500 ft 1000 ft | 19 | 0.0147 in | Copper Annealed Bare | 14.5 AWG | 0.381 mm | 0.015 in | Gray | 150 V | Rip Cord | 2 | Multi-Conductor | 100 ft | 30.5 m |
