C2688 Series
Manufacturer: Prysmian Group
Beta
⌘K

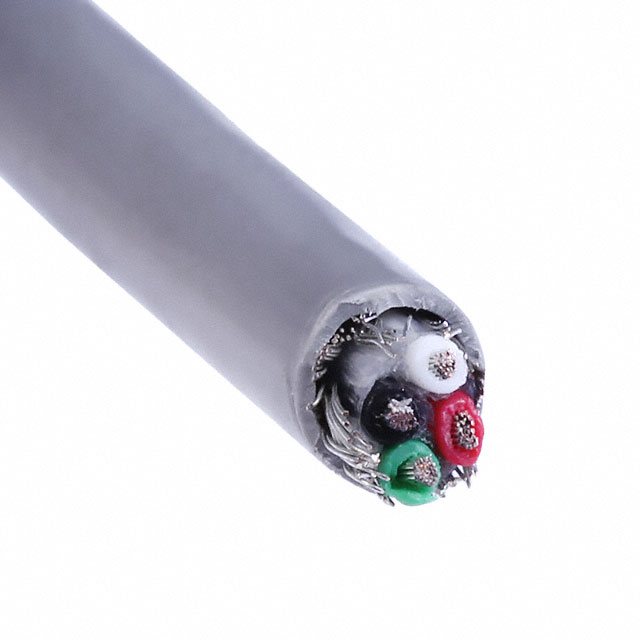

CABLE 4COND 18AWG GRAY SHLD 100'
| Part | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Insulation | Conductor Material | Jacket Color | Cable Type | Length [x] | Length [x] | Ratings | Jacket (Insulation) Material | Wire Gauge | Usage | Operating Temperature [Max] | Operating Temperature [Min] | Number of Conductors | Length | Length | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Voltage | Shield Type | Shield Material | Shield Coverage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Prysmian Group | 7.26 mm | 0.286 in | Poly-Vinyl Chloride (PVC) | Copper Annealed Tinned | Gray | Multi-Conductor | 100 ft | 30.5 m | ASTM B-33 | Poly-Vinyl Chloride (PVC) | 18 AWG | Communication Control | 80 °C | -20 ░C | 4 | 15.24 m 304.8 m | 50 ft 1000 ft | 16 | 30 AWG | 0.813 mm | 0.032 in | 300 VDC | Braid | ||
 Prysmian Group | 7.26 mm | 0.286 in | Poly-Vinyl Chloride (PVC) | Copper Annealed Tinned | Gray | Multi-Conductor | ASTM B-33 | Poly-Vinyl Chloride (PVC) | 18 AWG | Communication Control | 80 °C | -20 ░C | 4 | 152.4 m | 500 ft | 16 | 30 AWG | 0.813 mm | 0.032 in | 300 VDC | Braid | Copper Tinned | 75 % | ||
Prysmian Group | 7.26 mm | 0.286 in | Poly-Vinyl Chloride (PVC) | Copper Annealed Tinned | Gray | Multi-Conductor | ASTM B-33 | Poly-Vinyl Chloride (PVC) | 18 AWG | Communication Control | 80 °C | -20 ░C | 4 | 152.4 m 304.8 m | 500 ft 1000 ft | 16 | 30 AWG | 0.813 mm | 0.032 in | 300 VDC | Braid | Copper Tinned | 75 % |
