TPS61178 Series
20-V, 10-A fully integrated sync boost with load disconnect
Manufacturer: Texas Instruments
Catalog
20-V, 10-A fully integrated sync boost with load disconnect
| Part | Mounting Type | Supplier Device Package | Function | Voltage - Input (Max) [Max] | Output Type | Operating Temperature [Min] | Operating Temperature [Max] | Output Configuration | Synchronous Rectifier | Voltage - Input (Min) [Min] | Frequency - Switching | Topology | Package / Case | Voltage - Output (Min/Fixed) [Min] | Voltage - Output (Max) [Max] | Current - Output | Number of Outputs | Frequency - Switching [Min] | Frequency - Switching [Max] | Supplied Contents | Board Type | Outputs and Type | Outputs and Type | Regulator Topology | Utilized IC / Part | Main Purpose | Voltage - Input [Min] | Voltage - Input [Max] | Voltage - Output | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

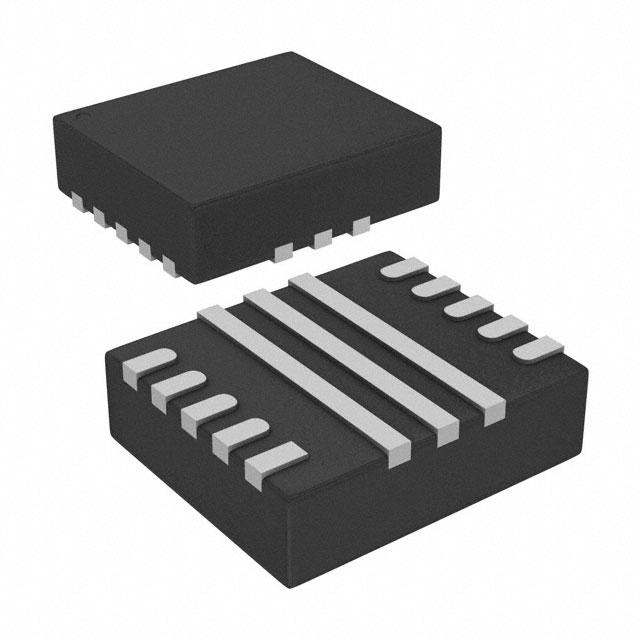

 Texas Instruments | Surface Mount | 13-VQFN-HR (3x3.5) | Step-Up | 20 V | Adjustable | -40 C | 125 °C | Positive | 2.7 V | 2.2 MHz | Boost | 13-PowerVFQFN | 4.5 V | 20 V | 10 A | 1 | ||||||||||||||
 Texas Instruments | Surface Mount | 13-VQFN-HR (3x3.5) | Step-Up | 20 V | Adjustable | -40 C | 125 °C | Positive | 2.7 V | Boost | 13-PowerVFQFN | 4.5 V | 20 V | 10 A | 1 | 200 kHz | 2.2 MHz | |||||||||||||

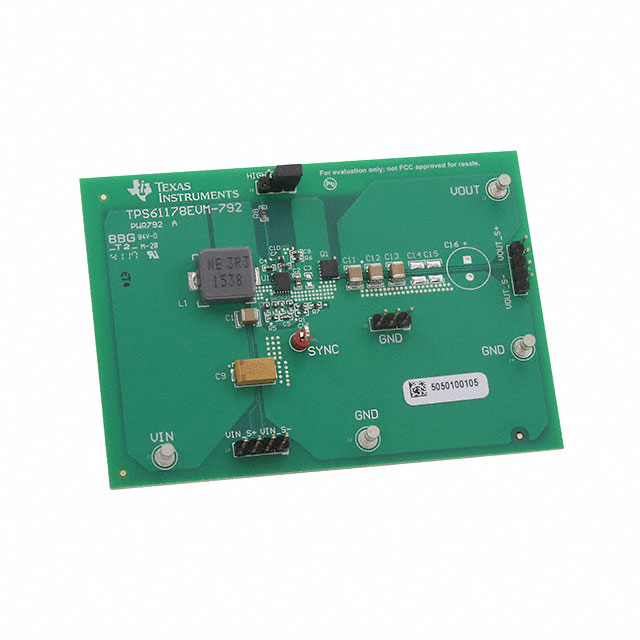

 Texas Instruments | 500 kHz | 2.2 A | Board(s) | Fully Populated | 1 | 1 Non-Isolated Output Non-Isolated | Boost | TPS61178 | DC/DC Step Up | 5.4 V | 12 VDC | 16 V | Board(s) | |||||||||||||||||
Texas Instruments | Surface Mount | 13-VQFN-HR (3x3.5) | Step-Up | 20 V | Adjustable | -40 C | 125 °C | Positive | 2.7 V | 2.2 MHz | Boost | 13-PowerVFQFN | 4.5 V | 20 V | 10 A | 1 | ||||||||||||||
Texas Instruments | Surface Mount | 13-VQFN-HR (3x3.5) | Step-Up | 20 V | Adjustable | -40 C | 125 °C | Positive | 2.7 V | Boost | 13-PowerVFQFN | 4.5 V | 20 V | 10 A | 1 | 200 kHz | 2.2 MHz |
Description
AI
The TPS61178x family is a 20-V synchronous Boost converter with the gate driver built-in for load disconnect. The TPS61178x integrates two low on-resistance power FETs: A 16-mΩ switching FET and a 16-mΩ rectifier FET.
The TPS61178x uses the fixed frequency peak current mode control with the slope compensation integrated. At the light load, the TPS61178 enters into the auto PFM mode while TPS611781 is in the forced PWM mode.

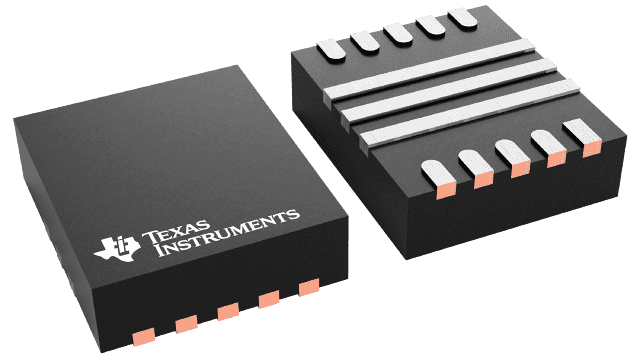

The TPS61178x could isolate the output from input side when shutdown. Once the output is shorted, it enters into the hiccup mode to lower the thermal stress and can recover automatically after the short releases. Additionally, the TPS61178x also has OVP and thermal protection to avoid the fault operation. The TPS61178x is in a 3.0-mm x 3.5-mm 13-pin VQFN package with enhanced thermal dissipation.
