25LC080B Series

8Kb 2.5V SPI Serial EEPROM with 16 Byte Page size

Catalog

8Kb 2.5V SPI Serial EEPROM with 16 Byte Page size

Part	Supplier Device Package	Clock Frequency	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Package / Case [custom]	Package / Case	Memory Format	Memory Size	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Technology	Write Cycle Time - Word, Page	Memory Organization	Memory Type	Memory Interface	Package / Case	Package / Case [custom]	Package / Case [y]	Package / Case [x]
Microchip Technology 25LC080CT-E/MS	8-MSOP	10 MHz	-40 °C	125 °C	8-MSOP 8-TSSOP	0.118 in	3 mm	EEPROM	8 Kbit	2.5 V	5.5 V	Surface Mount	EEPROM	5 ms	1K x 8	Non-Volatile	SPI
Microchip Technology 25LC080B-I/P	8-PDIP	10 MHz	-40 °C	85 °C	8-DIP		0.3 in	EEPROM	8 Kbit	2.5 V	5.5 V	Through Hole	EEPROM	5 ms	1K x 8	Non-Volatile	SPI	7.62 mm
Microchip Technology 25LC080C-I/ST	8-TSSOP	10 MHz	-40 °C	85 °C	8-TSSOP	0.173 "		EEPROM	8 Kbit	2.5 V	5.5 V	Surface Mount	EEPROM	5 ms	1K x 8	Non-Volatile	SPI		4.4 mm
Microchip Technology 25LC080B-E/SN	8-SOIC	10 MHz	-40 °C	125 °C	8-SOIC			EEPROM	8 Kbit	2.5 V	5.5 V	Surface Mount	EEPROM	5 ms	1K x 8	Non-Volatile	SPI			3.9 mm	0.154 in
Microchip Technology 25LC080CT-H/SN	8-SOIC	5 MHz	-40 °C	150 °C	8-SOIC			EEPROM	8 Kbit	2.5 V	5.5 V	Surface Mount	EEPROM		1K x 8	Non-Volatile	SPI			3.9 mm	0.154 in
Microchip Technology 25LC080C-E/SN	8-SOIC	10 MHz	-40 °C	125 °C	8-SOIC			EEPROM	8 Kbit	2.5 V	5.5 V	Surface Mount	EEPROM	5 ms	1K x 8	Non-Volatile	SPI			3.9 mm	0.154 in
Microchip Technology 25LC080A-E/SN	8-SOIC	10 MHz	-40 °C	125 °C	8-SOIC			EEPROM	8 Kbit	2.5 V	5.5 V	Surface Mount	EEPROM	5 ms	1K x 8	Non-Volatile	SPI			3.9 mm	0.154 in

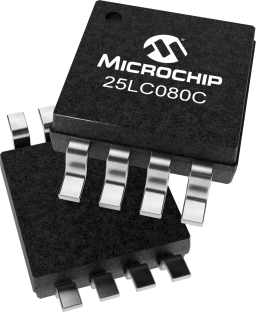

Microchip Technology 25LC080B-E/MS	8-MSOP	10 MHz	-40 °C	125 °C	8-MSOP 8-TSSOP	0.118 in	3 mm	EEPROM	8 Kbit	2.5 V	5.5 V	Surface Mount	EEPROM	5 ms	1K x 8	Non-Volatile	SPI
Microchip Technology 25LC080D-I/ST	8-TSSOP	10 MHz	-40 °C	85 °C	8-TSSOP	0.173 "		EEPROM	8 Kbit	2.5 V	5.5 V	Surface Mount	EEPROM	5 ms	1K x 8	Non-Volatile	SPI		4.4 mm
Microchip Technology 25LC080BT-E/ST	8-TSSOP	10 MHz	-40 °C	125 °C	8-TSSOP	0.173 "		EEPROM	8 Kbit	2.5 V	5.5 V	Surface Mount	EEPROM	5 ms	1K x 8	Non-Volatile	SPI		4.4 mm

Catalog

8Kb 2.5V SPI Serial EEPROM with 16 Byte Page size

Key Features

• * 1024 x 8-bit (8 Kbit)

• * Supports SPI modes 0 and 3

• * Up to 10 MHz clock frequency

• * Self-Timed Erase and Write Cycles (5 ms max.)

• * Read current: 5 mA (Max) at 10 MHz

• * Write current: 5 mA (Max) at 10 MHz

• * Standby current: 5 μA (Max) at 5.5 V

• * Block Write Protection: Protect 1/4, 1/2 or Entire Array

• * More than 1 million erase/write cycles

• * Data retention > 200 years

• * Industrial (I): -40°C to 85°C

• * Extended (E): -40°C to +125°C

• * Extended+ (H): -40°C to +150°C

• * Automotive AECQ-100 Qualified1

• * Factory Programming Available

• * Available in standard packages including 8-lead PDIP and SOIC, and advanced packages including 8-lead MSOP, 8-lead TSSOP and 8-lead 2x3 TDFN

Description

The Microchip 25LC080C is a 8Kb Serial EEPROM utilizing the industry standard Serial Peripheral Interface (SPI) compatible serial bus. The device is organized as one block of 1024 x 8-bit and is optimized for use in consumer electronics, industrial, medical, and automotive applications where reliable and dependable nonvolatile memory storage is essential. Software write protection allows the user to protect ¼, ½, or the entire memory array. A hardware write protect pin is also provided, which additionally protects against inadvertent writes to the status register. The EEPROM is available in a variety of space-saving packaging options.
