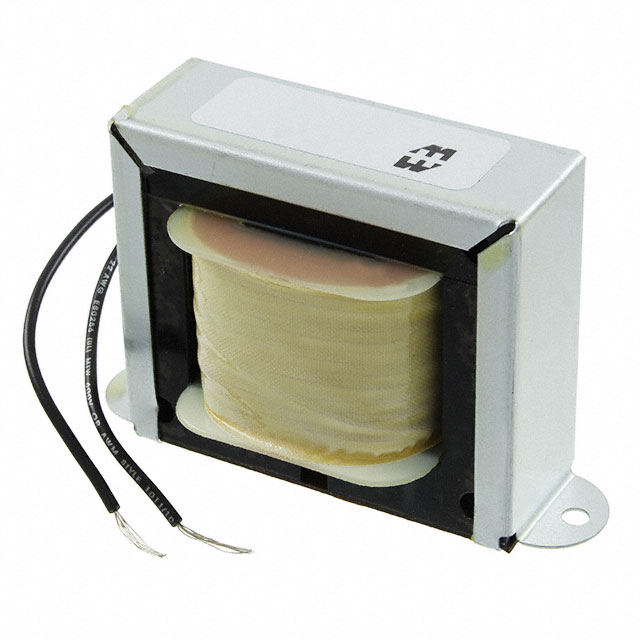

159Z Series

Catalog

FIXED IND 15MH 4A 250 MOHM CHASS

Part	Mounting Type	Shielding	DC Resistance (DCR)	Inductance	Height - Seated (Max) [Max]	Height - Seated (Max)	Current Rating (Amps)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Tolerance
Hammond Manufacturing 159ZG	Chassis Mount	Unshielded	250 mOhm	15 mH	2.63 "	66.8 mm	4 A	102.36 mm	57.15 mm	2.25 in	4.03 in	Nonstandard	15 %
Hammond Manufacturing 159ZC	Chassis Mount	Unshielded	700 mOhm	60 mH	2.63 "	66.8 mm	2 A	102.36 mm	57.15 mm	2.25 in	4.03 in	Nonstandard	15 %
Hammond Manufacturing 159ZE	Chassis Mount	Unshielded	430 mOhm	28 mH	2.63 "	66.8 mm	3 A	102.36 mm	57.15 mm	2.25 in	4.03 in	Nonstandard	15 %
Hammond Manufacturing 159ZB	Chassis Mount	Unshielded	7.8 Ohm	320 mH	2.63 "	66.8 mm	600 mA	102.36 mm	57.15 mm	2.25 in	4.03 in	Nonstandard	15 %
Hammond Manufacturing 159ZL	Chassis Mount	Unshielded	44 mOhm	2.5 mH	2.63 "	66.8 mm	10 A	102.36 mm	57.15 mm	2.25 in	4.03 in	Nonstandard	15 %
Hammond Manufacturing 159ZJ	Chassis Mount	Unshielded	160 mOhm	10 mH	2.63 "	66.8 mm	5 A	102.36 mm	57.15 mm	2.25 in	4.03 in	Nonstandard	15 %
Hammond Manufacturing 159ZA	Chassis Mount	Unshielded	6 Ohm	300 mH	2.63 "	66.8 mm	1 A	102.36 mm	57.15 mm	2.25 in	4.03 in	Nonstandard	15 %
