RM12BJB Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K

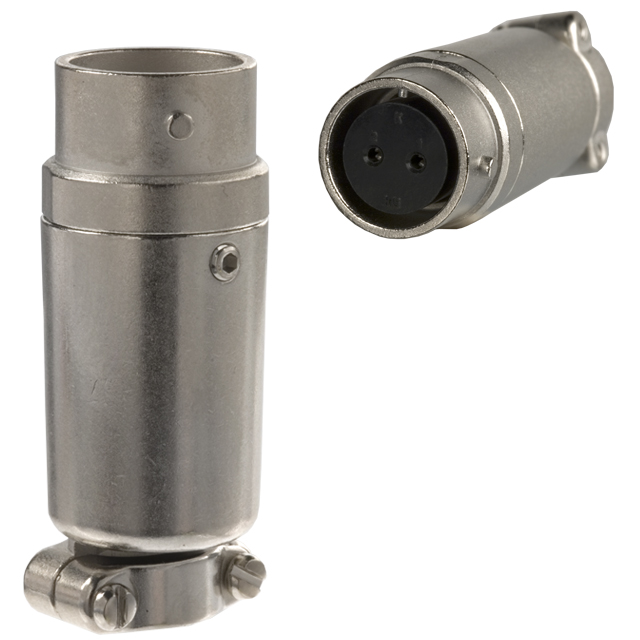

CONN RCPT
| Part | Mounting Type | Current Rating (Amps) | Contact Finish - Mating | Backshell Material, Plating | Shielding | Orientation | Contact Material | Fastening Type | Features | Cable Opening [Max] | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Min] | Number of Positions | Shell Material | Primary Material | Insert Material | Color | Shell Size - Insert [custom] | Material Flammability Rating | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Shell Finish | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Hirose Electric Co Ltd | Free Hanging (In-Line) | 5 A | Silver | Nickel Zinc Alloy | Unshielded | Keyed | Copper Alloy | Bayonet Lock | Backshell Cable Clamp | 0.315 in | 8 mm | 5 mm | 0.197 in | 5 | Zinc Alloy | Metal | Diallyl Phthalate (DAP) | Silver | 12 | UL94 V-0 | Jack Female Sockets | 85 °C | -25 °C | 350 VAC 490 VDC | Nickel | ||
Hirose Electric Co Ltd | Free Hanging (In-Line) | 5 A | Silver | Nickel Zinc Alloy | Unshielded | Keyed | Copper Alloy | Bayonet Lock | Backshell Cable Clamp | 0.315 in | 8 mm | 5 mm | 0.197 in | 4 | Zinc Alloy | Metal | Diallyl Phthalate (DAP) | Silver | 12 | UL94 V-0 | Jack Male Pins | 85 °C | -25 °C | 500 VAC 700 VDC | Nickel | ||
 Hirose Electric Co Ltd | Free Hanging (In-Line) | 5 A | Silver | Nickel Zinc Alloy | Keyed | Copper Alloy | Bayonet Lock | Backshell Cable Clamp | 0.315 in | 8 mm | 5 mm | 0.197 in | 2 | Zinc Alloy | Metal | Diallyl Phthalate (DAP) | Silver | 12 | UL94 V-0 | Jack Female Sockets | 85 °C | -25 °C | 600 VAC 840 VDC | Nickel | 5 µm | 196.9 µin | |
 Hirose Electric Co Ltd | Free Hanging (In-Line) | 5 A | Silver | Nickel Zinc Alloy | Keyed | Copper Alloy | Bayonet Lock | Backshell Cable Clamp | 0.315 in | 8 mm | 5 mm | 0.197 in | 5 | Zinc Alloy | Metal | Diallyl Phthalate (DAP) | Silver | 12 | UL94 V-0 | Jack Male Pins | 85 °C | -25 °C | 350 VAC 490 VDC | Nickel | 2 µm | 78.7 µin | |
Hirose Electric Co Ltd | Free Hanging (In-Line) | 5 A | Silver | Nickel Zinc Alloy | Unshielded | Keyed | Copper Alloy | Bayonet Lock | Backshell Cable Clamp | 0.315 in | 8 mm | 5 mm | 0.197 in | 2 | Zinc Alloy | Metal | Diallyl Phthalate (DAP) | Silver | 12 | UL94 V-0 | Jack Male Pins | 85 °C | -25 °C | 600 VAC 840 VDC | Nickel | ||
 Hirose Electric Co Ltd | Free Hanging (In-Line) | 5 A | Silver | Nickel Zinc Alloy | Keyed | Copper Alloy | Bayonet Lock | Backshell Cable Clamp | 0.315 in | 8 mm | 5 mm | 0.197 in | 7 | Zinc Alloy | Metal | Diallyl Phthalate (DAP) | Silver | 12 | UL94 V-0 | Jack Male Pins | 85 °C | -25 °C | 350 VAC 490 VDC | Nickel | 2 µm | 78.7 µin | |
 Hirose Electric Co Ltd | Free Hanging (In-Line) | 5 A | Silver | Nickel Zinc Alloy | Keyed | Copper Alloy | Bayonet Lock | Backshell Cable Clamp | 0.315 in | 8 mm | 5 mm | 0.197 in | 7 | Zinc Alloy | Metal | Diallyl Phthalate (DAP) | Silver | 12 | UL94 V-0 | Jack Female Sockets | 85 °C | -25 °C | 350 VAC 490 VDC | Nickel | |||
Hirose Electric Co Ltd | Free Hanging (In-Line) | 5 A | Silver | Unshielded | Keyed | Bayonet Lock | Backshell Cable Clamp | 0.315 in | 8 mm | 5 mm | 0.197 in | 4 | Silver | 12 | UL94 V-0 | Jack Male Pins | 85 °C | -25 °C | 500 VAC 700 VDC |
