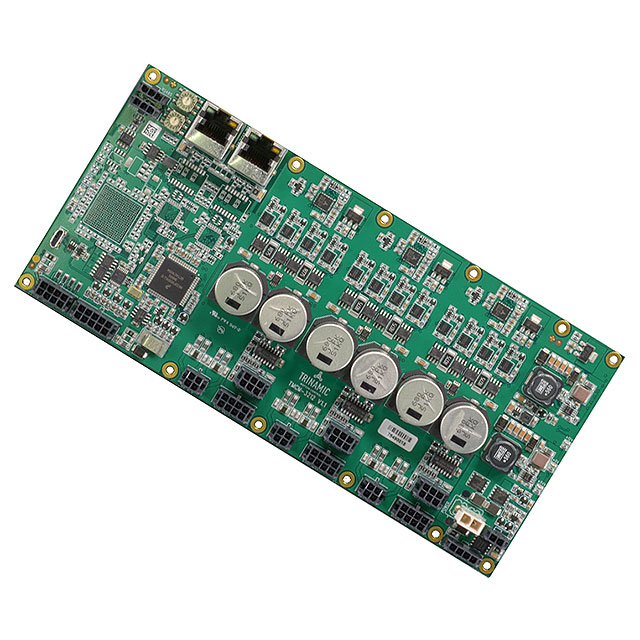

TMCM-3212 Series

3-axis stepper motor controller/driver module 11 to 53V, 3A, 256 µSteps, SixPoint ramp controller, with USB, CAN and RS485 Interface, StallGuard and CoolStep

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

3-axis stepper motor controller/driver module 11 to 53V, 3A, 256 µSteps, SixPoint ramp controller, with USB, CAN and RS485 Interface, StallGuard and CoolStep

Part	Interface	Voltage - Supply [Max]	Voltage - Supply [Min]	Current - Output	Voltage - Load [Min]	Voltage - Load [Max]	Mounting Type	Control / Drive Type	Motor Type	Number of Motors	Operating Temperature [Max]	Operating Temperature [Min]	Type
Analog Devices Inc./Maxim Integrated TMCM-3212-CANOPEN	CAN RS-485 USB	48 V	24 V	2.8 A	9 V	52.8 V	Chassis Mount	Bipolar Stepper	Stepper	3	40 °C	-30 ░C	Board
Analog Devices Inc./Maxim Integrated TMCM-3212-TMCL	CAN RS-485 USB	48 V	24 V	2.8 A	9 V	52.8 V	Chassis Mount	Bipolar Stepper	Stepper	3	40 °C	-30 ░C	Board

Catalog

3-axis stepper motor controller/driver module 11 to 53V, 3A, 256 µSteps, SixPoint ramp controller, with USB, CAN and RS485 Interface, StallGuard and CoolStep

Description
