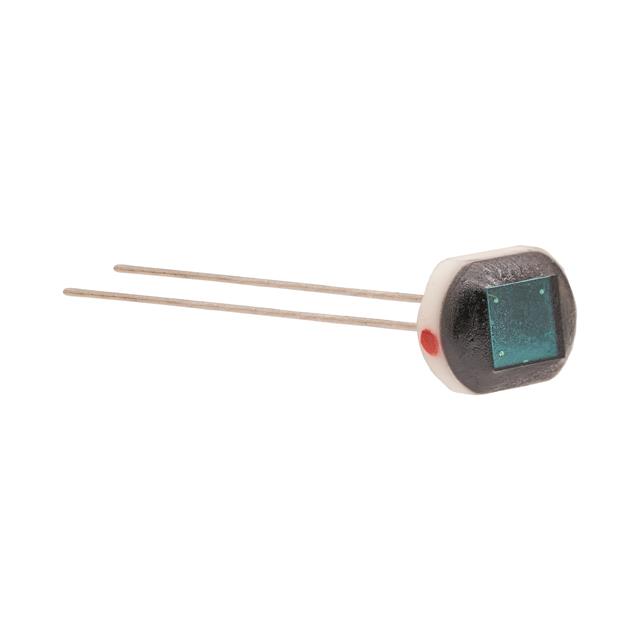

SLD-70 Series
Manufacturer: Advanced Photonix
Beta
⌘K
SENSOR PHOTODIODE 550NM RADIAL
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Viewing Angle | Package / Case | Wavelength | Spectral Range [Min] | Spectral Range [Max] | Current - Dark (Typ) | Response Time | Active Area | Voltage - DC Reverse (Vr) (Max) [Max] | Color - Enhanced | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Advanced Photonix | 85 °C | -20 ░C | 120 ° | Radial | 550 nm | 400 nm | 700 nm | 100 nA | 4 µs 6 µs | 9 mm² | 50 V | Blue/Green | User Defined |
