ATtiny13A Series

Newer Device Available ATTINY13A

Catalog

Newer Device Available ATTINY13A

Part	EEPROM Size [custom]	EEPROM Size [custom]	RAM Size	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Number of I/O	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Program Memory Type	Data Converters [custom]	Data Converters [custom]	Oscillator Type	Core Processor	Package / Case	Core Size	Speed	Program Memory Size	Supplier Device Package	Package / Case [y]	Package / Case [x]
Microchip Technology ATTINY13A-MUR	8	64	64 x 8	1.8 V	5.5 V	6 I/O	Surface Mount	85 °C	-40 °C	FLASH	10	4	Internal	AVR	20-WFQFN Exposed Pad	8-Bit	20 MHz	1 KB	20-QFN-EP (4x4)

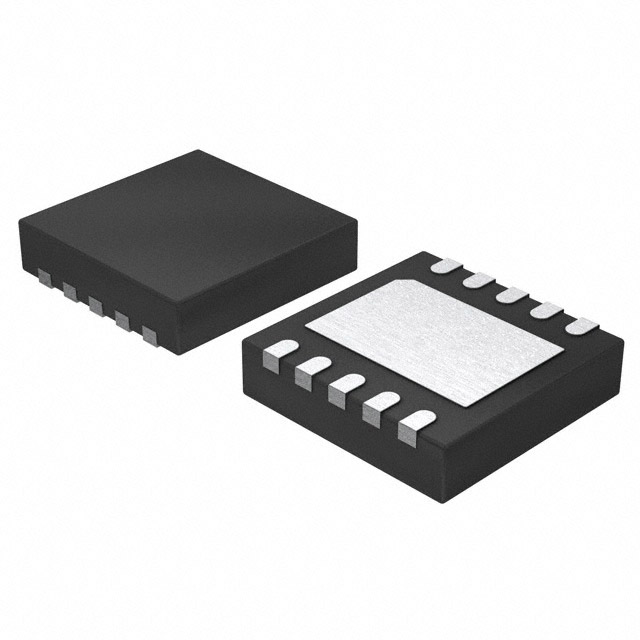

Microchip Technology ATTINY13V-10MMU	8	64	64 x 8	1.8 V	5.5 V	6 I/O	Surface Mount	85 °C	-40 °C	FLASH	10	4	Internal	AVR	10-VFDFN Exposed Pad	8-Bit	10 MHz	1 KB	10-MLP (3x3)
Microchip Technology ATTINY13-20SI	8	64	64 x 8	2.7 V	5.5 V	6 I/O	Surface Mount	85 °C	-40 °C	FLASH	10	4	Internal	AVR	8-SOIC	8-Bit	20 MHz	1 KB	8-SOIC	5.3 mm	0.209 "
Microchip Technology ATTINY13A-SS7R	8	64	64 x 8	1.8 V	5.5 V	6 I/O	Surface Mount	105 °C	-40 °C	FLASH	10	4	Internal	AVR	8-SOIC	8-Bit	20 MHz	1 KB	8-SOIC	3.9 mm	0.154 in
Microchip Technology ATTINY13A-SF	8	64	64 x 8	1.8 V	5.5 V	6 I/O	Surface Mount	125 °C	-40 °C	FLASH	10	4	Internal	AVR	8-SOIC	8-Bit	20 MHz	1 KB	8-SOIC	5.3 mm	0.209 "
Microchip Technology ATTINY13-20SSUR	8	64	64 x 8	2.7 V	5.5 V	6 I/O	Surface Mount	85 °C	-40 °C	FLASH	10	4	Internal	AVR	8-SOIC	8-Bit	20 MHz	1 KB	8-SOIC	3.9 mm	0.154 in
Microchip Technology ATTINY13-20SU	8	64	64 x 8	2.7 V	5.5 V	6 I/O	Surface Mount	85 °C	-40 °C	FLASH	10	4	Internal	AVR	8-SOIC	8-Bit	20 MHz	1 KB	8-SOIC	5.3 mm	0.209 "
Microchip Technology ATTINY13A-SUR	8	64	64 x 8	1.8 V	5.5 V	6 I/O	Surface Mount	85 °C	-40 °C	FLASH	10	4	Internal	AVR	8-SOIC	8-Bit	20 MHz	1 KB	8-SOIC	5.3 mm	0.209 "
Microchip Technology ATTINY13-20MMUR	8	64	64 x 8	2.7 V	5.5 V	6 I/O	Surface Mount	85 °C	-40 °C	FLASH	10	4	Internal	AVR	10-VFDFN Exposed Pad	8-Bit	20 MHz	1 KB	10-MLP (3x3)
Microchip Technology ATTINY13-20MMU	8	64	64 x 8	2.7 V	5.5 V	6 I/O	Surface Mount	85 °C	-40 °C	FLASH	10	4	Internal	AVR	10-VFDFN Exposed Pad	8-Bit	20 MHz	1 KB	10-MLP (3x3)

Catalog

Newer Device Available ATTINY13A

Key Features

• undefined

Description

The high-performance, low-power Microchip 8-bit AVR® RISC-based microcontroller combines 1 KB ISP Flash memory, 64B SRAM, 64B EEPROM, a 32B register file, and a 4-channel 10-bit A/D converter. The device supports a throughput of 20 MIPS at 20 MHz and operates between 2.7-5.5 volts. By executing powerful instructions in a single clock cycle, the device achieves throughputs approaching one MIPS per MHz, balancing power consumption and processing speed. Also, see the picoPower® version: ATtiny13A.
