BTA06 Series

Catalog

TRIAC, 600 V, 6 A, TO-220AB, 1.3 V, 60 A, 25 MA

Part	Configuration	Mounting Type	Supplier Device Package	Voltage - Off State	Voltage - Gate Trigger (Vgt) (Max)	Triac Type	Operating Temperature [Min]	Operating Temperature [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm)	Current - Hold (Ih) (Max) [Max]	Current - On State (It (RMS)) (Max) [Max]	Package / Case	Current - Gate Trigger (Igt) (Max) [Max]
STMicroelectronics BTA06-600CRG	Single	Through Hole	TO-220	600 V	1.3 V	Standard	-40 C	125 °C	60 A 63 A	25 mA	6 A	TO-220-3	25 mA

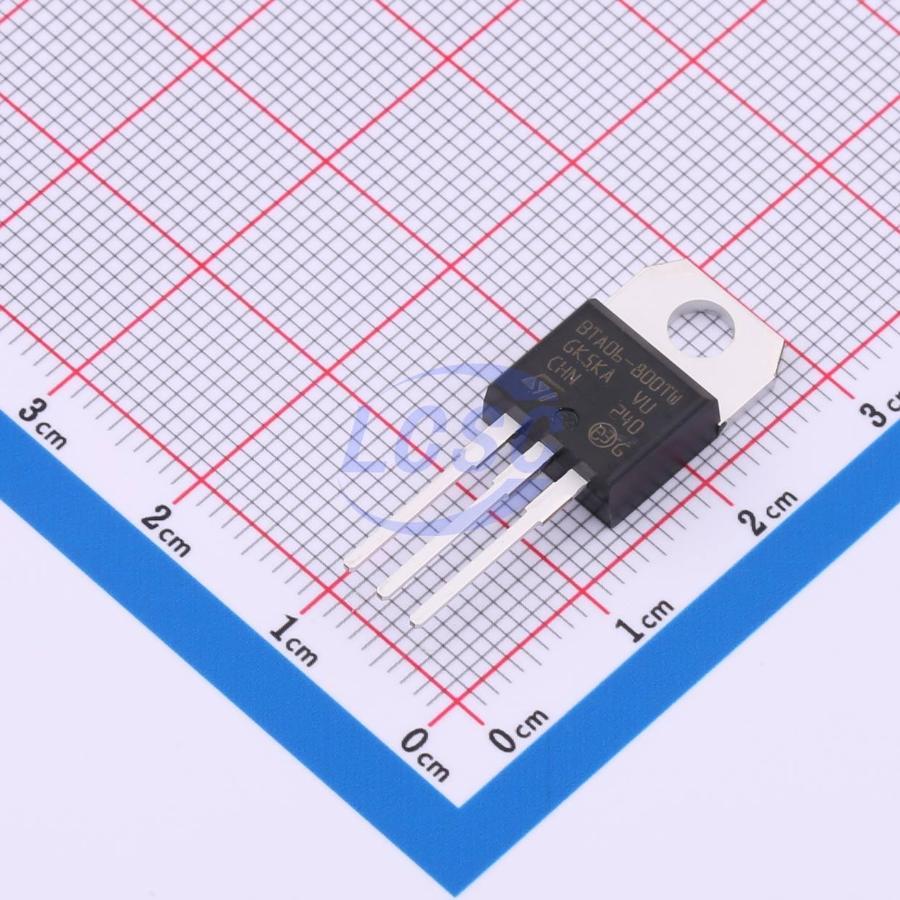

STMicroelectronics BTA06-800TWRG	Single	Through Hole	TO-220	800 V	1.3 V	Logic - Sensitive Gate	-40 C	125 °C	60 A 63 A	10 mA	6 A	TO-220-3	5 mA
STMicroelectronics BTA06-600TWRG	Single	Through Hole	TO-220	600 V	1.3 V	Logic - Sensitive Gate	-40 C	125 °C	60 A 63 A	10 mA	6 A	TO-220-3	5 mA
STMicroelectronics BTA06-600TRG	Single	Through Hole	TO-220	600 V	1.3 V	Logic - Sensitive Gate	-40 C	125 °C	60 A 63 A	10 mA	6 A	TO-220-3	5 mA
STMicroelectronics BTA06-800BWRG	Single	Through Hole	TO-220	800 V	1.3 V	Alternistor - Snubberless	-40 C	125 °C	60 A 63 A	50 mA	6 A	TO-220-3	50 mA
STMicroelectronics BTA06-800CWRG	Single	Through Hole	TO-220	800 V	1.3 V	Alternistor - Snubberless	-40 C	125 °C	60 A 63 A	35 mA	6 A	TO-220-3	35 mA
STMicroelectronics BTA06-400TRG	Single	Through Hole	TO-220	400 V	1.3 V	Logic - Sensitive Gate	-40 C	125 °C	60 A 63 A	10 mA	6 A	TO-220-3	5 mA
STMicroelectronics BTA06-400CRG	Single	Through Hole	TO-220	400 V	1.3 V	Standard	-40 C	125 °C	60 A 63 A	25 mA	6 A	TO-220-3	25 mA
