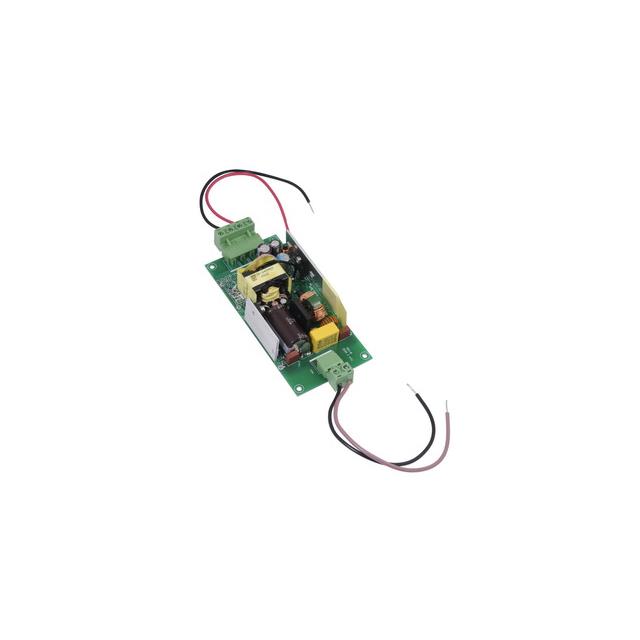

AMEOC30 Series
Manufacturer: aimtec
Beta
⌘K
AC/DC CONVERTER +/-12V 30W
| Part | Standard Number | Type | Voltage - Isolation | Operating Temperature [Min] | Operating Temperature [Max] | Features | Voltage - Output 2 | Efficiency | Voltage - Output 1 | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Power (Watts) | Voltage - Input [Min] | Voltage - Input [Max] | Number of Outputs | Current - Output 1 | Minimum Load Required | Applications | Current - Output 2 | Mounting Type | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 aimtec | 60601-1 60950-1 | Open Frame | 4000 V | -40 °C | 85 °C | Universal Input | -12 V | 84 % | 12 V | 58.9 mm | 124.5 mm | 4.9 in | 0.98 in | 2.32 " | 24.9 mm | 30 Watts | 90 VAC 130 VDC | 264 VAC 370 VDC | 2 | 1.25 A | ITE (Commercial) Medical | 1.25 A | Chassis Mount | CB CE cURus |
