ADA4841-1 Series

Low Power, Low Noise and Distortion, Rail-to-Rail Output Amplifier

Catalog

Low Power, Low Noise and Distortion, Rail-to-Rail Output Amplifier

Part	Current - Supply	Output Type	Voltage - Supply Span (Min) [Min]	Current - Output / Channel	Amplifier Type	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case [y]	Package / Case [x]	Mounting Type	Slew Rate	-3db Bandwidth	Current - Input Bias	Number of Circuits	Voltage - Input Offset	Voltage - Supply Span (Max) [Max]	Supplier Device Package	Package / Case [custom]	Package / Case	Board Type	Utilized IC / Part	Channels per IC	Supplied Contents
Analog Devices ADA4841-1YRZ-RL	1.5 mA	Rail-to-Rail	2.7 V	60 mA	Voltage Feedback	125 °C	-40 °C	8-SOIC	3.9 mm	0.154 in	Surface Mount	13 V/µs	80 MHz	3 µA	1	40 µV	12 V	8-SOIC
Analog Devices ADA4841-2YRMZ	1.2 mA	Rail-to-Rail	2.7 V	60 mA	General Purpose	125 °C	-40 °C	8-MSOP 8-TSSOP			Surface Mount	13 V/µs	80 MHz	3 µA	2	40 µV	12 V	8-MSOP	0.118 in	3 mm
Analog Devices ADA4841-1YRZ	1.5 mA	Rail-to-Rail	2.7 V	60 mA	Voltage Feedback	125 °C	-40 °C	8-SOIC	3.9 mm	0.154 in	Surface Mount	13 V/µs	80 MHz	3 µA	1	40 µV	12 V	8-SOIC
Analog Devices ADA4841-2YRZ-R7	1.2 mA	Rail-to-Rail	2.7 V	60 mA	General Purpose	125 °C	-40 °C	8-SOIC	3.9 mm	0.154 in	Surface Mount	13 V/µs	80 MHz	3 µA	2	40 µV	12 V	8-SOIC
Analog Devices ADA4841-1YRJZ-RL	1.5 mA	Rail-to-Rail	2.7 V	60 mA	Voltage Feedback	125 °C	-40 °C	SOT-23-6			Surface Mount	13 V/µs	80 MHz	3 µA	1	40 µV	12 V	SOT-23-6
Analog Devices ADA4841-1YRJZ-R7	1.5 mA	Rail-to-Rail	2.7 V	60 mA	Voltage Feedback	125 °C	-40 °C	SOT-23-6			Surface Mount	13 V/µs	80 MHz	3 µA	1	40 µV	12 V	SOT-23-6
Analog Devices ADA4841-2YRMZ-R7	1.2 mA	Rail-to-Rail	2.7 V	60 mA	General Purpose	125 °C	-40 °C	8-MSOP 8-TSSOP			Surface Mount	13 V/µs	80 MHz	3 µA	2	40 µV	12 V	8-MSOP	0.118 in	3 mm

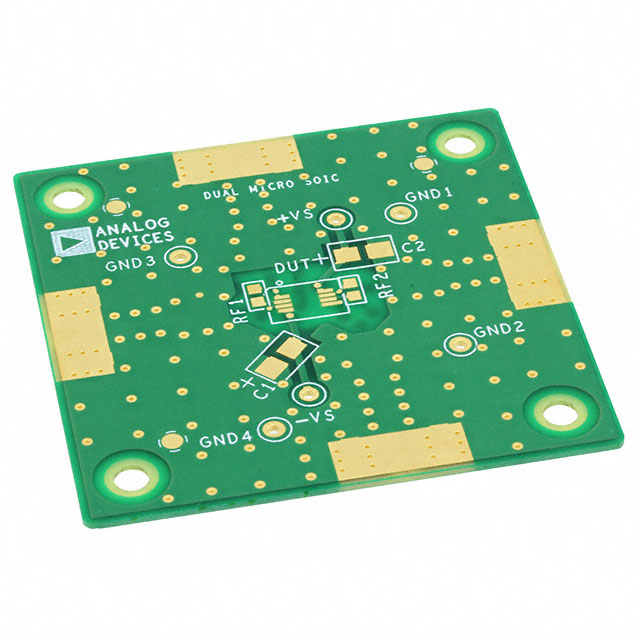

Analog Devices ADA4841-2YRM-EBZ					Voltage Feedback																Bare (Unpopulated)	8-MSOP Package	2 - Dual	Board(s)

Catalog

Low Power, Low Noise and Distortion, Rail-to-Rail Output Amplifier

Key Features

• Low power: 1.1 mA/amp

• Low wideband noise2.1 nV/√Hz1.4 pA/√Hz

• 2.1 nV/√Hz

• 1.4 pA/√Hz

• Low 1/f noise7 nV/√Hz @ 10 Hz13 pA/√Hz @ 10 Hz

• 7 nV/√Hz @ 10 Hz

• 13 pA/√Hz @ 10 Hz

• Low distortion: −105 dBc @ 100 kHz, VO= 2 V p-p

• High speed80 MHz, −3 dB bandwidth (G = +1)12 V/μs slew rate175 ns settling time to 0.1%

• 80 MHz, −3 dB bandwidth (G = +1)

• 12 V/μs slew rate

• 175 ns settling time to 0.1%

• Low offset voltage: 0.3 mV maximum

• Rail-to-rail output

• Power down

• Wide supply range: 2.7 V to 12 V

Description

The ADA4841-1 is a unity gain stable, low noise and distortion, rail-to-rail output amplifier that has a quiescent current of 1.5 mA maximum. In spite of its low power consumption, this amplifier offers low wideband voltage noise performance of 2.1 nV/√Hz and 1.4 pA/√Hz current noise, along with excellent spurious-free dynamic range (SFDR) of −105 dBc at 100 kHz. To maintain a low noise environment at lower frequencies, the amplifier has low 1/f noise of 7 nV/√Hz and 13 pA/√Hz at 10 Hz.The ADA4841-1 output can swing to less than 50 mV of either rail. The input common-mode voltage range extends down to the negative supply. The ADA4841-1 can drive up to 10 pF of capacitive load with minimal peaking.The ADA4841-1 provides the performance required to efficiently support emerging 16-bit to 18-bit ADCs and is ideal for portable instrumentation, high channel count, industrial measurement, and medical applications. The ADA4841-1 is ideally suited to drive theAD7685/AD7686, 16-bit PulSAR ADCs.The ADA4841-1 package features RoHS compliant lead finishes. The amplifier is rated to work over the industrial temperature range (−40°C to +125°C).ApplicationsLow power, low noise signal processingBattery-powered instrumentation16-bit PulSAR®ADC drivers
