DC851A Series

Catalog

BOARD EVAL LTC2293IUP

Part	Supplied Contents	Input Range [Min]	Input Range [Max]	Data Interface	Utilized IC / Part	Number of A/D Converters	Power (Typ) @ Conditions	Sampling Rate (Per Second)	Number of Bits	Number of Bits [custom]	Sampling Rate (Per Second)

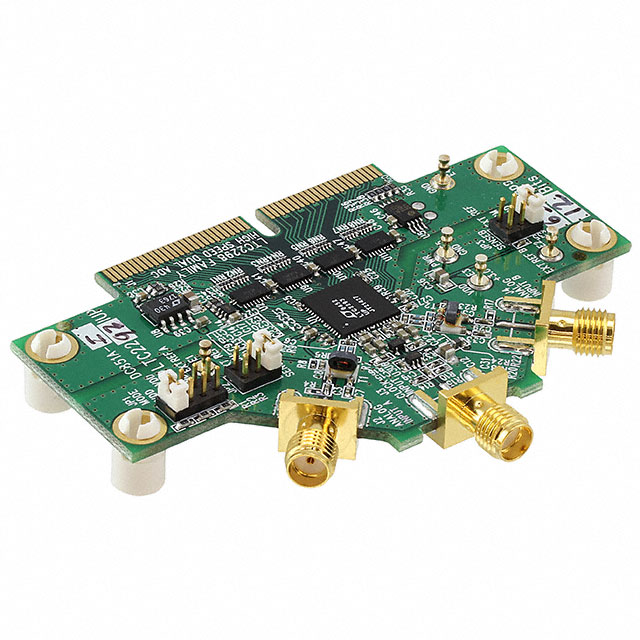

Analog Devices DC851A-I	Board(s)	1 Vpp	2 Vpp	Parallel	LTC2293	2	400 mW	65 M	12 bits

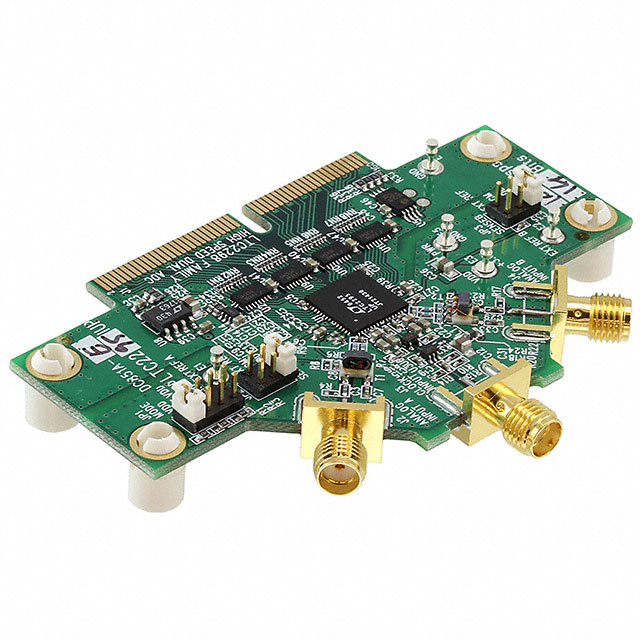

Analog Devices DC851A-E	Board(s)	1 Vpp	2 Vpp	Parallel	LTC2295	2	120 mW	10 M	14

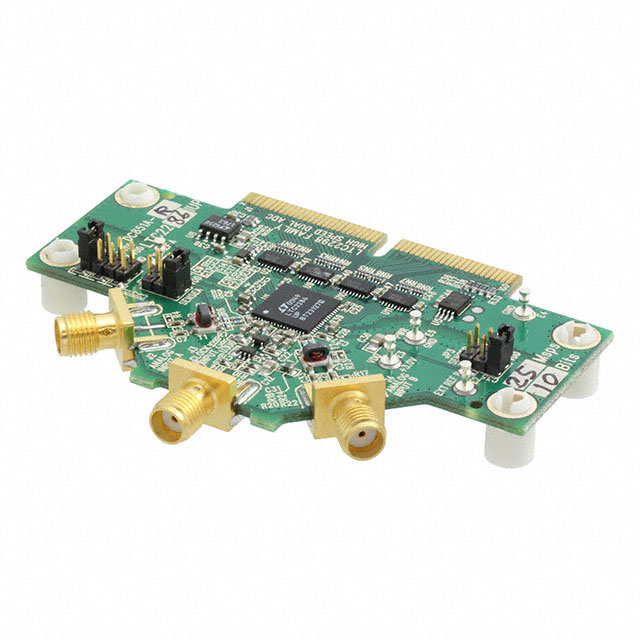

Analog Devices DC851A-R	Board(s)	1 Vpp	2 Vpp	Parallel	LTC2286	2		25 M		10
Analog Devices DC851A-H	Board(s)	1 Vpp	2 Vpp	Parallel	LTC2294	2		80 M	12 bits

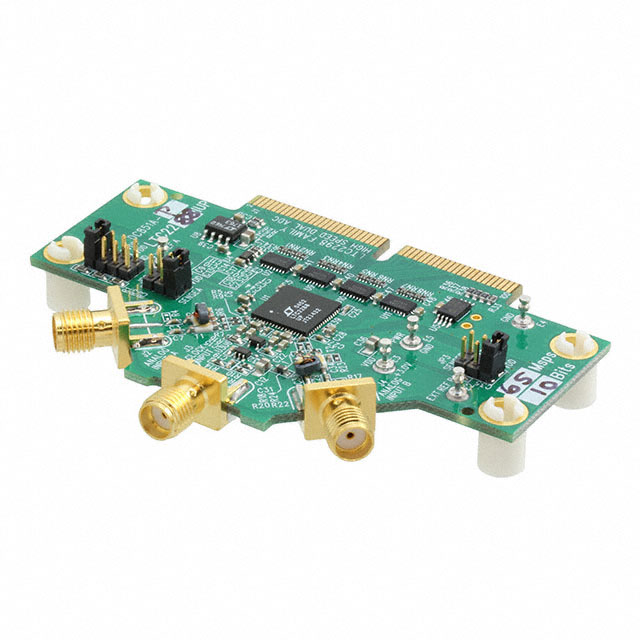

Analog Devices DC851A-P	Board(s)	1 Vpp	2 Vpp	Parallel	LTC2288	2	400 mW	65 M		10

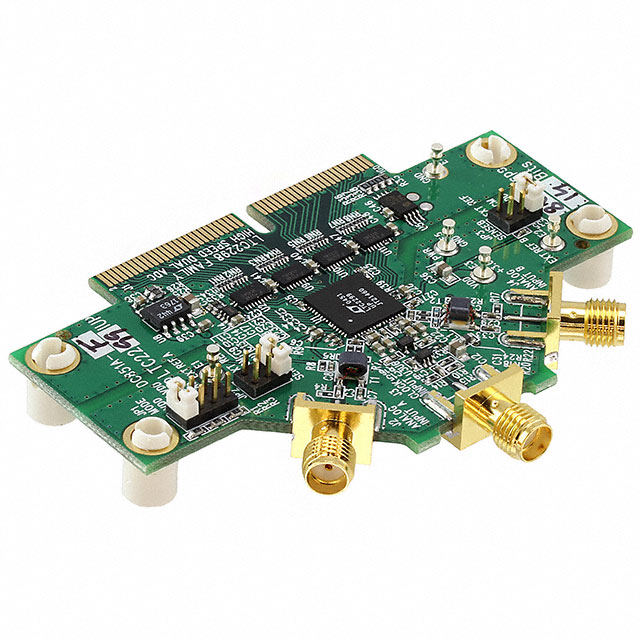

Analog Devices DC851A-F	Board(s)	1 Vpp	2 Vpp	Parallel	LTC2299	2	444 mW	80 M	14

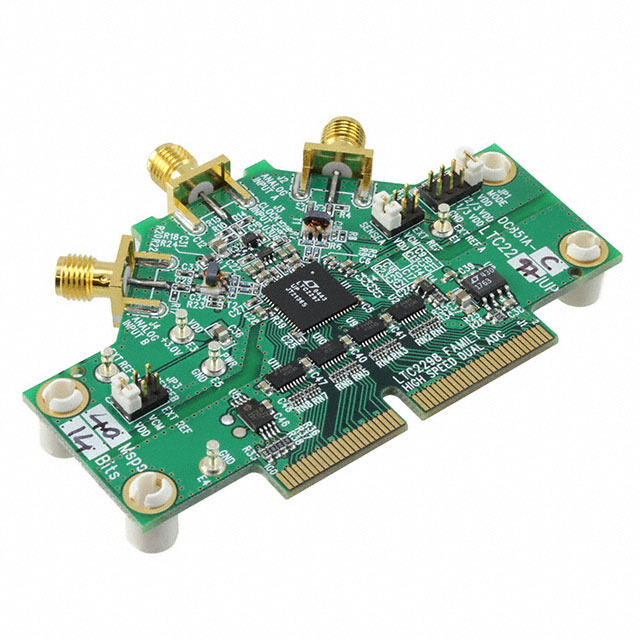

Analog Devices DC851A-C	Board(s)	1 Vpp	2 Vpp	Parallel	LTC2297	2	235 mW		14		40M
