UUB Series
Manufacturer: Nichicon
Beta
⌘K

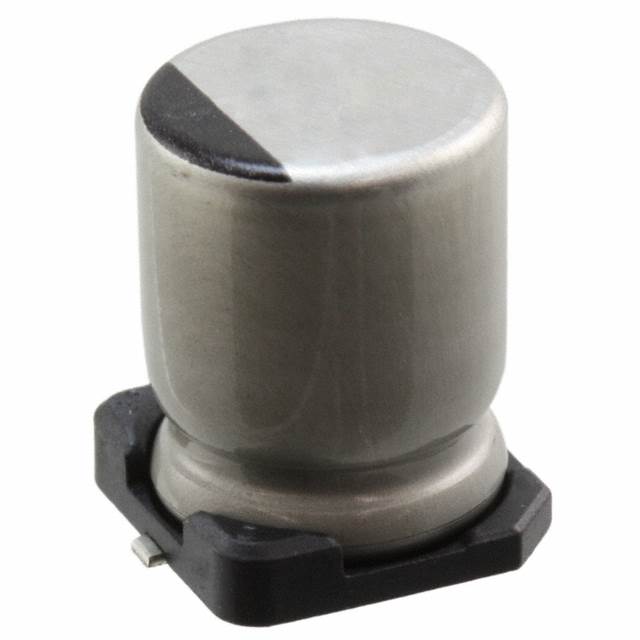

SMD ALUMINUM ELECTROLYTIC CAPACITOR, RADIAL CAN - SMD, 1 ΜF, 400 V, 2000 HOURS @ 85°C, POLAR
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Ratings | Surface Mount Land Size [x] | Surface Mount Land Size [y] | Surface Mount Land Size [x] | Surface Mount Land Size [y] | Size / Dimension [diameter] | Size / Dimension [diameter] | Mounting Type | Package / Case | Ripple Current @ High Frequency | Ripple Current @ Low Frequency | Voltage - Rated | Tolerance | Capacitance | Applications | Lifetime @ Temp. | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nichicon | 125 °C | -40 C | AEC-Q200 | 8.3 mm | 8.3 mm | 0.327 in | 0.327 in | 0.315 in | 8 mm | Surface Mount | Radial Can - SMD | 39 mA | 26 mA | 400 V | 20 % | 1 µF | General Purpose | 2000 Hrs | 0.413 " | 10.5 mm |
 Nichicon | 125 °C | -40 C | AEC-Q200 | 10.3 mm | 10.3 mm | 0.406 " | 0.406 in | 0.394 in | 10 mm | Surface Mount | Radial Can - SMD | 88.5 mA | 59 mA | 200 VDC | 20 % | 6.8 µF | General Purpose | 2000 Hrs | 0.413 " | 10.5 mm |
