0.9 µA, High-Precision Op Amps
Key Features
• * Rail-to-Rail Input and Output
• * Unity gain stable
• * Low operating voltage
• * Low quiescent current
• * Low offset voltage
• * AEC-Q100 Grade 1
Description
AI

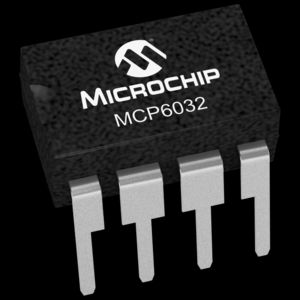

The MCP6032 operational amplifier (op amp) has a gain bandwidth of 10 kHz with a low typical operating current of 900 nA and an offset voltage that is less than 150 uV. The MCP6032 uses Microchip's advanced CMOS technology, which provides low bias current, high-speed operation, high open-loop gain and rail-to-rail input and output swing. The MCP6032 operates with a single supply voltage that can be as low as 1.8V, while drawing less than 1 uA of quiescent current. The MCP6032 is available in standard 8-lead SOIC and MSOP packages. AEC-Q100 Grade 1 qualification is available for this device.
**[Check out the MCP6031 PHOTODIODE PICTAIL PLUS demo board here!](http://www.microchipdirect.com/ProductSearch.aspx?Keywords=MCP6031DM-PTPLS)**
