SH Series

Thermoelectric Peltier Modules SH14 125 06 L1 W4.5 40 x 40 x 3.8mm

Manufacturer: Tark Thermal Solutions

Catalog

Thermoelectric Peltier Modules SH14 125 06 L1 W4.5 40 x 40 x 3.8mm

Catalog

Thermoelectric Peltier Modules SH14 125 06 L1 W4.5 40 x 40 x 3.8mm

Part	Qmax @ Th	Delta Tmax @ Th	Voltage - Max [Max]	Operating Temperature	Resistance	Current - Max [Max]	Size / Dimension [y]	Size / Dimension [x]	Height [z]	Features	Number of Stages	Type

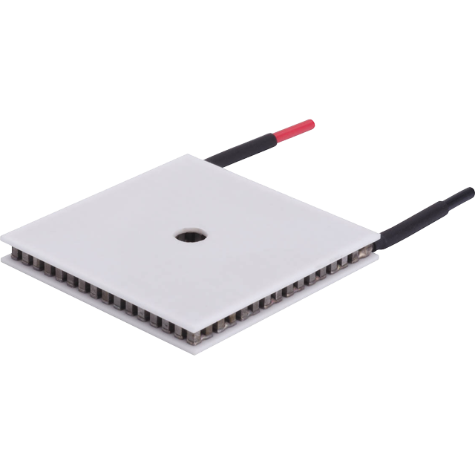

Tark Thermal Solutions 430478-502	50.4 W	67 °C	14.3 V	80 °C	2.21 Ohms	6 A	39.88 mm	39.88 mm	3.81 mm	Lead Wires Non-Sealed	1	TEC (Thermoelectric Cooler)
Tark Thermal Solutions 71020-513	72.7 W	67 °C	14.1 V	80 °C	1.53 Ohms	8.5 A	39.88 mm	39.88 mm	3.33 mm	Lead Wires Sealed - Epoxy	1	TEC (Thermoelectric Cooler)
Tark Thermal Solutions 430533-501	19.7 W	67 °C	10.6 V	80 °C	3.25 Ohms	3 A	30 mm	30 mm	3.58 mm	Lead Wires Sealed - Epoxy	1	TEC (Thermoelectric Cooler)
Tark Thermal Solutions 71020-501	72.7 W	67 °C	14.1 V	80 °C	1.53 Ohms	8.5 A	39.88 mm	39.88 mm	3.33 mm	Lead Wires Sealed - Silicone RTV	1	TEC (Thermoelectric Cooler)
