STG3684 Series

Catalog

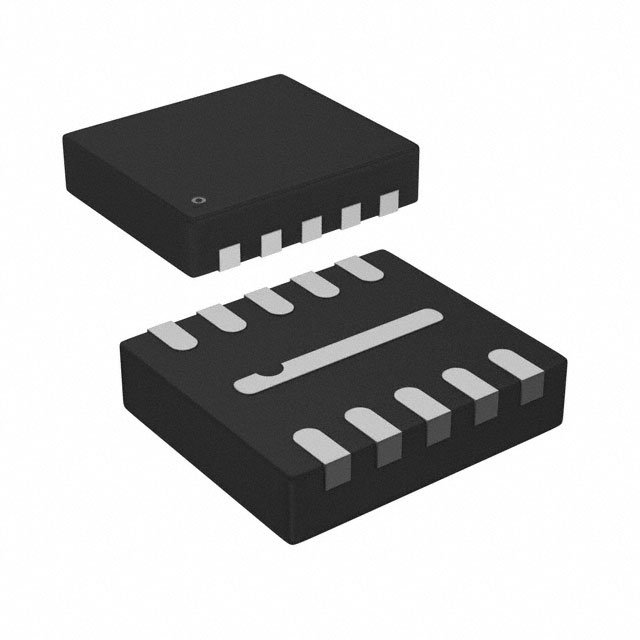

IC SWITCH SPDT X 2 500MOHM 10DFN

Part	Switch Circuit	Supplier Device Package	Current - Leakage (IS(off)) (Max)	Multiplexer/Demultiplexer Circuit	Switch Time (Ton, Toff) (Max) [custom]	Switch Time (Ton, Toff) (Max) [custom]	On-State Resistance (Max) [Max]	Crosstalk	Channel-to-Channel Matching (ΔRon)	-3db Bandwidth	Charge Injection	Number of Circuits	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply, Single (V+) [Max]	Voltage - Supply, Single (V+) [Min]	Package / Case	Mounting Type	Current - Leakage (IS(off)) (Max) [Max]	Supplier Device Package [y]	Supplier Device Package [x]
STMicroelectronics STG3684ADTR	SPDT	10-DFN (2.3x2)	20 nA	2:1	55 ns	30 ns	500 mOhm	-72 dB	100 mOhm	55 MHz	49 pC	2	85 C	-40 ¯C	4.3 V	1.65 V	10-UFDFN Exposed Pad	Surface Mount
STMicroelectronics STG3684QTR	SPDT	16-QFN (3x3)		2:1	50 ns	30 ns	500 mOhm	-54 dB	60 mOhm	50 MHz	35 pC	2	85 C	-40 ¯C	4.3 V	1.65 V	16-VFQFN Exposed Pad	Surface Mount	10 nA

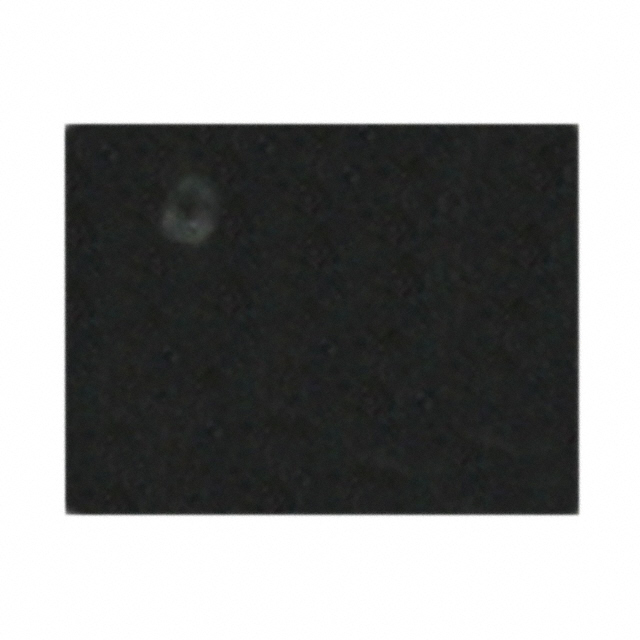

STMicroelectronics STG3684AUTR	SPDT	10-QFN	20 nA	2:1	55 ns	30 ns	500 mOhm	-72 dB	100 mOhm	55 MHz	49 pC	2	85 C	-40 ¯C	4.3 V	1.65 V	10-UFQFN	Surface Mount		1.4	1.8
