ST30248 Series
Manufacturer: Hammond Manufacturing
Beta
⌘K

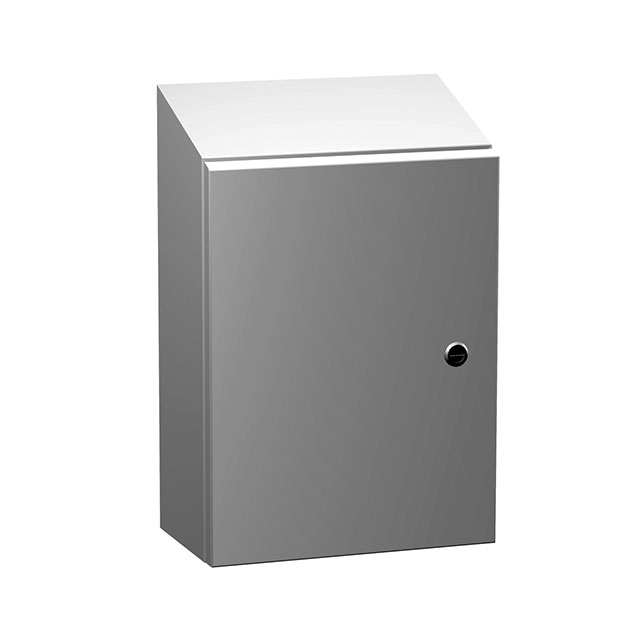

LIGHT GRAY STEEL WALL MOUNT TYPE 4 ENCLOSURE
| Part | Weight [custom] | Weight [custom] | Color | Container Type | Design | Height | Height | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Material | Area (L x W) [custom] | Area (L x W) [custom] | Ratings | Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hammond Manufacturing | 54 lbs | 24.5 kg | Gray | Box | Hinged Door Slanted Top | 203.2 mm | 8 in | 32.9 " | 609.6 mm | 24 in | 835.66 mm | Metal Steel | 5097 cm² | 790 in² | IP66 NEMA 12 NEMA 13 NEMA 3R NEMA 4 UL-508 | 16 Gauge |
