L99MOD51 Series

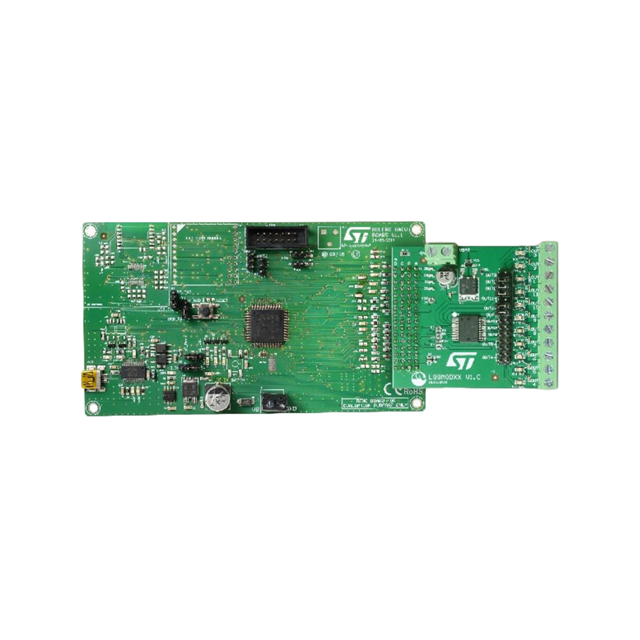

EVAL-L99MOD51XP Evaluation board

Catalog

EVAL-L99MOD51XP Evaluation board

Part	Supplier Device Package	Grade	Mounting Type	Qualification	Type	Package / Case	Package / Case	Package / Case	Supplied Contents	Utilized IC / Part	Primary Attributes	Function	Contents
STMicroelectronics L99MOD51XPTR	PowerSSO-36 EPD	Automotive	Surface Mount	AEC-Q100	Multi-Output Driver	7.5 mm	36-PowerFSOP	0.295 "
STMicroelectronics EVAL-L99MOD51XP					Power Management				Board(s)	L99MOD51XP	3 Half Bridge Drivers	Automotive	Board(s)

Catalog

EVAL-L99MOD51XP Evaluation board

Description

The L99MOD51XP is a microcontroller-driven multifunctional actuator driver for automotive applications. Up to two DC motors and two grounded resistive loads can be driven with three half bridges and two hide-side drivers. The integrated SPI controls all operation modes (forward, reverse, brake and high impedance). Also, all diagnostic information is available via SPI read.
