Low Power Blackfin with Advanced Embedded Connectivity
Key Features
• Up to 400 MHz high performance Blackfin processorTwo 16-bit MACs, two 40-bit ALUs, four 8-bit video ALUs, 40-bit shifterRISC-like register and instruction model for ease of programming and compiler-friendly supportAdvanced debug, trace, and performance monitoring
• Wide range of operating voltages
• Qualified for Automotive Applications

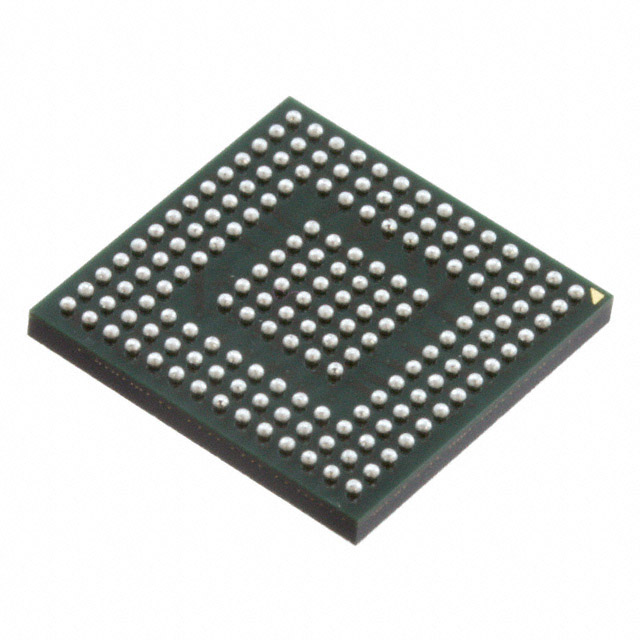

• 168-ball CSP_BGA or 176-lead LQFP_EP (with exposed pad)
• See datasheet for additional features
Description
AI
TheADSP-BF512/ADSP-BF514/ADSP-BF516/ ADSP-BF518 processors are members of the Blackfin®family of products, incorporating the Analog Devices/Intel Micro Signal Architecture (MSA). Blackfin processors combine a dual-MAC state-of-the-art signal processing engine, the advantages of a clean, orthogonal RISC-like microprocessor instruction set, and single-instruction, multiple-data (SIMD) multimedia capabilities into a single instruction-set architecture.The processors are completely code compatible with other Blackfin processors.MEMORY116K bytes of on-chip memoryExternal memory controller with glueless support for SDRAM and asynchronous 8-bit and 16-bit memoriesFlexible booting options from OTP memory, external SPI/parallel memories, or from SPI/UART host devicesCode security with Lockbox secure technologyOne-time-programmable (OTP) memoryMemory management unit providing memory protectionSee datasheet for additional features
