ADF4007 Series

Catalog

IC DIVIDER/PLL SYNTHESZR 20LFCSP

Part	Ratio - Input:Output	Input	Divider/Multiplier	Output	Package / Case	Voltage - Supply [Min]	Voltage - Supply [Max]	Differential - Input:Output	Supplier Device Package	Mounting Type	Frequency - Max [Max]	Type	Number of Circuits	Operating Temperature [Max]	Operating Temperature [Min]	Function	Primary Attributes	Utilized IC / Part	Supplied Contents	Secondary Attributes	Contents
Analog Devices ADF4007BCP	2:1	CMOS	Yes/No	Clock	20-WFQFN Exposed Pad CSP	2.7 V	3.3 V	Yes/No	20-LFCSP (4x4)	Surface Mount	7.5 GHz	Clock/Frequency Synthesizer (RF)
Analog Devices ADF4007BCPZ	2:1	CMOS TTL	Yes/No	Clock	20-WFQFN Exposed Pad CSP	2.7 V	3.3 V	Yes/No	20-LFCSP (4x4)	Surface Mount	7.5 GHz	Clock/Frequency Synthesizer (RF)	1	85 °C	-40 °C

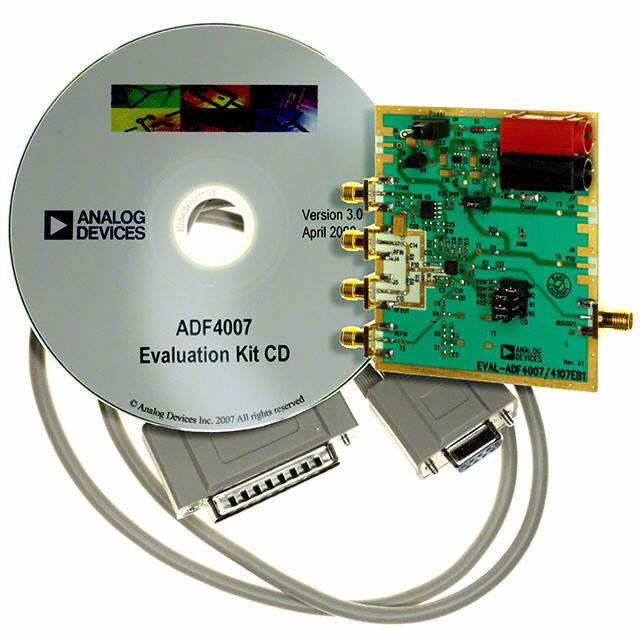

Analog Devices EVAL-ADF4007EBZ1												Timing				Frequency Synthesizer	Single Integer-N PLL	ADF4007	Board(s) Cable(s)	7.5 GHz	Board(s) Cable(s)
Analog Devices ADF4007BCPZ-RL7	2:1	CMOS TTL	Yes/No	Clock	20-WFQFN Exposed Pad CSP	2.7 V	3.3 V	Yes/No	20-LFCSP (4x4)	Surface Mount	7.5 GHz	Clock/Frequency Synthesizer (RF)	1	85 °C	-40 °C
