4715MS Series

Catalog

FAN AXIAL 119X38MM 230VAC TERM

Part	Material - Frame	Material - Blade	Lifetime @ Temp.	Air Flow	Air Flow	Current Rating (Amps)	Width [y]	Voltage - Rated	Noise	Termination	Fan Type	Static Pressure	Static Pressure	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Weight [custom]	Weight [custom]	Power (Watts)	Bearing Type	RPM	Size / Dimension	Size / Dimension [x]	Size / Dimension [y]	Static Pressure	Termination

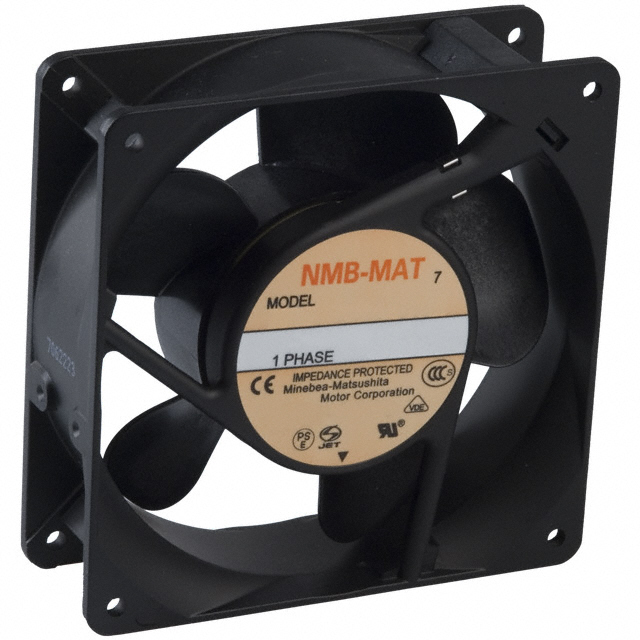

NMB TECHNOLOGIES 4715MS-23T-B10-A00	Aluminum	Polycarbonate (PC) Fiberglass Reinforced	50000 Hrs	49.4 CFM	1.38 m³/min	45 mA	38 mm	230 VAC	28 dB	2	Tubeaxial	0.059 in H2O	14.7 Pa	70 °C	-10 °C	CE CSA TUV UL VDE	544.3 g	1.2 lbs	6 W	Ball	1450 RPM	Square	119 mm	119 mm
NMB TECHNOLOGIES 4715MS-23T-B30-A00	Aluminum	Polycarbonate (PC) Fiberglass Reinforced	50000 Hrs	88.2 CFM	2.47 m³/min		38 mm	230 VAC	37 dB	2	Tubeaxial	0.208 in H2O	51.9 Pa	70 °C	-10 °C	CE CSA TUV UL VDE	544.3 g	1.2 lbs	11 W	Ball	2600 RPM	Square	119 mm	119 mm
NMB TECHNOLOGIES 4715MS-22T-B40-B00	Aluminum	Polycarbonate (PC) Fiberglass Reinforced	50000 Hrs	95 CFM	2.66 m³/min	100 mA	38 mm	220 VAC	39 dB(A)	2	Tubeaxial	0.255 in H2O	63.7 Pa	70 °C	-10 °C	CE CSA TUV UL VDE	544.3 g	1.2 lbs	12 W	Ball	2750 RPM	Square	119 mm	119 mm
NMB TECHNOLOGIES 4715MS-20T-B50-B00	Aluminum	Polycarbonate (PC) Fiberglass Reinforced	50000 Hrs	102 CFM	2.86 m³/min	120 mA	38 mm	200 VAC	41 dB	2	Tubeaxial		76.4 Pa	70 °C	-10 °C	CE CSA TUV UL VDE	544.3 g	1.2 lbs	13 W	Ball	2900 RPM	Square	119 mm	119 mm	0.306 in H2O
NMB TECHNOLOGIES 4715MS-23T-B5A-A00	Aluminum	Polycarbonate (PC) Fiberglass Reinforced	50000 Hrs	102 CFM	2.86 m³/min	100 mA	38 mm	230 VAC	41 dB	2	Tubeaxial	0.283 in H2O	70.5 Pa	70 °C	-10 °C	CE CSA TUV UL VDE	544.3 g	1.2 lbs	14 W	Ball	2900 RPM	Square	119 mm	119 mm
NMB TECHNOLOGIES 4715MS-22T-B10-B00	Aluminum	Polycarbonate (PC) Fiberglass Reinforced	50000 Hrs	49.4 CFM	1.38 m³/min	40 mA	38 mm	220 VAC	28 dB	2	Tubeaxial	0.059 in H2O	14.7 Pa	70 °C	-10 °C	CE CSA TUV UL VDE	544.3 g	1.2 lbs	5.5 W	Ball	1450 RPM	Square	119 mm	119 mm
NMB TECHNOLOGIES 4715MS-24T-B20-A00	Aluminum	Polycarbonate (PC) Fiberglass Reinforced	50000 Hrs	67 CFM	1.88 m³/min	60 mA	38 mm	240 VAC	30 dB	2	Tubeaxial	0.098 in H2O	24.5 Pa	70 °C	-10 °C	CE CSA TUV UL VDE	544.3 g	1.2 lbs	8 W	Ball	1900 RPM	Square	119 mm	119 mm
NMB TECHNOLOGIES 4715MS-12T-B3A-A00	Aluminum	Polycarbonate (PC) Fiberglass Reinforced	50000 Hrs	88.2 CFM	2.47 m³/min	140 mA	38 mm	115 VAC	37 dB	2	Tubeaxial	0.2 in H2O	49.8 Pa	70 °C	-10 °C	CE CSA TUV UL VDE	544.3 g	1.2 lbs	10 W	Ball	2600 RPM	Square	119 mm	119 mm
NMB TECHNOLOGIES 4715MS-12T-B40-A00	Aluminum	Polycarbonate (PC) Fiberglass Reinforced	50000 Hrs	95 CFM	2.66 m³/min	190 mA	38 mm	115 VAC	39 dB(A)	2	Tubeaxial	0.259 in H2O	64.6 Pa	70 °C	-10 °C	CE CSA TUV UL VDE	544.3 g	1.2 lbs	13 W	Ball	2750 RPM	Square	119 mm	119 mm

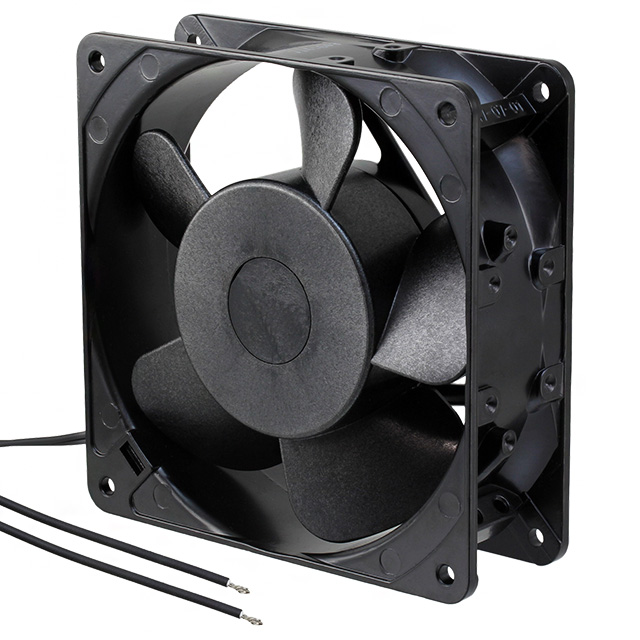

NMB TECHNOLOGIES 4715MS-12W-B10-A00	Aluminum	Polycarbonate (PC) Fiberglass Reinforced	50000 Hrs	49.4 CFM	1.38 m³/min		38 mm	115 VAC	28 dB		Tubeaxial	0.066 in H2O	16.6 Pa	70 °C	-10 °C	CE CSA TUV UL VDE	544.3 g	1.2 lbs	5.5 W	Ball	1450 RPM	Square	119 mm	119 mm		2 Wire Leads
