661-009 Series
Manufacturer: EDAC Inc.
Beta
⌘K

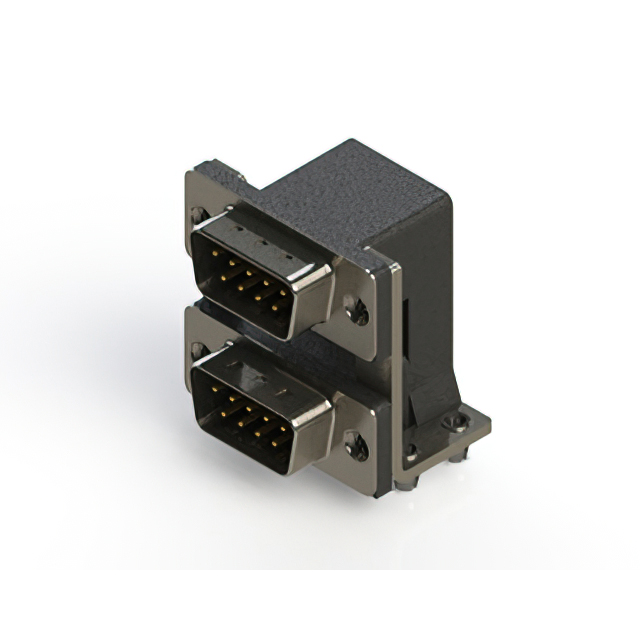

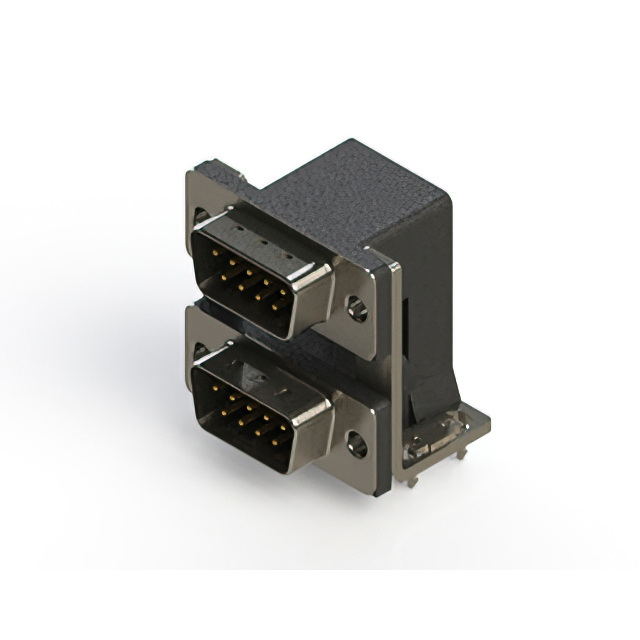

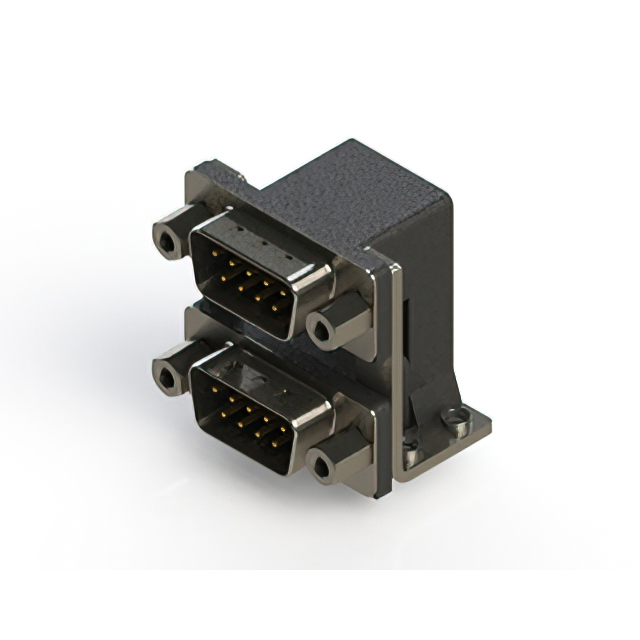

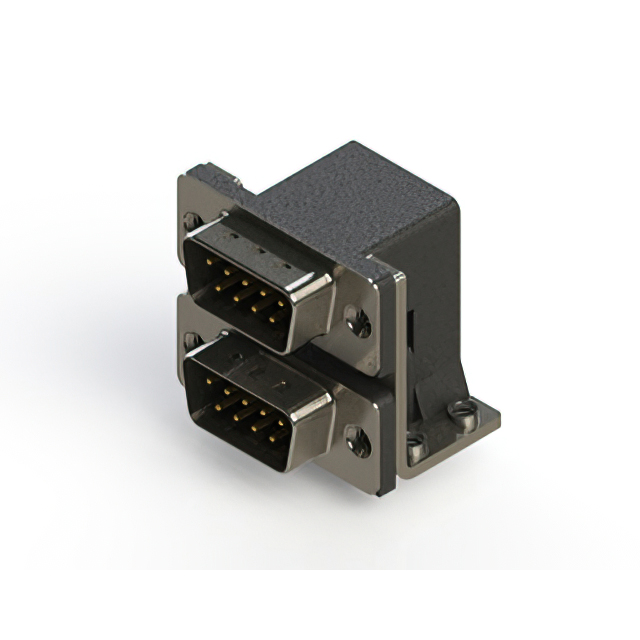

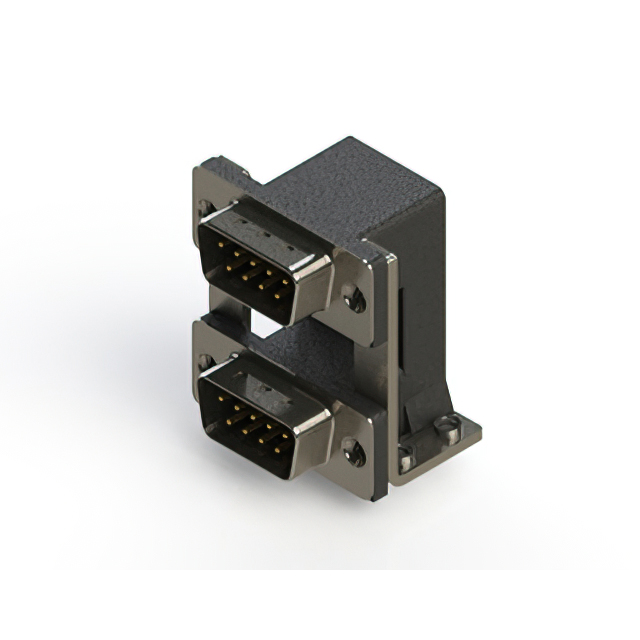

661 SERIES RIGHT ANGLE DUAL D-SU
| Part | Dielectric Material | Color | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Shell Size, Connector Layout | Connector Type | Contact Finish | Termination | Flange Feature | Flange Feature | Current Rating (Amps) | Contact Finish Thickness | Mounting Type | Material Flammability Rating | Backset Spacing | Backset Spacing | Number of Positions | Features | Shell Material, Finish | Connector Style | Contact Type | Number of Rows [custom] | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | Black | Brass | -55 C | 85 °C | 1 | Plug Male Pins | Gold | Solder | Housing/Shell | 4-40 | 3 A | Flash | Panel Mount Right Angle Through Hole | UL94 V-0 | 8.08 mm | 0.318 " | 9 | Board Lock Grounding Indents Mounting Brackets Shielded | Nickel Plated Steel | D-Sub - Stacked | Signal | 2 | ||
 EDAC Inc. | Polyester Thermoplastic | Black | Brass | -55 C | 85 °C | 1 | Plug Male Pins | Gold | Solder | Housing/Shell (Unthreaded) | 3 A | Panel Mount Right Angle Through Hole | UL94 V-0 | 8.08 mm | 0.318 " | 9 | Grounding Indents Mounting Brackets Shielded | Nickel Plated Steel | D-Sub - Stacked | Signal | 2 | 0.38 µm | 15 µin | ||
 EDAC Inc. | Polyester Thermoplastic | Black | Brass | -55 C | 85 °C | 1 | Plug Male Pins | Gold | Solder | Housing/Shell (M3) | 3 A | Panel Mount Right Angle Through Hole | UL94 V-0 | 8.08 mm | 0.318 " | 9 | Board Lock Grounding Indents Mounting Brackets Shielded | Nickel Plated Steel | D-Sub - Stacked | Signal | 2 | 0.76 Ám | 30 Áin | ||
 EDAC Inc. | Polyester Thermoplastic | Black | Brass | -55 C | 85 °C | 1 | Plug Male Pins | Gold | Solder | Housing/Shell | 4-40 | 3 A | Flash | Panel Mount Right Angle Through Hole | UL94 V-0 | 8.08 mm | 0.318 " | 9 | Grounding Indents Mounting Brackets Shielded | Nickel Plated Steel | D-Sub - Stacked | Signal | 2 | ||
 EDAC Inc. | Polyester Thermoplastic | Black | Brass | -55 C | 85 °C | 1 | Plug Male Pins | Gold | Solder | 4-40 Mating Side Female Screwlock | 3 A | Panel Mount Right Angle Through Hole | UL94 V-0 | 8.08 mm | 0.318 " | 9 | Board Lock Grounding Indents Mounting Brackets Shielded | Nickel Plated Steel | D-Sub - Stacked | Signal | 2 | 0.38 µm | 15 µin | ||
 EDAC Inc. | Polyester Thermoplastic | Black | Brass | -55 C | 85 °C | 1 | Plug Male Pins | Gold | Solder | Housing/Shell (Unthreaded) | 3 A | Panel Mount Right Angle Through Hole | UL94 V-0 | 8.08 mm | 0.318 " | 9 | Grounding Indents Mounting Brackets Shielded | Nickel Plated Steel | D-Sub - Stacked | Signal | 2 | 0.76 Ám | 30 Áin | ||
 EDAC Inc. | Polyester Thermoplastic | Black | Brass | -55 C | 85 °C | 1 | Plug Male Pins | Gold | Solder | 4-40 Mating Side Female Screwlock | 3 A | Flash | Panel Mount Right Angle Through Hole | UL94 V-0 | 8.08 mm | 0.318 " | 9 | Grounding Indents Mounting Brackets Shielded | Nickel Plated Steel | D-Sub - Stacked | Signal | 2 | |||
 EDAC Inc. | Polyester Thermoplastic | Black | Brass | -55 C | 85 °C | 1 | Plug Male Pins | Gold | Solder | Housing/Shell (M3) | 3 A | Flash | Panel Mount Right Angle Through Hole | UL94 V-0 | 8.08 mm | 0.318 " | 9 | Board Lock Grounding Indents Mounting Brackets Shielded | Nickel Plated Steel | D-Sub - Stacked | Signal | 2 | |||
 EDAC Inc. | Polyester Thermoplastic | Black | Brass | -55 C | 85 °C | 1 | Plug Male Pins | Gold | Solder | Housing/Shell | 4-40 | 3 A | Flash | Panel Mount Right Angle Through Hole | UL94 V-0 | 8.08 mm | 0.318 " | 9 | Grounding Indents Mounting Brackets Shielded | Nickel Plated Steel | D-Sub - Stacked | Signal | 2 | ||
 EDAC Inc. | Polyester Thermoplastic | Black | Brass | -55 C | 85 °C | 1 | Plug Male Pins | Gold | Solder | Housing/Shell (Unthreaded) | 3 A | Panel Mount Right Angle Through Hole | UL94 V-0 | 8.08 mm | 0.318 " | 9 | Board Lock Grounding Indents Mounting Brackets Shielded | Nickel Plated Steel | D-Sub - Stacked | Signal | 2 | 0.38 µm | 15 µin |
