VMK3 Series

Catalog

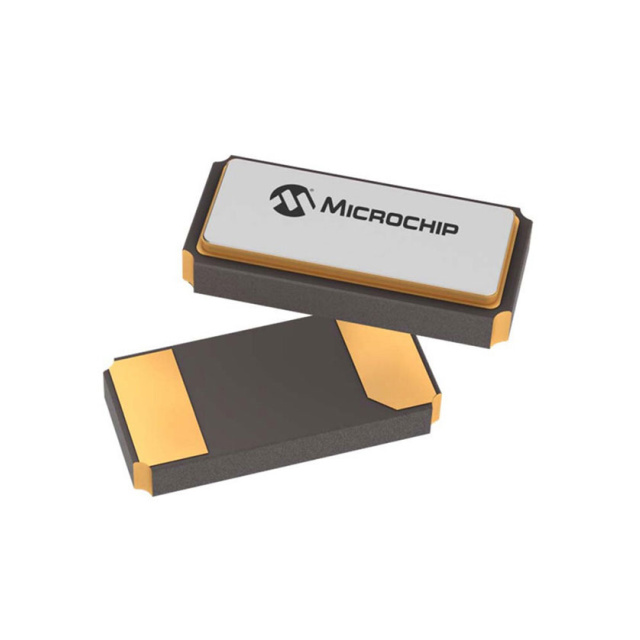

PARALLEL - FUNDAMENTAL QUARTZ CRYSTAL, 0.032768MHZ NOM

Part	Package / Case	Frequency Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Frequency	Operating Mode	Mounting Type	ESR (Equivalent Series Resistance)
Microchip Technology VMK3-9003-32K7680000	2-SMD No Lead	20 ppm	85 °C	-40 °C	1.5 mm	3.2 mm	0.126 in	0.059 "	kHz Crystal (Tuning Fork)	0.035 "	0.9 mm	32.768 kHz	Fundamental	Surface Mount
Microchip Technology VMK3-9005-32K7680000TR	2-SMD No Lead	20 ppm	85 °C	-40 °C	1.5 mm	3.2 mm	0.126 in	0.059 "	kHz Crystal (Tuning Fork)	0.035 "	0.9 mm	32.768 kHz	Fundamental	Surface Mount
Microchip Technology VMK3-9005-32K7680000	2-SMD No Lead		85 °C	-40 °C	1.5 mm	3.2 mm	0.126 in	0.059 "	kHz Crystal (Tuning Fork)	0.035 "	0.9 mm	32.768 kHz	Fundamental	Surface Mount
Microchip Technology VMK3-1001-32K7680000	2-SMD No Lead	20 ppm			1.5 mm	3.2 mm	0.126 in	0.059 "	kHz Crystal (Tuning Fork)	0.035 "	0.9 mm	32.768 kHz	Fundamental	Surface Mount	70 kOhms
Microchip Technology VMK3-9003-32K7680000TR	2-SMD No Lead	20 ppm			1.5 mm	3.2 mm	0.126 in	0.059 "	kHz Crystal (Tuning Fork)	0.035 "	0.9 mm	32.768 kHz	Fundamental	Surface Mount	70 kOhms
Microchip Technology VMK3-9001-32K7680000TR	2-SMD No Lead	20 ppm	85 °C	-40 °C	1.5 mm	3.2 mm	0.126 in	0.059 "	kHz Crystal (Tuning Fork)	0.035 "	0.9 mm	32.768 kHz	Fundamental	Surface Mount
Microchip Technology VMK3-9001-32K7680000	2-SMD No Lead		85 °C	-40 °C	1.5 mm	3.2 mm	0.126 in	0.059 "	kHz Crystal (Tuning Fork)	0.035 "	0.9 mm	32.768 kHz	Fundamental	Surface Mount
