TPS7B82-Q1 Series
Manufacturer: Texas Instruments
Beta
⌘K
AUTOMOTIVE 300-MA, OFF-BATTERY (40-V), ULTRA-LOW-IQ LDO WITH ENABLE IN AEC-Q100 GRADE-0 AND GRADE-1
| Part | Supplier Device Package | Voltage Dropout (Max) | Voltage - Output (Min/Fixed) | Protection Features | Qualification | Mounting Type | Number of Regulators | Grade | Package / Case | PSRR | Current - Quiescent (Iq) | Current - Output | Operating Temperature [Min] | Operating Temperature [Max] | Control Features | Output Configuration | Current - Supply (Max) [Max] | Package / Case | Voltage Dropout (Max) [Max] | Package / Case | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 14-HTSSOP | 1.35 V | 3.3 V | Over Current Over Temperature Under Voltage Lockout (UVLO) | AEC-Q100 | Surface Mount | 1 | Automotive | 14-PowerTSSOP (0.173" 4.40mm Width) | 60 dB | 5 µA | 300 mA | -40 °C | 150 °C | Enable | Positive | |||||
 Texas Instruments | TO-252-5 | 1.35 V | 3.3 V | Over Current Over Temperature Under Voltage Lockout (UVLO) | AEC-Q100 | Surface Mount | 1 | Automotive | DPAK (4 Leads + Tab) TO-252-5 TO-252AD | 60 dB | 3.5 µA | 300 mA | -40 °C | 125 °C | Enable | Positive | 4.5 µA | ||||
 Texas Instruments | 6-WSON (2x2) | 1.35 V | 3.3 V | Over Current Over Temperature Short Circuit | AEC-Q100 | Surface Mount | 1 | Automotive | 60 dB | 3.5 µA | 300 mA | -40 °C | 125 °C | Enable | Positive | 4.5 µA | |||||
Texas Instruments | TO-252-5 | 5 V | Over Current Over Temperature Under Voltage Lockout (UVLO) | AEC-Q100 | Surface Mount | 1 | Automotive | DPAK (4 Leads + Tab) TO-252-5 TO-252AD | 60 dB | 3.5 µA | 300 mA | -40 °C | 125 °C | Enable | Positive | 4.5 µA | |||||

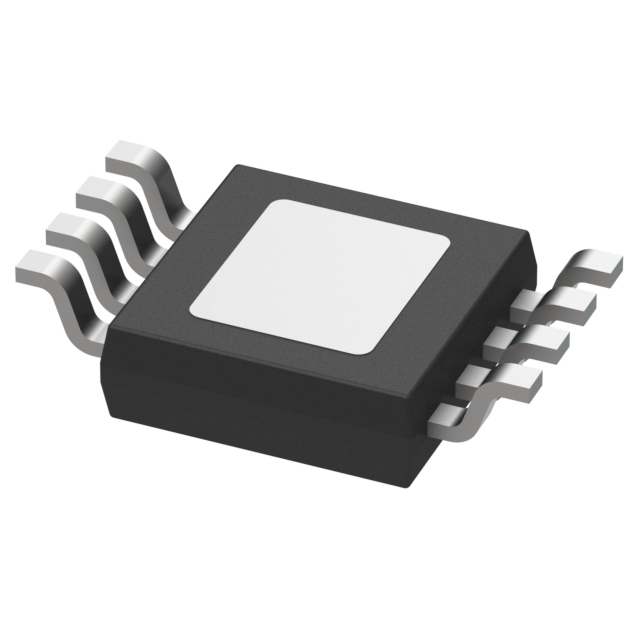

 Texas Instruments | 8-HVSSOP | 5 V | Over Current Over Temperature Short Circuit | AEC-Q100 | Surface Mount | 1 | Automotive | 8-MSOP 8-TSSOP Exposed Pad | 60 dB | 5 µA | 300 mA | -40 °C | 125 °C | Enable | Positive | 0.118 in 3 mm | 1 V | ||||
Texas Instruments | 6-WSON (2x2) | 5 V | Over Current Over Temperature Short Circuit | AEC-Q100 | Surface Mount | 1 | Automotive | 60 dB | 3.5 µA | 300 mA | -40 °C | 125 °C | Enable | Positive | 4.5 µA | ||||||
 Texas Instruments | 8-HVSSOP | 2.5 V | Over Current Over Temperature Under Voltage Lockout (UVLO) | AEC-Q100 | Surface Mount | 1 | Automotive | 8-MSOP 8-PowerTSSOP | 60 dB | 5 µA | 300 mA | -40 °C | 125 °C | Enable | Positive | 3 mm | 0.118 " | ||||
Texas Instruments | 8-HVSSOP | 1.25 V | 3.3 V | Over Current Over Temperature Short Circuit | AEC-Q100 | Surface Mount | 1 | Automotive | 8-MSOP 8-PowerTSSOP | 60 dB | 5 µA | 300 mA | -40 °C | 125 °C | Enable | Positive | 3 mm | 0.118 " | |||
 Texas Instruments | 14-HTSSOP | 5 V | Over Current Over Temperature Under Voltage Lockout (UVLO) | AEC-Q100 | Surface Mount | 1 | Automotive | 14-PowerTSSOP (0.173" 4.40mm Width) | 60 dB | 5 µA | 300 mA | -40 °C | 150 °C | Enable | Positive |
