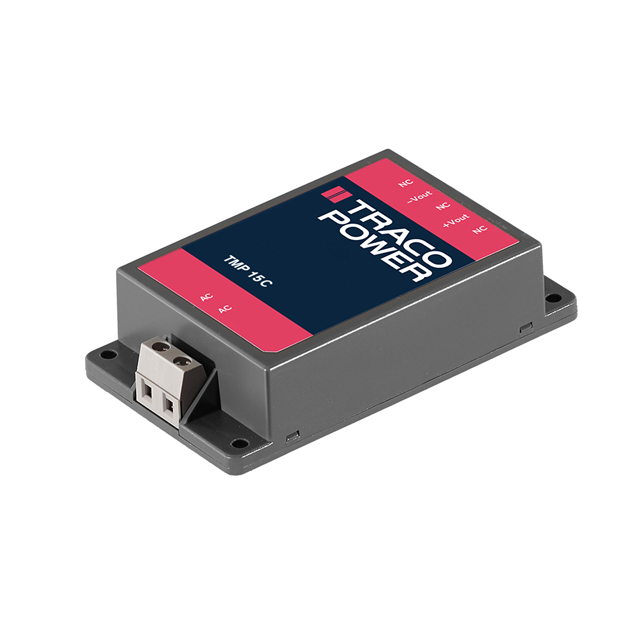

TMP 15515 Series
Manufacturer: Traco Power
Beta
⌘K
AC/DC POWER SUPPLY TRIPLE-OUT 5V/15V/-15V 2A/0.15A/0.15A 15W 9-PIN
| Part | Minimum Load Required | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Voltage - Output 3 | Current - Output 2 | Features | Voltage - Isolation | Power (Watts) | Mounting Type | Applications | Current - Output 3 | Voltage - Output 2 | Number of Outputs | Operating Temperature [Max] | Operating Temperature [Min] | Current - Output 1 | Approval Agency | Voltage - Output 1 | Voltage - Input [Min] | Voltage - Input [Max] | Type | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Traco Power | 54.1 mm | 0.92 in | 96 mm | 2.13 in | 3.78 in | 23.4 mm | -15 V | 150 mA | Adjustable Output Universal Input | 3000 V | 15 W | Chassis Mount | Industrial ITE (Commercial) | 150 mA | 15 V | 3 | 70 °C | -25 °C | 2 A | CB CE cULus cURus | 5 V | 85 VAC 120 VDC | 264 VAC 370 VDC | Enclosed | 74 % |
