DF3EA Series

Catalog

CONN HEADER SMD 4POS 2MM

Part	Mated Stacking Heights	Insulation Color	Material Flammability Rating	Contact Finish - Post	Shrouding	Termination	Number of Positions Loaded	Contact Type	Insulation Height	Insulation Height	Mounting Type	Number of Rows	Style	Number of Positions	Contact Shape	Insulation Material	Fastening Type	Current Rating (Amps)	Connector Type	Pitch - Mating	Pitch - Mating	Features	Voltage Rating	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]

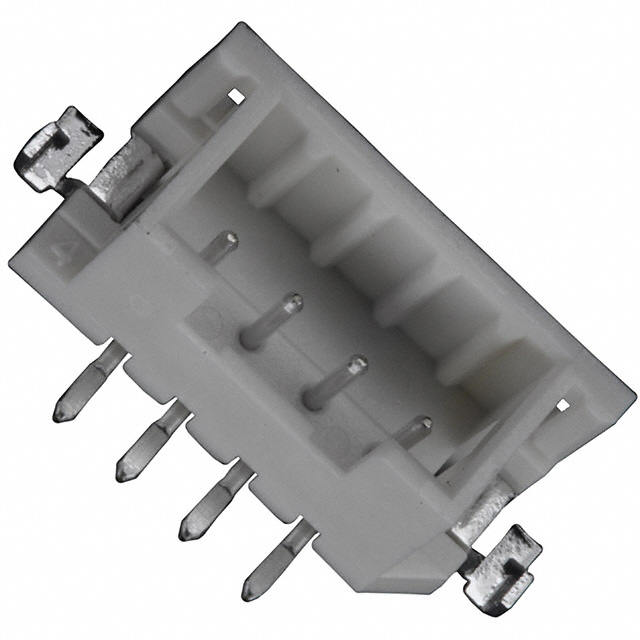

Hirose Electric Co Ltd DF3EA-4P-2V(21)	7.5 mm 7.7 mm 8.4 mm	Beige	UL94 V-0	Tin	Shrouded - 4 Wall	Solder	All	Male Pin	5.9 mm	0.232 in	Surface Mount	1	Board to Board Cable	4	Circular	Nylon Polyamide (PA)	Push-Pull	Varies by Wire Gauge	Header	0.079 "	2 mm	Solder Retention	250 VAC	Brass	-55 C	105 ░C

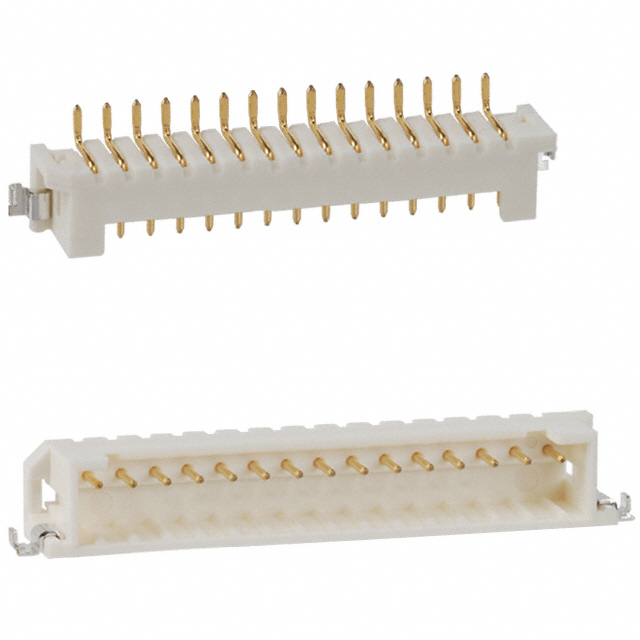

Hirose Electric Co Ltd DF3EA-15P-2H(51)		Beige	UL94 V-0		Shrouded - 4 Wall	Solder	All	Male Pin	5.6 mm	0.22 in	Right Angle Surface Mount	1	Board to Board Cable	15	Circular	Nylon Polyamide (PA)	Push-Pull	Varies by Wire Gauge	Header	0.079 "	2 mm	Solder Retention	250 VAC	Brass	-55 C	105 ░C	Gold	8 µin	0.203 µm
Hirose Electric Co Ltd DF3EA-11P-2V(21)	7.5 mm 7.7 mm 8.4 mm	Beige	UL94 V-0	Tin	Shrouded - 4 Wall	Solder	All	Male Pin	5.9 mm	0.232 in	Surface Mount	1	Board to Board Cable	11	Circular	Nylon Polyamide (PA)	Push-Pull	Varies by Wire Gauge	Header	0.079 "	2 mm	Solder Retention	250 VAC	Brass	-55 C	105 ░C
Hirose Electric Co Ltd DF3EA-13P-2H(21)		Beige	UL94 V-0	Tin	Shrouded - 4 Wall	Solder	All	Male Pin	5.6 mm	0.22 in	Right Angle Surface Mount	1	Board to Board Cable	13	Circular	Nylon Polyamide (PA)	Push-Pull	Varies by Wire Gauge	Header	0.079 "	2 mm	Solder Retention	250 VAC	Brass	-55 C	105 ░C				39.4 µin	1 µm

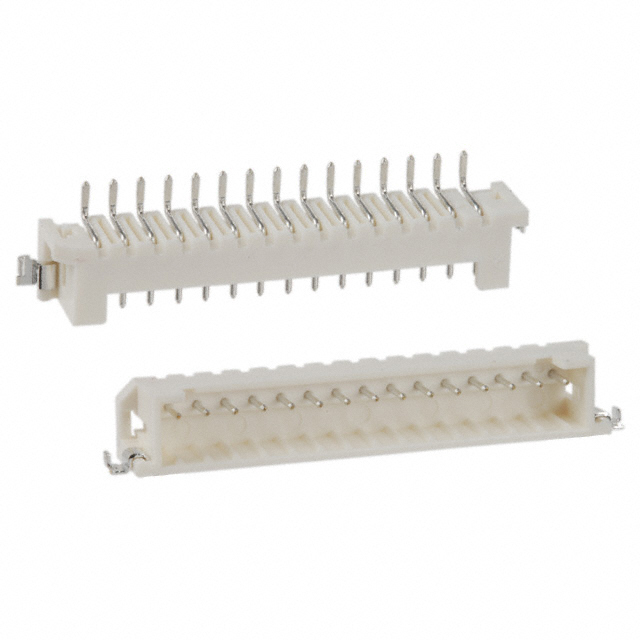

Hirose Electric Co Ltd DF3EA-15P-2H(21)		Beige	UL94 V-0	Tin	Shrouded - 4 Wall	Solder	All	Male Pin	5.6 mm	0.22 in	Right Angle Surface Mount	1	Board to Board Cable	15	Circular	Nylon Polyamide (PA)	Push-Pull	Varies by Wire Gauge	Header	0.079 "	2 mm	Solder Retention	250 VAC	Brass	-55 C	105 ░C				39.4 µin	1 µm
Hirose Electric Co Ltd DF3EA-3P-2H(51)		Beige	UL94 V-0		Shrouded - 4 Wall	Solder	All	Male Pin	5.6 mm	0.22 in	Right Angle Surface Mount	1	Board to Board Cable		Circular	Nylon Polyamide (PA)	Push-Pull	Varies by Wire Gauge	Header	0.079 "	2 mm	Solder Retention	250 VAC	Brass	-55 C	105 ░C	Gold	8 µin	0.203 µm
Hirose Electric Co Ltd DF3EA-5P-2V(21)	7.5 mm 7.7 mm 8.4 mm	Beige	UL94 V-0	Tin	Shrouded - 4 Wall	Solder	All	Male Pin	5.9 mm	0.232 in	Surface Mount	1	Board to Board Cable	5	Circular	Nylon Polyamide (PA)	Push-Pull	Varies by Wire Gauge	Header	0.079 "	2 mm	Solder Retention	250 VAC	Brass	-55 C	105 ░C

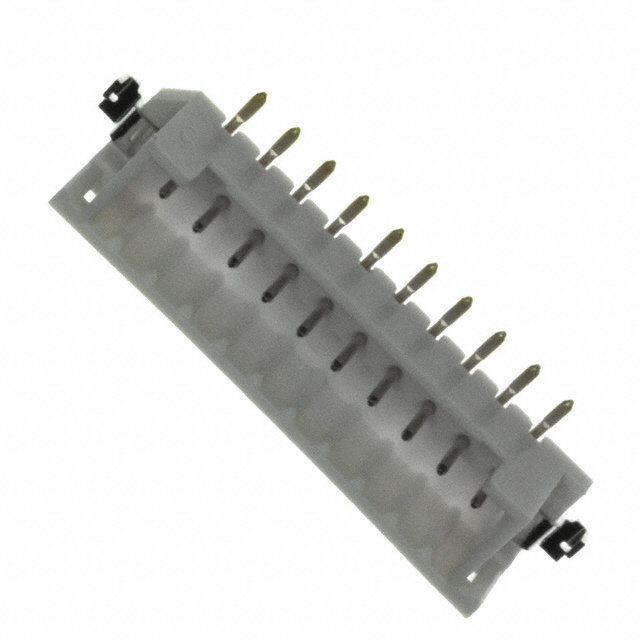

Hirose Electric Co Ltd DF3EA-10P-2V(51)	7.5 mm 7.7 mm 8.4 mm	Beige	UL94 V-0		Shrouded - 4 Wall	Solder	All	Male Pin	5.9 mm	0.232 in	Surface Mount	1	Board to Board Cable	10	Circular	Nylon Polyamide (PA)	Push-Pull	Varies by Wire Gauge	Header	0.079 "	2 mm	Solder Retention	250 VAC	Brass	-55 C	105 ░C	Gold	8 µin	0.203 µm
Hirose Electric Co Ltd DF3EA-3P-2H(96)		Natural	UL94 V-0	Tin	Shrouded - 4 Wall	Solder	All	Male Pin	5.9 mm	0.232 in	Right Angle Surface Mount	1	Board to Board Cable		Circular	Nylon Polyamide (PA)	Push-Pull	Varies by Wire Gauge	Header	0.079 "	2 mm	Solder Retention	250 VAC	Brass	-55 C	105 ░C		8 µin	0.203 µm
Hirose Electric Co Ltd DF3EA-2P-2H(21)		Beige	UL94 V-0	Tin	Shrouded - 4 Wall	Solder	All	Male Pin	5.6 mm	0.22 in	Right Angle Surface Mount	1	Board to Board Cable	2	Circular	Nylon Polyamide (PA)	Push-Pull	Varies by Wire Gauge	Header	0.079 "	2 mm	Solder Retention	250 VAC	Brass	-55 C	105 ░C				39.4 µin	1 µm
