FH28 Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONN FFC BOTTOM 50POS 0.5MM R/A
| Part | Actuator Color | Housing Color | Contact Material | Connector/Contact Type | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Cable End Type | Mounting Type | Material Flammability Rating | Height Above Board [z] | Height Above Board [z] | Locking Feature | Pitch | Pitch | Features | FFC, FCB Thickness | Housing Material | Actuator Material | Flat Flex Type | Termination | Contact Finish | Current Rating (Amps) | Mating Cycles | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | Black | Gray | Phosphor Bronze | Contacts Bottom | 50 | -40 C | 105 ░C | Tabbed | Right Angle Surface Mount | UL94 V-0 | 0.1 in | 2.54 mm | Rotary Lock | 0.02 " | 0.5 mm | Solder Retention Zero Insertion Force (ZIF) | 0.3 mm | Liquid Crystal Polymer (LCP) Halogen Free | Liquid Crystal Polymer (LCP) Halogen Free | FFC FPC | Solder | Gold | |||

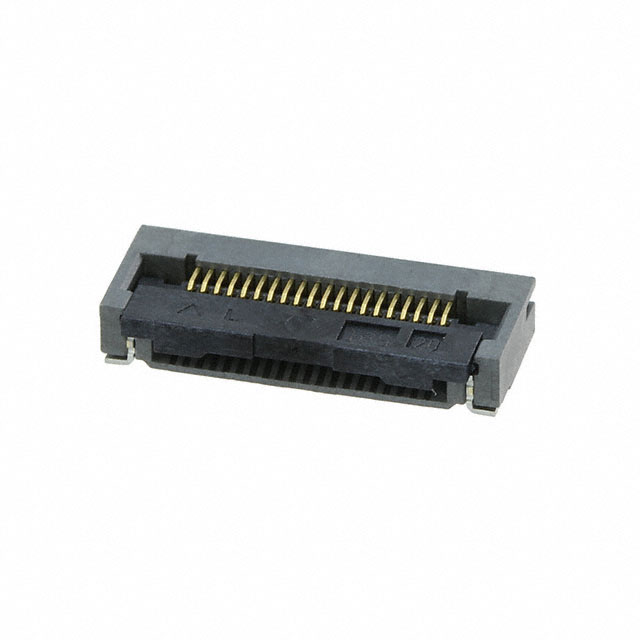

 Hirose Electric Co Ltd | Black | Gray | Phosphor Bronze | Contacts Bottom | 20 | -40 C | 105 ░C | Tabbed | Right Angle Surface Mount | UL94 V-0 | 0.1 in | 2.54 mm | Rotary Lock | 0.02 " | 0.5 mm | Solder Retention Zero Insertion Force (ZIF) | 0.3 mm | Liquid Crystal Polymer (LCP) Halogen Free | Liquid Crystal Polymer (LCP) Halogen Free | FFC FPC | Solder | Gold | 0.5 A | 20 | 50 V |
 Hirose Electric Co Ltd | Phosphor Bronze | Contacts Bottom | 20 | -40 C | 105 ░C | Tabbed | Right Angle Surface Mount | UL94 V-0 | 0.1 in | 2.54 mm | Rotary Lock | 0.02 " | 0.5 mm | Solder Retention Zero Insertion Force (ZIF) | 0.3 mm | Liquid Crystal Polymer (LCP) Halogen Free | Liquid Crystal Polymer (LCP) Halogen Free | FFC FPC | Solder | Gold | |||||
Hirose Electric Co Ltd | Black | Gray | Phosphor Bronze | Contacts Bottom | 50 | -40 C | 105 ░C | Tabbed | Right Angle Surface Mount | UL94 V-0 | 0.1 in | 2.54 mm | Rotary Lock | 0.02 " | 0.5 mm | Solder Retention Zero Insertion Force (ZIF) | 0.3 mm | Liquid Crystal Polymer (LCP) Halogen Free | Liquid Crystal Polymer (LCP) Halogen Free | FFC FPC | Solder | Gold | |||
 Hirose Electric Co Ltd | Phosphor Bronze | Contacts Bottom | 50 | -40 C | 105 ░C | Tabbed | Right Angle Surface Mount | UL94 V-0 | 0.1 in | 2.54 mm | Rotary Lock | 0.02 " | 0.5 mm | Solder Retention Zero Insertion Force (ZIF) | 0.3 mm | Liquid Crystal Polymer (LCP) Halogen Free | Liquid Crystal Polymer (LCP) Halogen Free | FFC FPC | Solder | Gold | 50 V | ||||
 Hirose Electric Co Ltd | Black | Gray | Phosphor Bronze | Contacts Bottom | 10 | -40 C | 105 ░C | Tabbed | Right Angle Surface Mount | UL94 V-0 | 0.1 in | 2.54 mm | Rotary Lock | 0.02 " | 0.5 mm | Solder Retention Zero Insertion Force (ZIF) | 0.3 mm | Liquid Crystal Polymer (LCP) Halogen Free | Liquid Crystal Polymer (LCP) Halogen Free | FFC FPC | Solder | Gold | 0.5 A | 20 | 50 V |
 Hirose Electric Co Ltd | Black | Gray | Phosphor Bronze | Contacts Bottom | 40 | -40 C | 105 ░C | Tabbed | Right Angle Surface Mount | UL94 V-0 | 0.1 in | 2.54 mm | Rotary Lock | 0.02 " | 0.5 mm | Solder Retention Zero Insertion Force (ZIF) | 0.3 mm | Liquid Crystal Polymer (LCP) Halogen Free | Liquid Crystal Polymer (LCP) Halogen Free | FFC FPC | Solder | Gold | |||
 Hirose Electric Co Ltd | Black | Gray | Phosphor Bronze | Contacts Bottom | 74 | -40 C | 105 ░C | Tabbed | Right Angle Surface Mount | UL94 V-0 | 0.1 in | 2.54 mm | Rotary Lock | 0.02 " | 0.5 mm | Solder Retention Zero Insertion Force (ZIF) | 0.3 mm | Liquid Crystal Polymer (LCP) Halogen Free | Liquid Crystal Polymer (LCP) Halogen Free | FFC FPC | Solder | Gold | 0.5 A | 20 | 50 V |
 Hirose Electric Co Ltd | Black | Gray | Phosphor Bronze | Contacts Bottom | 50 | -40 C | 105 ░C | Tabbed | Right Angle Surface Mount | UL94 V-0 | 0.1 in | 2.54 mm | Rotary Lock | 0.02 " | 0.5 mm | Solder Retention Zero Insertion Force (ZIF) | 0.3 mm | Liquid Crystal Polymer (LCP) Halogen Free | Liquid Crystal Polymer (LCP) Halogen Free | FFC FPC | Solder | Gold | 0.5 A | 20 | 50 V |

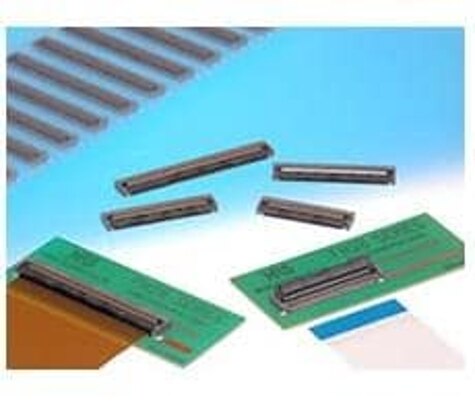

Hirose Electric Co Ltd | Phosphor Bronze | Contacts Bottom | 68 positions | -40 C | 105 ░C | Tabbed | Right Angle Surface Mount | 0.1 in | 2.54 mm | Rotary Lock | 0.02 " | 0.5 mm | Solder Retention Zero Insertion Force (ZIF) | 0.3 mm | FFC FPC | Solder | 0.5 A | 50 V |
