MQ172 Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONN RCPT 3P 0.031 GOLD SMD R/A
| Part | Applications | Insulation Material | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Insulation Height | Insulation Height | Termination | Fastening Type | Current Rating (Amps) | Features | Connector Type | Contact Finish - Mating | Contact Type | Contact Finish - Post | Material Flammability Rating | Number of Rows | Pitch - Mating | Pitch - Mating | Voltage Rating | Insulation Color | Number of Positions Loaded | Style | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Color | Cable Termination | Wire Type | Contact Finish | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

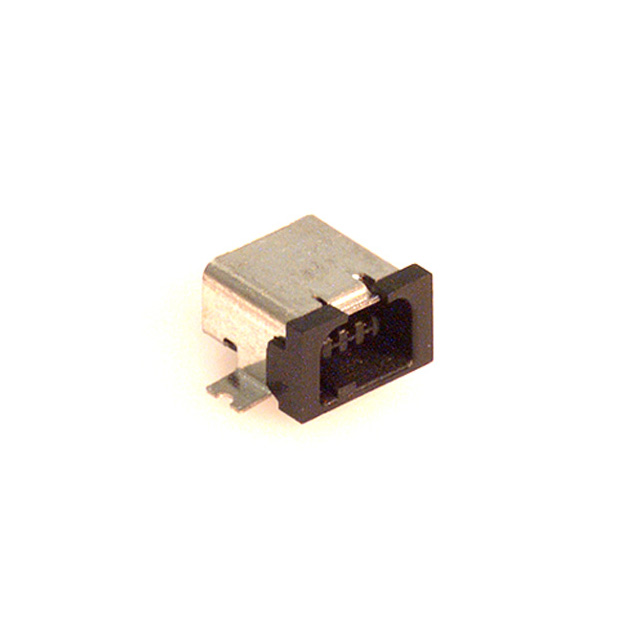

 Hirose Electric Co Ltd | General Purpose Telecommunications | Nylon Polyamide (PA) | 1.25 µin | 0.032 µm | Copper Alloy | 75 ░C | -30 ░C | Right Angle Surface Mount | 0.154 in | 3.9 mm | Solder | Friction Lock | 3 A | Board Guide Solder Retention | Receptacle | Gold | Center Strip Contact | Gold | UL94 V-0 | 1 | 0.8 mm | 0.031 in | 30 VDC 40 VAC | Black | All | Board to Cable/Wire | 8 µin | 0.203 µm | |||||

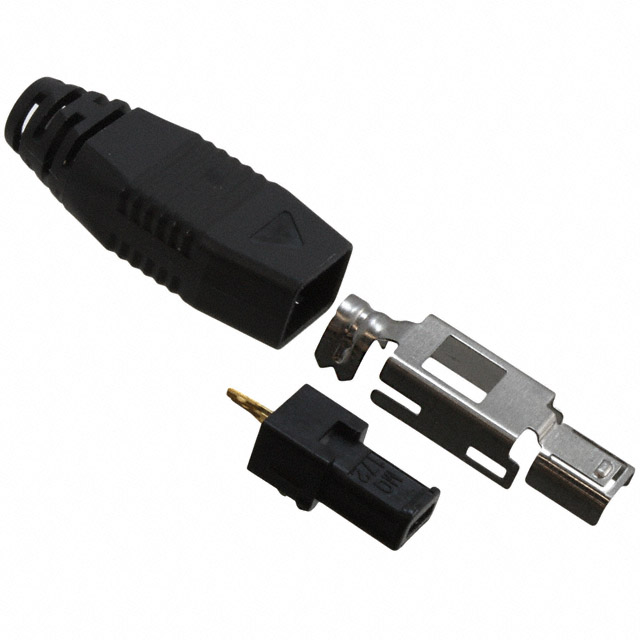

 Hirose Electric Co Ltd | Free Hanging (In-Line) | Latch Lock | Cable Clamp Hood | Plug | Male Pin | 1 | Black | Solder Eyelet | Discrete | Gold | 3 | ||||||||||||||||||||||
Hirose Electric Co Ltd | General Purpose Telecommunications | Nylon Polyamide (PA) | 1.25 µin | 0.032 µm | Copper Alloy | 75 ░C | -30 ░C | Right Angle Surface Mount | 0.154 in | 3.9 mm | Solder | Friction Lock | 3 A | Board Guide Solder Retention | Receptacle | Gold | Center Strip Contact | Gold | UL94 V-0 | 1 | 0.8 mm | 0.031 in | 30 VDC 40 VAC | Black | All | Board to Cable/Wire | |||||||

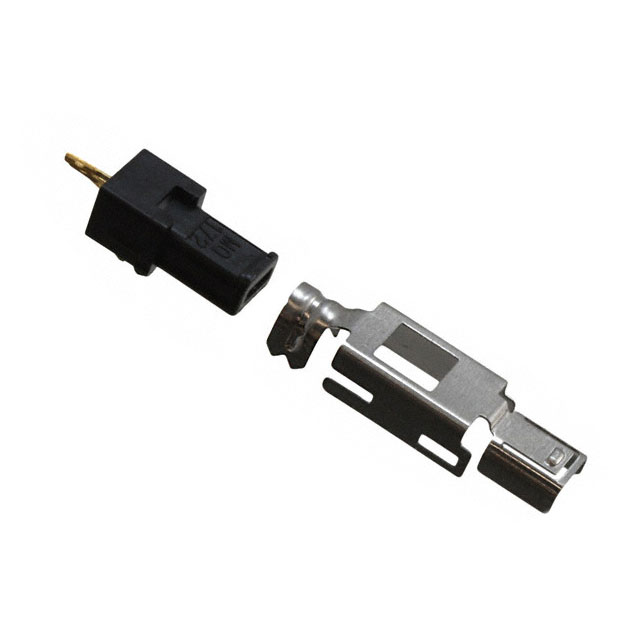

 Hirose Electric Co Ltd | Free Hanging (In-Line) | Plug | Male Pin | 1 | Black | Solder | Discrete | Gold |
