ADP125 Series

Catalog

LDO VOLTAGE REGULATOR, ADJUSTABLE, 2.3 V TO 5.5 V IN, 0.13 V / 0.5 A OUT, MSOP-EP-8

Part	Control Features	Mounting Type	Voltage - Output (Max)	Protection Features	Output Configuration	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Dropout (Max) [Max]	Current - Output	PSRR	Number of Regulators	Current - Quiescent (Iq)	Supplier Device Package	Voltage - Input (Max) [Max]	Voltage - Output (Min/Fixed)	Output Type	Package / Case	Package / Case [custom]	Current - Supply (Max) [Max]	Supplied Contents	Voltage - Output [Max]	Voltage - Output [Min]	Utilized IC / Part	Board Type	Regulator Type	Channels per IC	Voltage - Input [Min]	Voltage - Input [Max]	Contents
Analog Devices ADP125ARHZ	Enable	Surface Mount	5 V	Over Current Over Temperature Under Voltage Lockout (UVLO)	Positive	125 °C	-40 °C	0.23 V	500 mA	60 dB	1	105 çA	8-MSOP-EP	5.5 V	0.8 V	Adjustable	8-MSOP 8-TSSOP Exposed Pad	0.118 in 3 mm	280 µA
Analog Devices ADP125ARHZ-R7	Enable	Surface Mount	5 V	Over Current Over Temperature Under Voltage Lockout (UVLO)	Positive	125 °C	-40 °C	0.23 V	500 mA	60 dB	1	105 çA	8-MSOP-EP	5.5 V	0.8 V	Adjustable	8-MSOP 8-TSSOP Exposed Pad	0.118 in 3 mm	280 µA

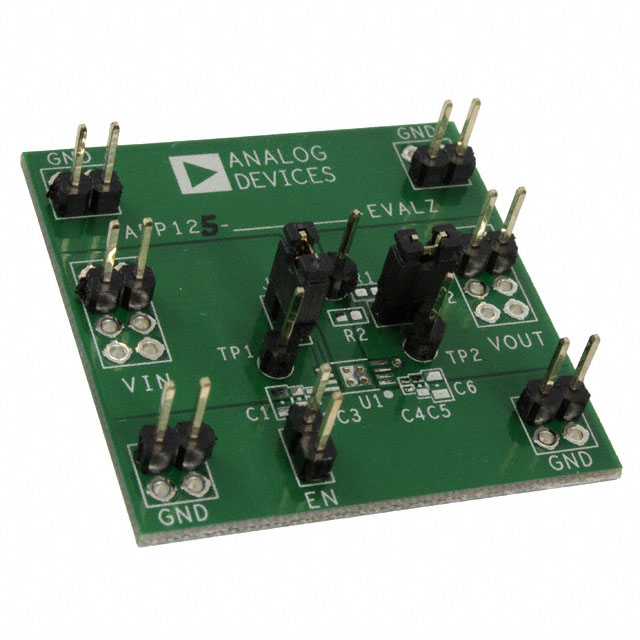

Analog Devices ADP125-EVALZ									500 mA											Board(s)	5 V	0.8 V	ADP125	Fully Populated	Positive Adjustable	1 - Single	2.3 V	5.5 V

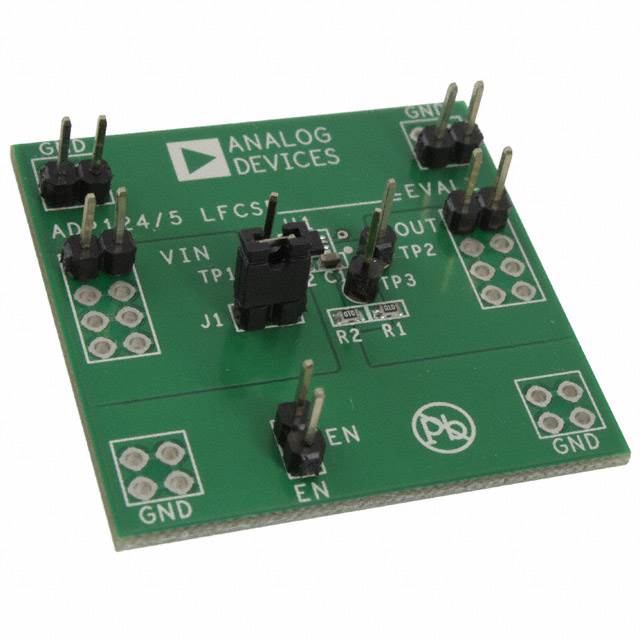

Analog Devices ADP125CP-EVALZ									500 mA												5 V	0.8 V	ADP125		Positive Adjustable	1 - Single	2.3 V	5.5 V	Board(s)
Analog Devices ADP125ACPZ-R7	Enable	Surface Mount	5 V	Over Current Over Temperature Under Voltage Lockout (UVLO)	Positive	125 °C	-40 °C	0.23 V	500 mA	60 dB	1	105 çA	8-LFCSP-UD (2x2)	5.5 V	0.8 V	Adjustable	8-UFDFN Exposed Pad CSP		280 µA
