AZSR180 Series
Manufacturer: American Zettler
Beta
⌘K

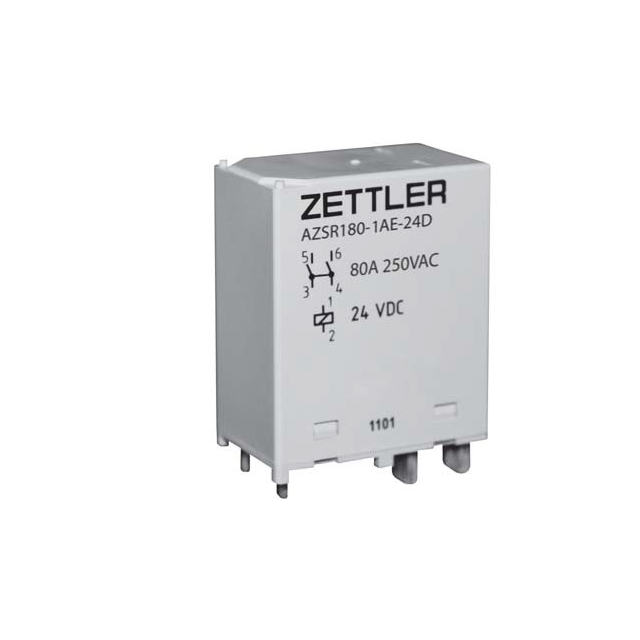

RELAY EV CHG SOLAR SPST 80A 12V
| Part | Coil Resistance | Coil Insulation | Must Operate Voltage | Coil Voltage | Contact Material | Load - Max Switching | Contact Rating (Current) | Operate Time | Termination Style | Coil Type | Switching Voltage [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Contact Form | Approval Agency | Coil Current | Mounting Type | Must Release Voltage | Release Time | Relay Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 American Zettler | 300 Ohms | Class F | 9 VDC | 12 VDC | Silver Tin Oxide (AgSnO) | 2400 W 22160 VA | 80 A | 40 ms | PC Pin | Non Latching | 150 VDC 440 VAC | 85 °C | -40 C | SPST-NO (1 Form A) | UL VDE | 40 mA | Through Hole | 0.6 VDC | 5 ms | EV Charging Solar |
