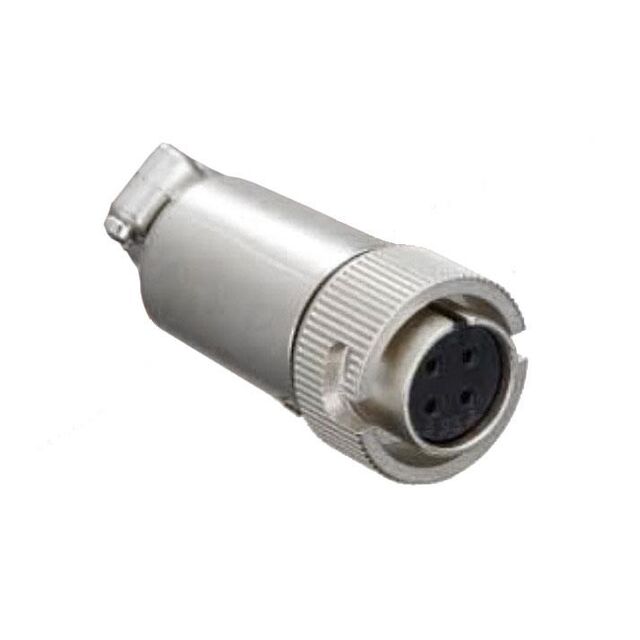

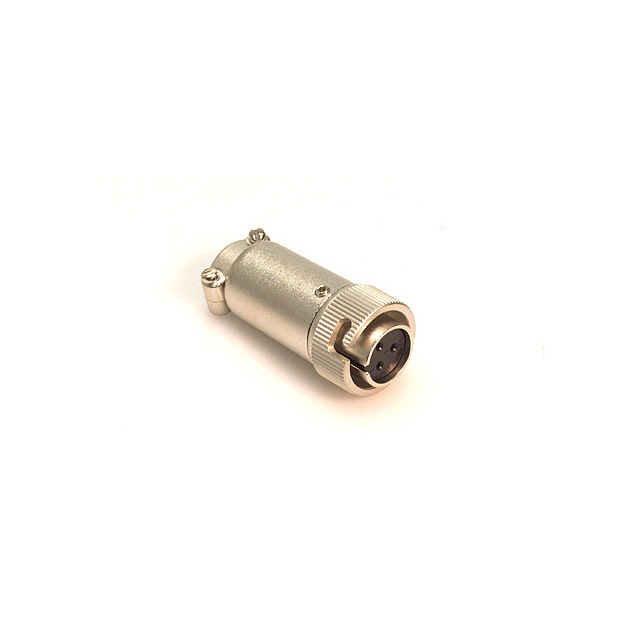

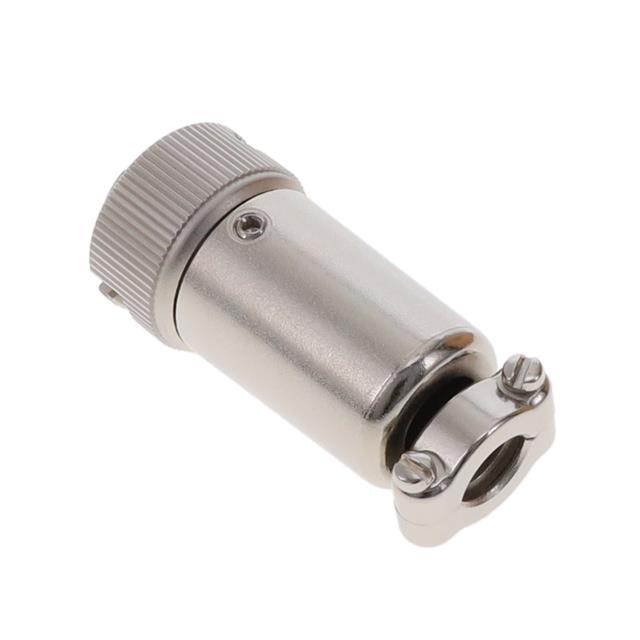

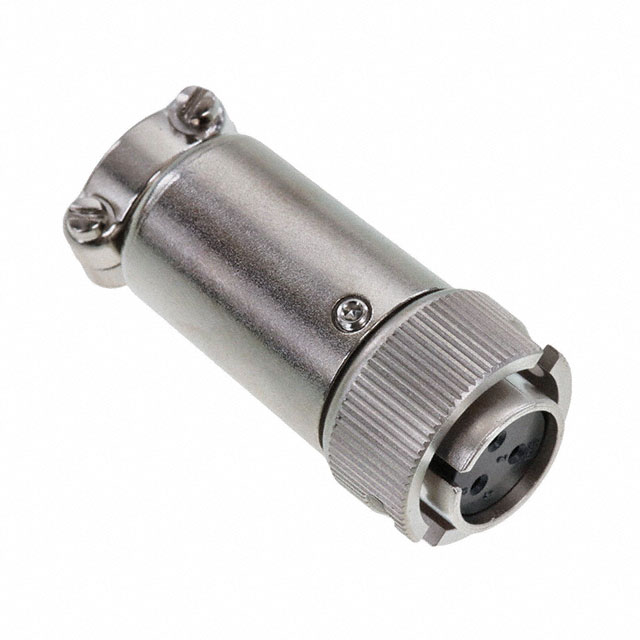

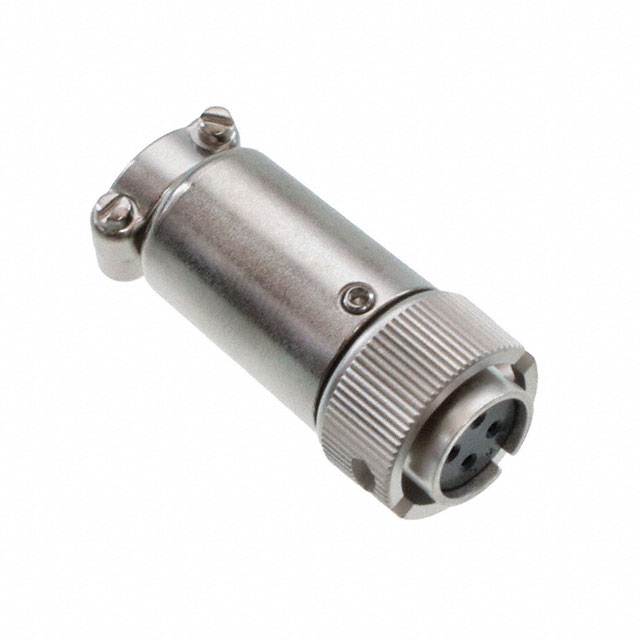

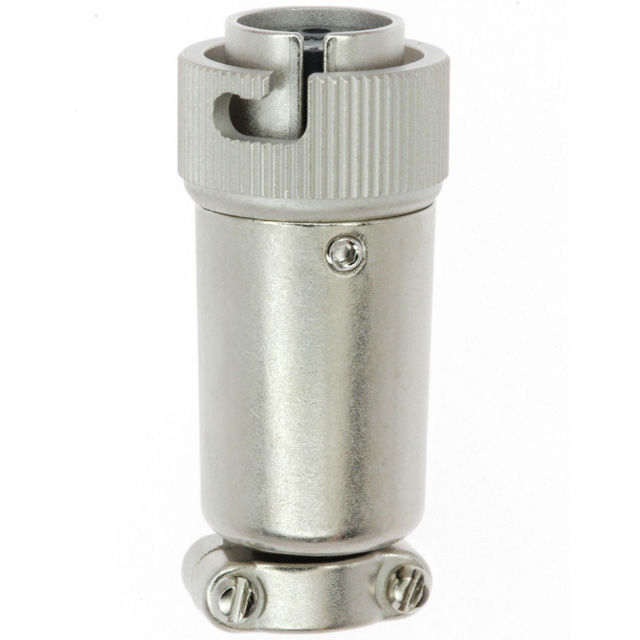

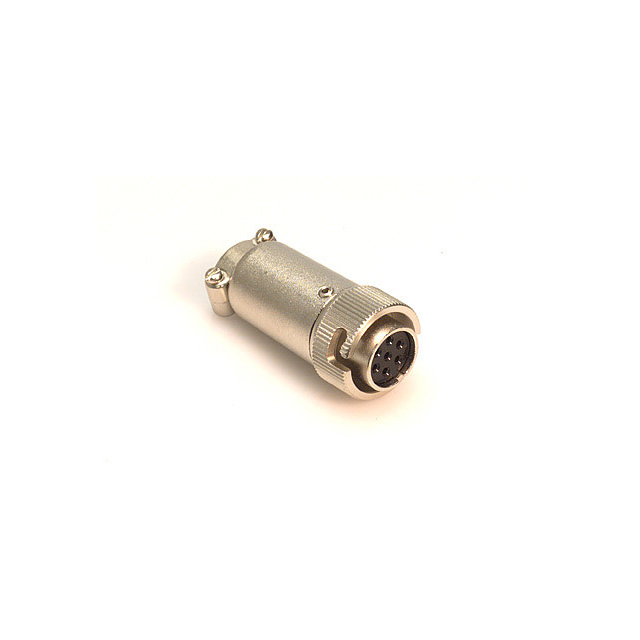

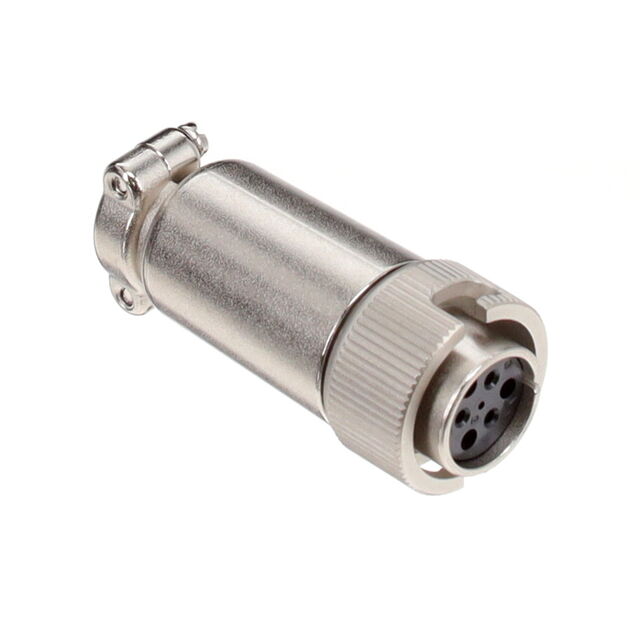

RM12BPE Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K

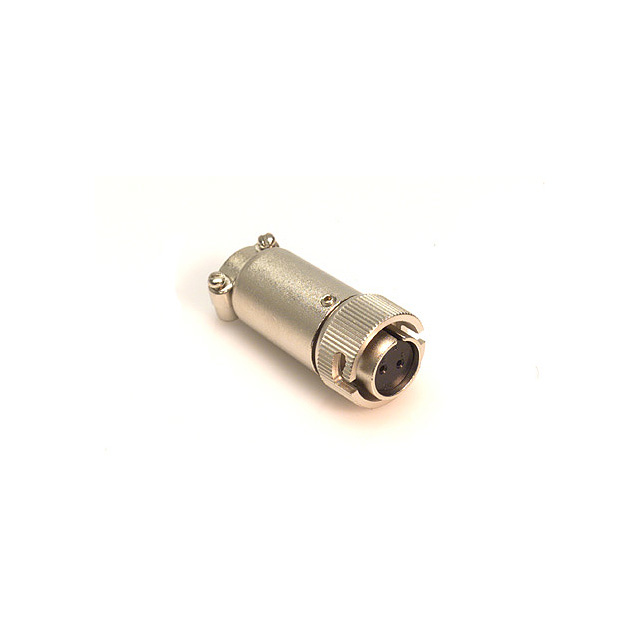

CONN PLUG FMALE 2P SOLDER CUP
| Part | Mounting Type | Backshell Material, Plating | Material Flammability Rating | Number of Positions | Connector Type | Shell Finish | Operating Temperature [Max] | Operating Temperature [Min] | Color | Orientation | Shell Size - Insert [custom] | Shell Material | Primary Material | Fastening Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Mating | Current Rating (Amps) | Voltage Rating | Insert Material | Contact Material | Features | Cable Opening [Max] | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Min] | Shielding | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | Free Hanging (In-Line) | Nickel Zinc Alloy | UL94 V-0 | 2 | Plug Female Sockets | Nickel | 85 °C | -25 °C | Silver | Keyed | 12 | Zinc Alloy | Metal | Bayonet Lock | 5 µm | 196.9 µin | Silver | 5 A | 600 VAC 840 VDC | Diallyl Phthalate (DAP) | Copper Alloy | Backshell Cable Clamp Coupling Nut | 0.315 in | 8 mm | 5 mm | 0.197 in | ||

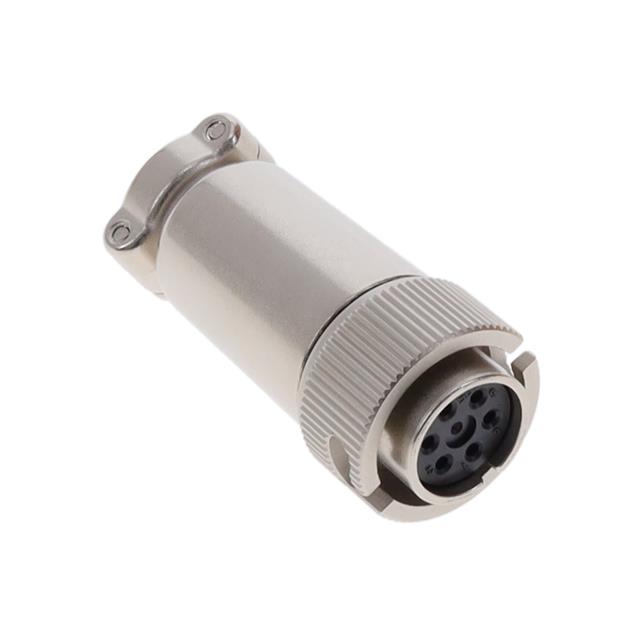

 Hirose Electric Co Ltd | Free Hanging (In-Line) | 6 | Plug Female Sockets | 85 °C | -25 °C | Keyed | 12 | Metal | Bayonet Lock | Silver | Polyphenylene Sulfide (PPS) | Copper Alloy | 0.315 in | 8 mm | 5 mm | 0.197 in | Unshielded | Solder | ||||||||||
 Hirose Electric Co Ltd | Free Hanging (In-Line) | 7 | Plug Female Sockets | 85 °C | -25 °C | Keyed | 12 | Bayonet Lock | 5 A | 350 VAC 490 VDC | ||||||||||||||||||
 Hirose Electric Co Ltd | Free Hanging (In-Line) | Plug Female Sockets | 85 °C | -25 °C | Keyed | 12 | Bayonet Lock | 5 A | 500 VAC 700 VDC | |||||||||||||||||||
 Hirose Electric Co Ltd | Free Hanging (In-Line) | Nickel Zinc Alloy | UL94 V-0 | 4 | Plug Female Sockets | Nickel | 85 °C | -25 °C | Silver | Keyed | 12 | Zinc Alloy | Metal | Bayonet Lock | 5 µm | 196.9 µin | Silver | 5 A | 500 VAC 700 VDC | Diallyl Phthalate (DAP) | Copper Alloy | Backshell Cable Clamp Coupling Nut | 0.315 in | 8 mm | 5 mm | 0.197 in | ||
Hirose Electric Co Ltd | Free Hanging (In-Line) | UL94 V-0 | 4 | Plug Female Sockets | Nickel | 85 °C | -25 °C | Silver | Keyed | 12 | Zinc Alloy | Metal | Bayonet Lock | Silver | 5 A | 500 VAC 700 VDC | Diallyl Phthalate (DAP) | Copper Alloy | Backshell Cable Clamp Coupling Nut | 0.315 in | 8 mm | 5 mm | 0.197 in | Unshielded | ||||
 Hirose Electric Co Ltd | Free Hanging (In-Line) | 5 | Plug Female Sockets | 85 °C | -25 °C | Keyed | 12 | Bayonet Lock | 5 A | 350 VAC 490 VDC | ||||||||||||||||||
 Hirose Electric Co Ltd | Free Hanging (In-Line) | Nickel Zinc Alloy | UL94 V-0 | Plug Female Sockets | Nickel | 85 °C | -25 °C | Silver | Keyed | 12 | Zinc Alloy | Metal | Bayonet Lock | 5 µm | 196.9 µin | Silver | 5 A | 500 VAC 700 VDC | Diallyl Phthalate (DAP) | Copper Alloy | Backshell Cable Clamp Coupling Nut | 0.315 in | 8 mm | 5 mm | 0.197 in | |||
 Hirose Electric Co Ltd | Free Hanging (In-Line) | UL94 V-0 | Plug Female Sockets | Nickel | 85 °C | -25 °C | Silver | Keyed | 12 | Zinc Alloy | Metal | Bayonet Lock | Silver | 5 A | 500 VAC 700 VDC | Diallyl Phthalate (DAP) | Copper Alloy | Backshell Cable Clamp Coupling Nut | 0.315 in | 8 mm | 5 mm | 0.197 in | Unshielded | |||||
 Hirose Electric Co Ltd | Free Hanging (In-Line) | UL94 V-0 | 2 | Plug Male Pins | Nickel | 85 °C | -25 °C | Silver | Keyed | 12 | Zinc Alloy | Metal | Bayonet Lock | Silver | 5 A | 600 VAC 840 VDC | Diallyl Phthalate (DAP) | Copper Alloy | Backshell Cable Clamp Coupling Nut | 0.315 in | 8 mm | 5 mm | 0.197 in | Unshielded |
