ISP1907 Series
Manufacturer: Insight SIP
Beta
⌘K

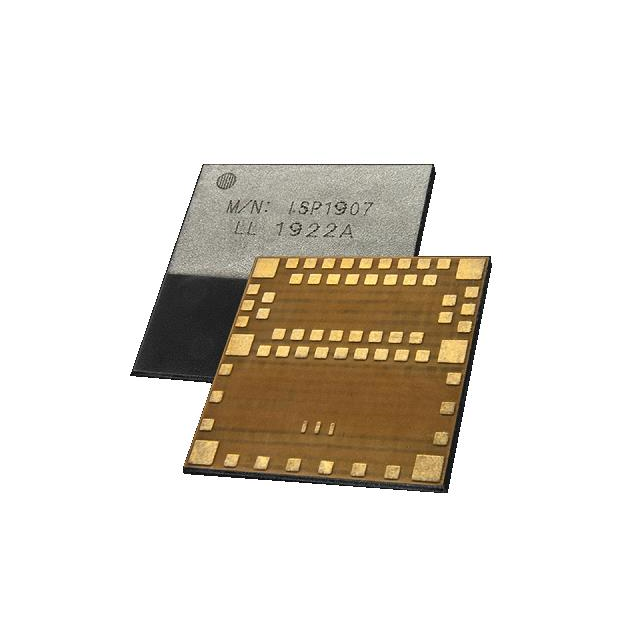

RF TXRX MOD BT /ANT CHIP SMD
| Part | Mounting Type | Power - Output | Data Rate | Protocol | Memory Type | Memory Size (SRAM) | Memory Size (Flash) | RF Family/Standard | Current - Receiving | Operating Temperature (Min) | Operating Temperature (Max) | Serial Interfaces | Frequency (Max) | Frequency (Min) | Sensitivity | Current - Transmitting (Max) | Current - Transmitting (Min) | Package / Case | Utilized IC / Part | Voltage - Supply (Maximum) | Voltage - Supply (Minimum) | Antenna Type | For Use With/Related Products | Supplied Contents | Contents | Frequency | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Insight SIP | Surface Mount | 4 dBm | 2 Mbps | ANT® Bluetooth v5.1 Thread Zigbee® | Flash SRAM | 24 kB | 192 kB | 802.15.4 Bluetooth/ANT | 6.1 mA | -40 °C | 85 °C | ADC GPIO I2C PDM SPI UART | 2.5 GHz | 2.36 GHz | -104 dBm | 5.8 mA | 3.4 mA | 62-SMD Module | nRF52811 | 3.6 V | 1.7 V | Chip Integrated | |||||
Insight SIP | Surface Mount | 4 dBm | 2 Mbps | ANT® Bluetooth v5.1 Thread Zigbee® | Flash SRAM | 24 kB | 192 kB | 802.15.4 Bluetooth/ANT | 6.1 mA | -40 °C | 85 °C | ADC GPIO I2C PDM SPI UART | 2.5 GHz | 2.36 GHz | -104 dBm | 5.8 mA | 3.4 mA | 62-SMD Module | nRF52811 | 3.6 V | 1.7 V | Chip Integrated | |||||
Insight SIP | Surface Mount | 8 dBm | 2 Mbps | ANT® Bluetooth v5.1 Thread Zigbee® | Flash SRAM | 128 kB | 512 kB | 802.15.4 Bluetooth/ANT | 6 mA | -40 °C | 105 °C | ADC GPIO I2C PDM SPI UART USB | 2.5 GHz | 2.36 GHz | -104 dBm | 6.1 mA | 3.5 mA | 62-SMD Module | nRF52833 | 3.6 V | 1.7 V | Chip Integrated | |||||
Insight SIP | Surface Mount | 4 dBm | 2 Mbps | ANT® Bluetooth v5.1 Thread Zigbee® | Flash SRAM | 24 kB | 192 kB | 802.15.4 Bluetooth/ANT | 6.1 mA | -40 °C | 85 °C | ADC GPIO I2C PDM SPI UART | 2.5 GHz | 2.36 GHz | -104 dBm | 5.8 mA | 3.4 mA | 62-SMD Module | nRF52811 | 3.6 V | 1.7 V | Chip Integrated | |||||

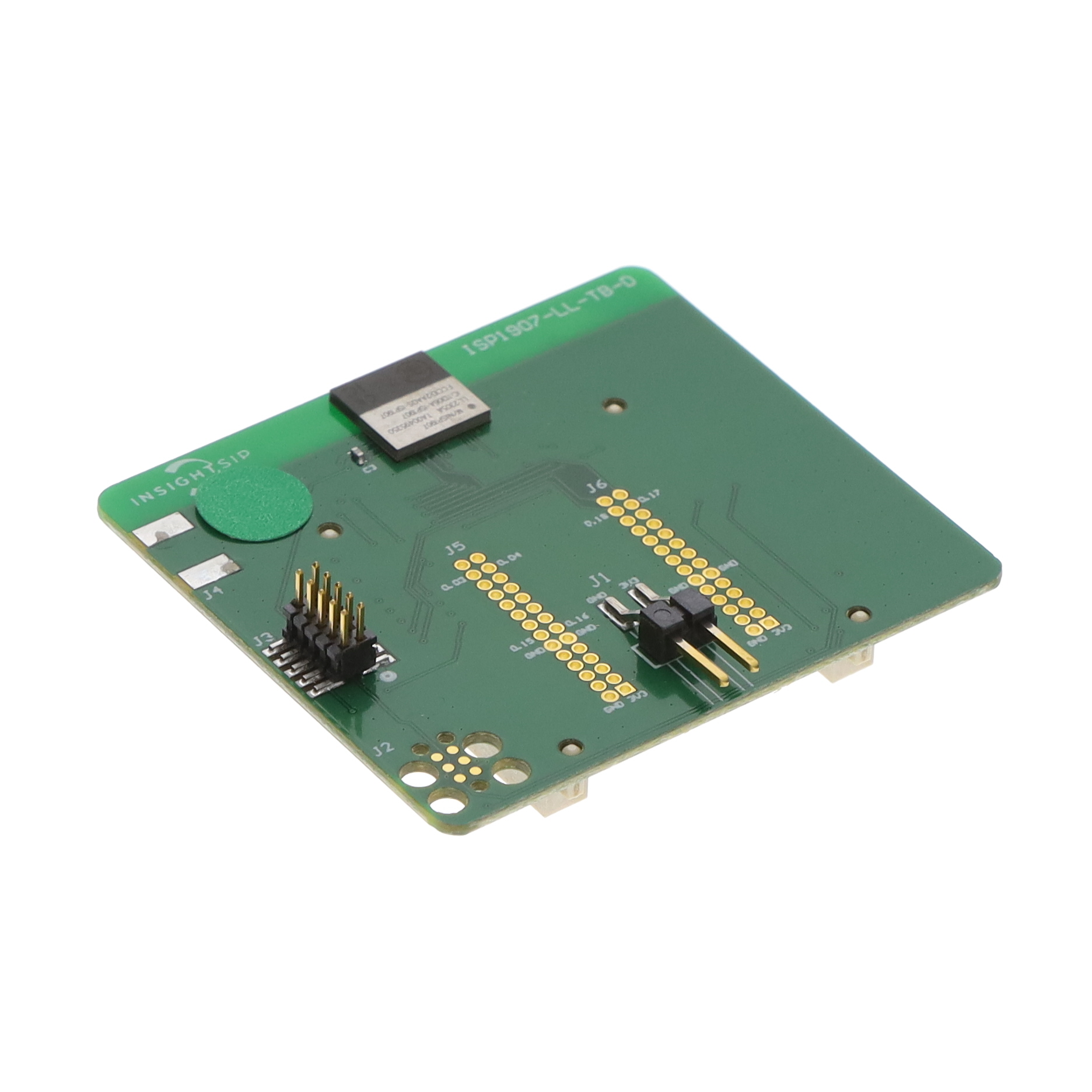

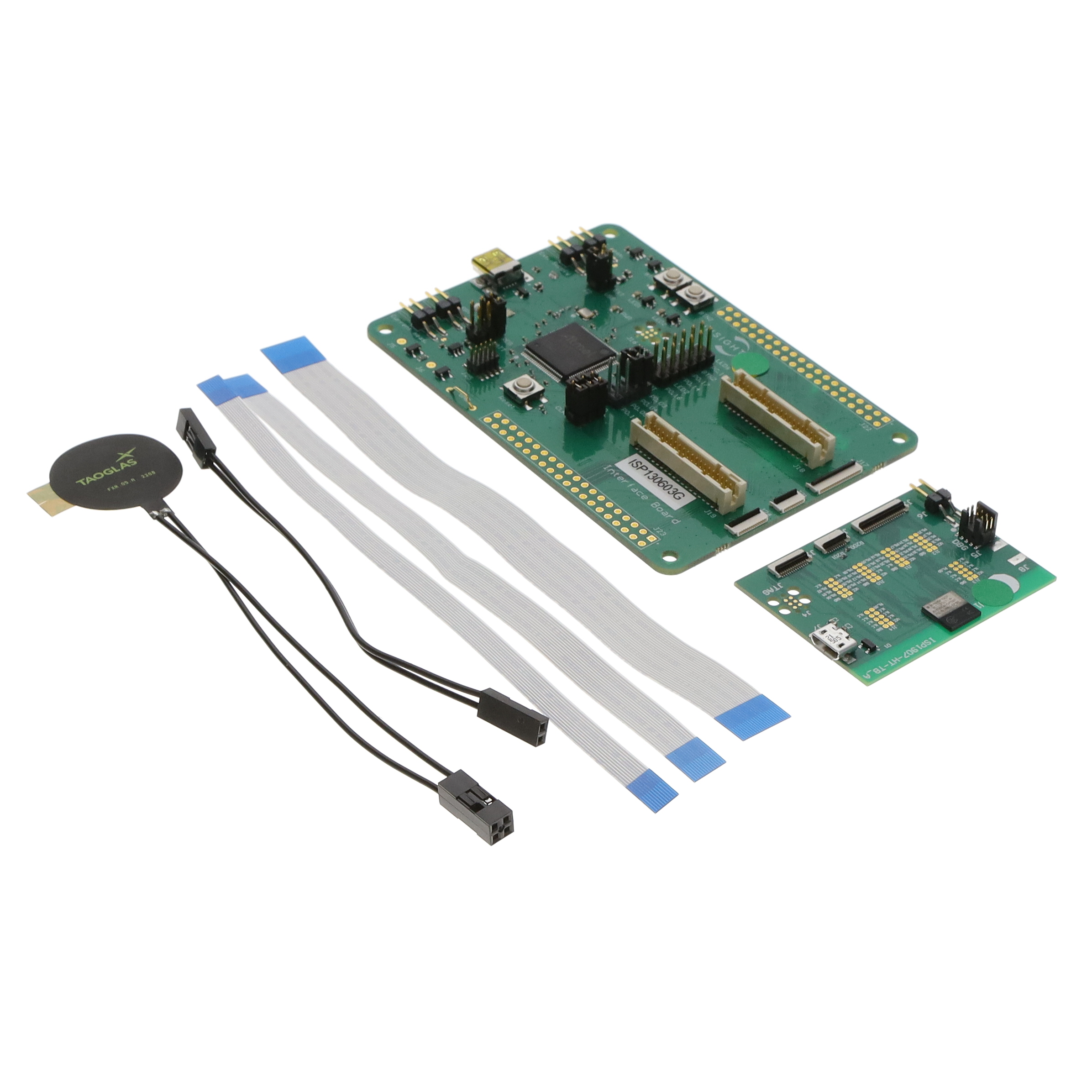

 Insight SIP | ISP1907 | ISP1907 | Board(s) | Board | 2.4 GHz | Bluetooth® 5.x (BLE) Transceiver | |||||||||||||||||||||
 Insight SIP | ISP1907 | ISP1907 | Board(s) | Board | 2.4 GHz | Bluetooth® 5.x (BLE) Transceiver |
