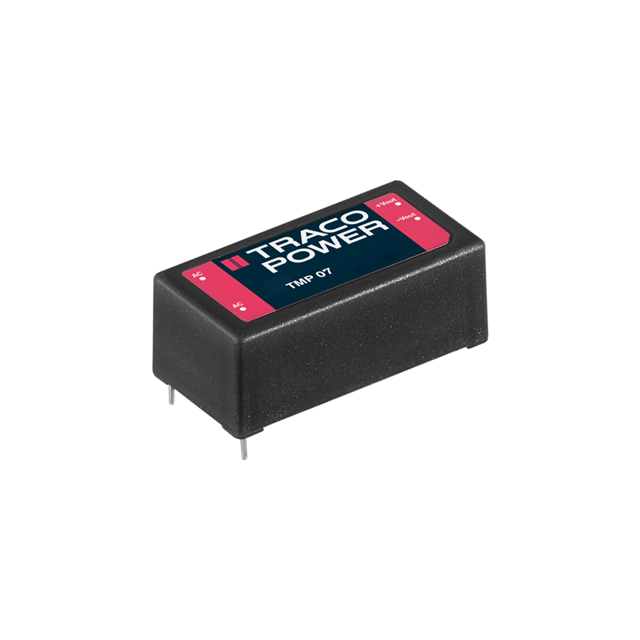

TMP 07 Series
Manufacturer: Traco Power
Beta
⌘K
AC/DC POWER SUPPLY SINGLE-OUT 5V 1.4A 7W 4-PIN
| Part | Line Regulation | Load Regulation | Voltage - Input [Min] | Voltage - Input [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Efficiency | Current - Output (Max) [Max] | Power (Watts) | Type | Mounting Type | Package / Case | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Approval Agency | Voltage - Output 1 | Number of Outputs | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Traco Power | 1 % | ±1% | 85 VAC 120 VDC | 264 VAC 370 VDC | 70 °C | -25 °C | ITE (Commercial) | 73 % | 1.4 A | 7 W | Enclosed | Through Hole | 4-DIP Module | 0.77 in | 50.8 mm | 25.4 mm | 2 in | 1 " | 19.5 mm | CB CE cULus cURus | 5 V | 1 | OTP SCP Universal Input |
Traco Power | 1 % | ±1% | 85 VAC 120 VDC | 264 VAC 370 VDC | 70 °C | -25 °C | ITE (Commercial) | 78 % | 583 mA | 7 W | Enclosed | Through Hole | 4-DIP Module | 0.77 in | 50.8 mm | 25.4 mm | 2 in | 1 " | 19.5 mm | CB CE cULus cURus | 12 V | 1 | OTP SCP Universal Input |
Traco Power | 1 % | ±1% | 85 VAC 120 VDC | 264 VAC 370 VDC | 70 °C | -25 °C | ITE (Commercial) | 78 % | 291 mA | 7 W | Enclosed | Through Hole | 4-DIP Module | 0.77 in | 50.8 mm | 25.4 mm | 2 in | 1 " | 19.5 mm | CB CE cULus cURus | 24 V | 1 | OTP SCP Universal Input |
Traco Power | 85 VAC 120 VDC | 264 VAC 370 VDC | 70 °C | -25 °C | ITE (Commercial) | 78 % | 466 mA | 7 W | Enclosed | Through Hole | 4-DIP Module | 0.77 in | 50.8 mm | 25.4 mm | 2 in | 1 " | 19.5 mm | CB CE cULus cURus | 15 V | 1 | OTP SCP Universal Input |
