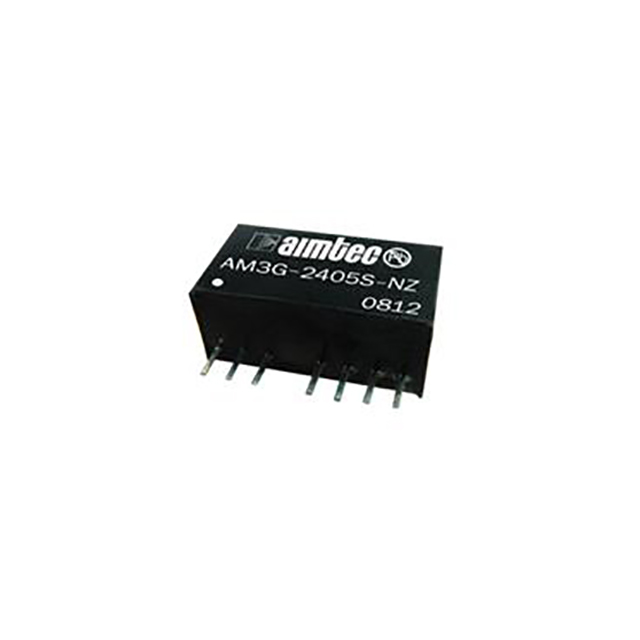

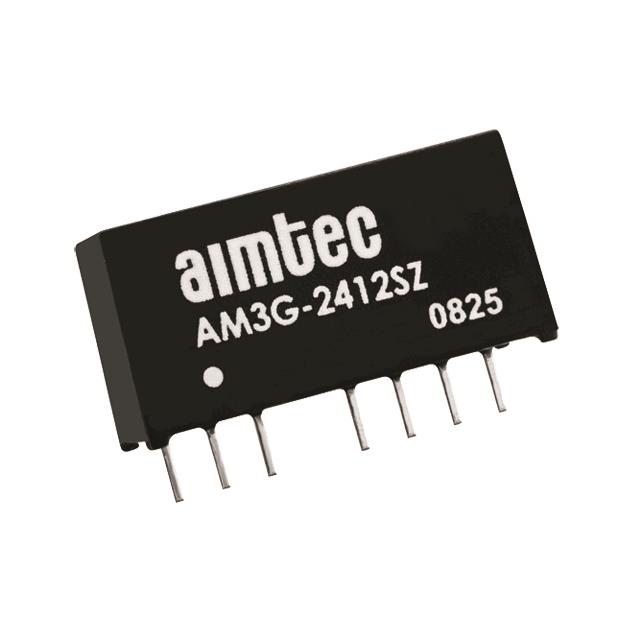

AM3G-0505 Series
Manufacturer: aimtec
Beta
⌘K
DC DC CONVERTER 5V 2.5W
| Part | Voltage - Input (Max) [Max] | Voltage - Output 1 | Applications | Efficiency | Features | Package / Case | Supplier Device Package | Voltage - Isolation | Operating Temperature [Min] | Operating Temperature [Max] | Current - Output (Max) [Max] | Voltage - Input (Min) [Min] | Number of Outputs | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Type | Mounting Type | Approval Agency | Power (Watts) | Voltage - Output 2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 aimtec | 9 V | 5 V | ITE (Commercial) | 73 % | Remote On/Off | 8-SIP Module | 8-SIP | 1.5 kV | -40 °C | 100 °C | 500 mA | 4.5 V | 1 | 0.47 " | 9.5 mm | 0.87 in | 12 mm | 0.37 in | 22 mm | Isolated Module | Through Hole | |||
 aimtec | 9 V | 5 V | ITE (Commercial) | 77 % | Remote On/Off | 8-SIP Module 7 Leads | 3000 V | -40 C | 71 °C | 0.3 A | 4.5 V | 2 | 0.44 in | 9.2 mm | 0.86 " | 11.2 mm | 0.36 in | 21.9 mm | Isolated Module | Through Hole | CE cURus UL | 3 W | -5 V |
