PSMN4 Series

Catalog

MOSFET N-CH 80V 120A I2PAK

Part	Drain to Source Voltage (Vdss)	Current - Continuous Drain (Id) @ 25°C	Drive Voltage (Max Rds On, Min Rds On)	Vgs (Max)	FET Type	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Power Dissipation (Max) [Max]	Supplier Device Package	Package / Case	Technology	Input Capacitance (Ciss) (Max) @ Vds	Gate Charge (Qg) (Max) @ Vgs [Max]
Freescale Semiconductor - NXP PSMN4R3-80ES,127

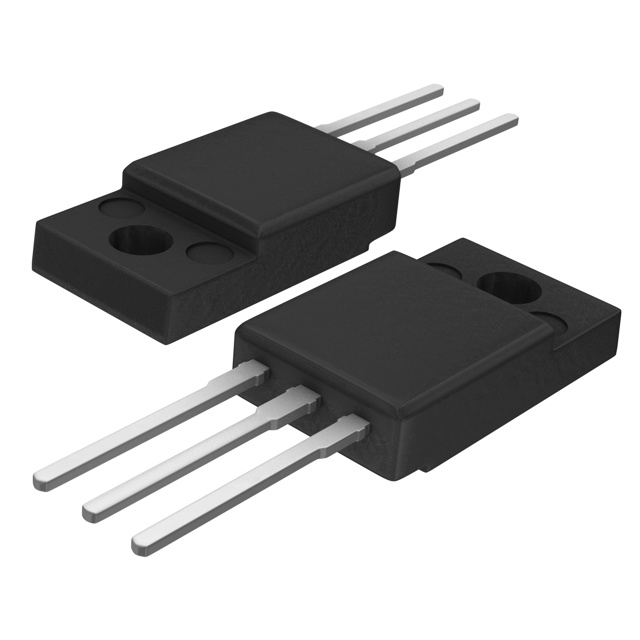

Freescale Semiconductor - NXP PSMN4R6-100XS,127	100 V	70.4 A	10 V	20 V	N-Channel	Through Hole	-55 °C	175 ░C	63.8 W	TO-220F	TO-220-3 Full Pack Isolated Tab	MOSFET (Metal Oxide)	9900 pF	153 nC
