ATSAMA5D24 Series

Catalog

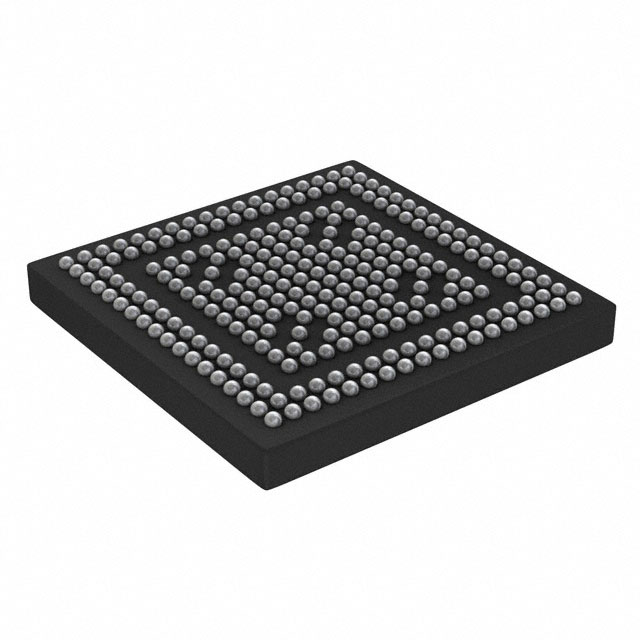

IC MPU SAMA5D2 500MHZ 256TFBGA

Part	USB	Voltage - I/O	Co-Processors/DSP	Core Processor	Speed	Operating Temperature [Max]	Operating Temperature [Min]	RAM Controllers	Ethernet	Ethernet [Max]	Ethernet [Min]	Display & Interface Controllers	Package / Case	Supplier Device Package	Additional Interfaces	Mounting Type	Security Features	Number of Cores/Bus Width
Microchip Technology ATSAMA5D24A-CUR	USB 2.0 + HSIC	3.3 V	Multimedia NEON™ MPE	ARM® Cortex®-A5	500 MHz	85 °C	-40 °C	DDR2 DDR3 DDR3L LPDDR1 LPDDR2 LPDDR3 QSPI	1	100 Mbps	10 Mbps	Keyboard LCD Touchscreen	256-TFBGA	256-TFBGA (8x8)	I2C QSPI SMC SPI SPS UART USART	Surface Mount	ARM TZ Boot Security Cryptography RTIC Secure Fusebox Secure JTAG Secure Memory Secure RTC	1 Core 32 Bit
Microchip Technology ATSAMA5D24B-CUR	USB 2.0 + HSIC	3.3 V	Multimedia NEON™ MPE	ARM® Cortex®-A5	500 MHz	85 °C	-40 °C	DDR2 DDR3 DDR3L LPDDR1 LPDDR2 LPDDR3 QSPI	1	100 Mbps	10 Mbps	Keyboard LCD Touchscreen	256-TFBGA	256-TFBGA (8x8)	I2C QSPI SMC SPI SPS UART USART	Surface Mount	ARM TZ Boot Security Cryptography RTIC Secure Fusebox Secure JTAG Secure Memory Secure RTC	1 Core 32 Bit
Microchip Technology ATSAMA5D24B-CU	USB 2.0 + HSIC	3.3 V	Multimedia NEON™ MPE	ARM® Cortex®-A5	500 MHz	85 °C	-40 °C	DDR2 DDR3 DDR3L LPDDR1 LPDDR2 LPDDR3 QSPI	1	100 Mbps	10 Mbps	Keyboard LCD Touchscreen	256-TFBGA	256-TFBGA (8x8)	I2C QSPI SMC SPI SPS UART USART	Surface Mount	ARM TZ Boot Security Cryptography RTIC Secure Fusebox Secure JTAG Secure Memory Secure RTC	1 Core 32 Bit
Microchip Technology ATSAMA5D24C-CUR	USB 2.0 + HSIC	3.3 V	Multimedia NEON™ MPE	ARM® Cortex®-A5	500 MHz	85 °C	-40 °C	DDR2 DDR3 DDR3L LPDDR1 LPDDR2 LPDDR3 QSPI	1	100 Mbps	10 Mbps	Keyboard LCD Touchscreen	256-TFBGA	256-TFBGA (8x8)	I2C QSPI SMC SPI SPS UART USART	Surface Mount	ARM TZ Boot Security Cryptography RTIC Secure Fusebox Secure JTAG Secure Memory Secure RTC	1 Core 32 Bit
Microchip Technology ATSAMA5D24C-CU	USB 2.0 + HSIC	3.3 V	Multimedia NEON™ MPE	ARM® Cortex®-A5	500 MHz	85 °C	-40 °C	DDR2 DDR3 DDR3L LPDDR1 LPDDR2 LPDDR3 QSPI	1	100 Mbps	10 Mbps	Keyboard LCD Touchscreen	256-TFBGA	256-TFBGA (8x8)	I2C QSPI SMC SPI SPS UART USART	Surface Mount	ARM TZ Boot Security Cryptography RTIC Secure Fusebox Secure JTAG Secure Memory Secure RTC	1 Core 32 Bit
Microchip Technology ATSAMA5D24A-CU	USB 2.0 + HSIC	3.3 V	Multimedia NEON™ MPE	ARM® Cortex®-A5	500 MHz	85 °C	-40 °C	DDR2 DDR3 DDR3L LPDDR1 LPDDR2 LPDDR3 QSPI	1	100 Mbps	10 Mbps	Keyboard LCD Touchscreen	256-TFBGA	256-TFBGA (8x8)	I2C QSPI SMC SPI SPS UART USART	Surface Mount	ARM TZ Boot Security Cryptography RTIC Secure Fusebox Secure JTAG Secure Memory Secure RTC	1 Core 32 Bit
