40 V, 300 mA General purpose Signal Schottky Diode
Description
AI
The BAT54 series uses 40 V Schottky barrier diodes packaged in SO123, SOD323, SOD523, SOT-23, or SOT-323.
Beta
⌘K
40 V, 300 mA General purpose Signal Schottky Diode
40 V, 300 mA General purpose Signal Schottky Diode
| Part | Technology | Voltage - Forward (Vf) (Max) @ If [Max] | Supplier Device Package | Current - Reverse Leakage @ Vr | Mounting Type | Operating Temperature - Junction [Min] | Operating Temperature - Junction [Max] | Capacitance @ Vr, F | Voltage - DC Reverse (Vr) (Max) [Max] | Speed | Package / Case | Current - Average Rectified (Io) | Reverse Recovery Time (trr) | Current - Average Rectified (Io) (per Diode) | Diode Configuration |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 STMicroelectronics | Schottky | 900 mV | SOD-523 | 1 µA | Surface Mount | -40 °C | 150 °C | 10 pF | 40 V | 200 mA 500 ns | SC-79 SOD-523 | 300 mA | 5 ns | ||
 STMicroelectronics | Schottky | 900 mV | SOD-323 | 1 µA | Surface Mount | -40 °C | 150 °C | 10 pF | 40 V | 200 mA 500 ns | SC-76 SOD-323 | 300 mA | 5 ns | ||
 STMicroelectronics | Schottky | 900 mV | SOT-323 | 1 µA | Surface Mount | -40 °C | 150 °C | 40 V | 200 mA 500 ns | SC-70 SOT-323 | 5 ns | 300 mA | 1 Pair Common Cathode | ||
 STMicroelectronics | Schottky | 900 mV | SOT-23-3 | 1 µA | Surface Mount | -40 °C | 150 °C | 10 pF | 40 V | 200 mA 500 ns | SC-59 SOT-23-3 TO-236-3 | 300 mA | 5 ns | ||
 STMicroelectronics | Schottky | 900 mV | SOT-323 | 1 µA | Surface Mount | -40 °C | 150 °C | 40 V | 200 mA 500 ns | SC-70 SOT-323 | 5 ns | 300 mA | 1 Pair Common Anode | ||
 STMicroelectronics | Schottky | 900 mV | SOT-23-3 | 1 µA | Surface Mount | -40 °C | 150 °C | 40 V | 200 mA 500 ns | SC-59 SOT-23-3 TO-236-3 | 5 ns | 300 mA | 1 Pair Common Cathode | ||
STMicroelectronics | Schottky | 900 mV | SOT-323 | 1 µA | Surface Mount | -40 °C | 150 °C | 40 V | 200 mA 500 ns | SC-70 SOT-323 | 5 ns | 300 mA | 1 Pair Series Connection | ||
 STMicroelectronics | Schottky | 900 mV | SOT-23-3 | 1 µA | Surface Mount | -40 °C | 150 °C | 40 V | 200 mA 500 ns | SC-59 SOT-23-3 TO-236-3 | 5 ns | 300 mA | 1 Pair Common Anode | ||

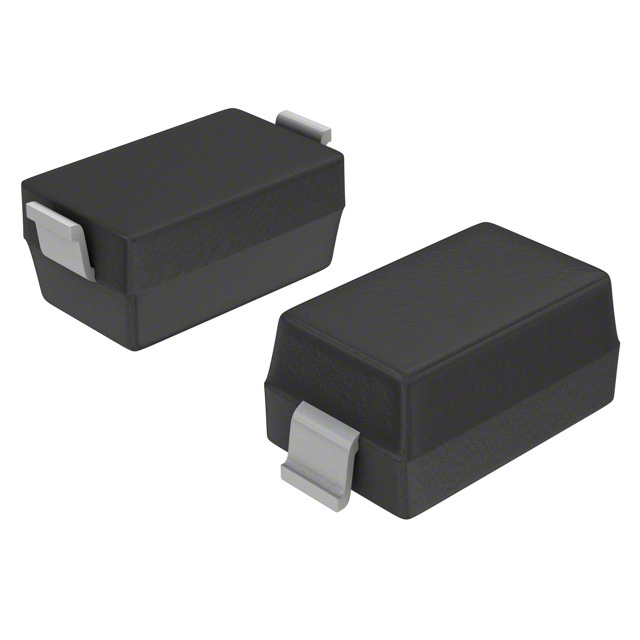

 STMicroelectronics | Schottky | 900 mV | SOD-123 | 1 µA | Surface Mount | -40 °C | 150 °C | 10 pF | 40 V | 200 mA 500 ns | SOD-123 | 300 mA | 5 ns | ||
STMicroelectronics | Schottky | 900 mV | SOT-23-3 | 1 µA | Surface Mount | -40 °C | 150 °C | 40 V | 200 mA 500 ns | SC-59 SOT-23-3 TO-236-3 | 5 ns | 300 mA | 1 Pair Series Connection |
