DF37NB Series

Catalog

BOARD TO BOARD & MEZZANINE CONNECTORS 0.4MM 20P RECPT VERT SMT

Part	Mounting Type	Contact Finish	Mated Stacking Heights	Features	Height Above Board	Height Above Board	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Number of Positions	Pitch	Pitch	Number of Rows [custom]	Height Above Board [z]	Height Above Board [z]

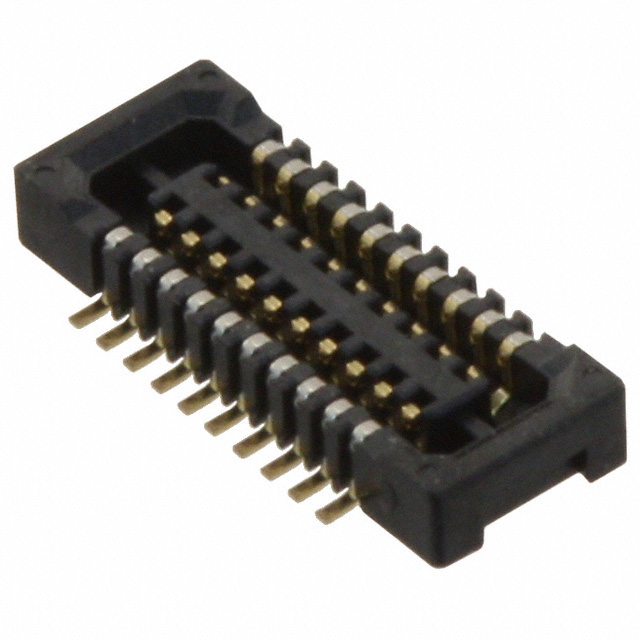

Hirose Electric Co Ltd DF37NB-20DS-0.4V(75)	Surface Mount	Gold	0.98 mm	Solder Retention	0.038 in	0.97 mm	0.1 Ám	4 Áin	Receptacle Center Strip Contacts	20	0.4 mm	0.016 in	2
Hirose Electric Co Ltd DF37NB-20DS-0.4V(53)	Surface Mount	Gold	0.98 mm	Solder Retention	0.038 in	0.97 mm			Receptacle Center Strip Contacts	20	0.4 mm	0.016 in	2

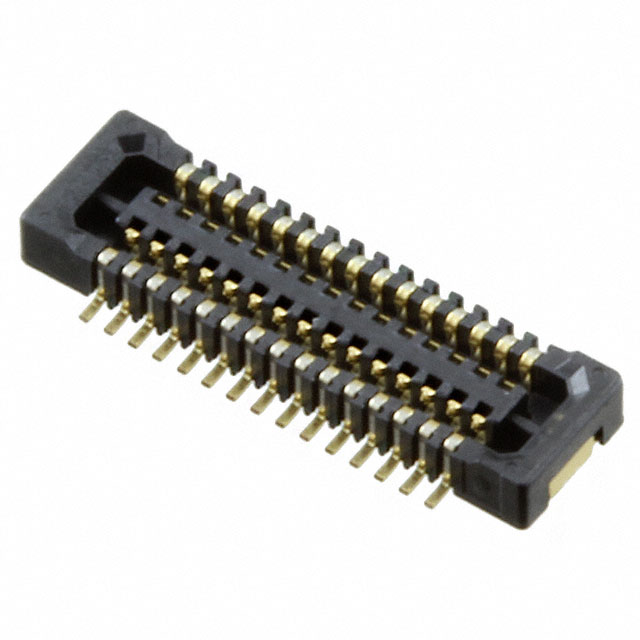

Hirose Electric Co Ltd DF37NB-30DS-0.4V(51)	Surface Mount	Gold	0.98 mm	Solder Retention	0.038 in	0.97 mm			Receptacle Center Strip Contacts	30	0.4 mm	0.016 in	2
Hirose Electric Co Ltd DF37NB-24DS-0.4V(73)
Hirose Electric Co Ltd DF37NB-24DS-0.4V(58)
Hirose Electric Co Ltd DF37NB-44DS-0.4V(75)	Surface Mount	Gold	0.98 mm	Solder Retention	0.038 in	0.97 mm	0.1 Ám	4 Áin	Receptacle Center Strip Contacts	44	0.4 mm	0.016 in	2
Hirose Electric Co Ltd DF37NB-74DS-0.4V(75)	Surface Mount	Gold	0.98 mm	Solder Retention	0.038 in	0.97 mm			Receptacle Center Strip Contacts	74	0.4 mm	0.016 in	2
Hirose Electric Co Ltd DF37NB-20DS-0.4V(74)	Surface Mount	Gold	0.98 mm	Solder Retention	0.038 in	0.97 mm	0.1 Ám	4 Áin	Receptacle Center Strip Contacts	20	0.4 mm	0.016 in	2
Hirose Electric Co Ltd DF37NB(1.5)-24DS-0.4V(53)	Surface Mount	Gold	1.5 mm	Solder Retention			0.05 Ám	1.97 Áin	Receptacle Center Strip Contacts	24	0.4 mm	0.016 in	2	0.059 in	1.5 mm
Hirose Electric Co Ltd DF37NB-40DS-0.4V(53)	Surface Mount	Gold	0.98 mm	Solder Retention	0.038 in	0.97 mm			Receptacle Center Strip Contacts	40	0.4 mm	0.016 in	2
