DF3-6 Series

Catalog

CONN RCPT 6POS IDC 28AWG TIN

Part	Wire Gauge	Contact Finish	Color	Cable Termination	Number of Positions	Pitch [x]	Pitch [x]	Contact Type	Number of Rows	Wire Type	Connector Type	Mounting Type	Features	Contact Material	Number of Positions Loaded	Contact Shape	Style	Shrouding	Material Flammability Rating	Contact Finish - Post	Insulation Material	Insulation Color	Pitch - Mating	Pitch - Mating	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Termination	Current Rating (Amps)	Note	Contact Termination	Mated Stacking Heights [Min] [z]	Mated Stacking Heights [Max] [z]	Voltage Rating	Contact Finish - Mating	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Mating	Contact Length - Mating	Contact Length - Post [x]	Contact Length - Post [x]
Hirose Electric Co Ltd DF3-6S-2R28	28 AWG	Tin	Black	IDC	6	0.079 in	2 mm	Female Socket	1	Discrete	Receptacle	Free Hanging (In-Line)	Closed End
Hirose Electric Co Ltd DF3-6P-2H(20)					6			Male Pin	1		Header	Right Angle Surface Mount	Board Guide	Brass	All	Circular	Board to Board Cable	Shrouded - 4 Wall	UL94 V-0	Tin	Nylon Polyamide (PA)	Beige	0.079 "	2 mm	Push-Pull	-55 C	105 ░C	5.6 mm	0.22 in	Solder	3 A

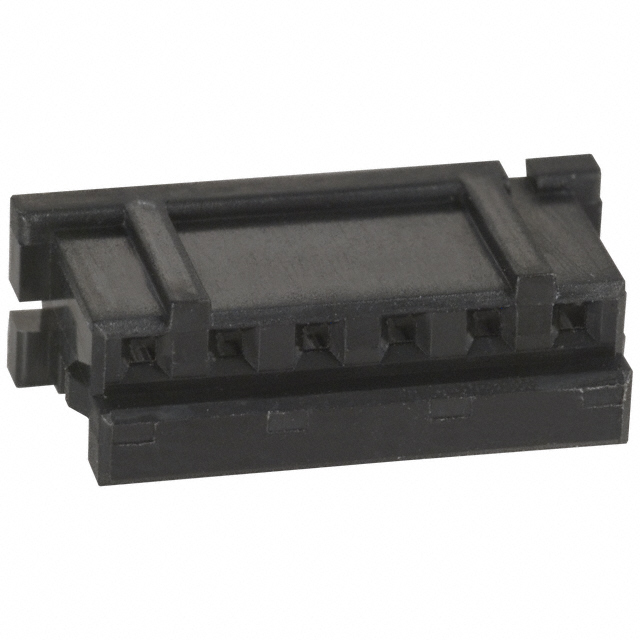

Hirose Electric Co Ltd DF3-6S-2C			Black		6	0.079 in	2 mm	Female Socket	1		Receptacle	Free Hanging (In-Line)									Nylon Polyamide (PA)					-55 C	105 ░C					Contacts Not Included	Crimp
Hirose Electric Co Ltd DF3-6S-2R26(05)	26 AWG	Tin	Black	IDC	6	0.079 in	2 mm	Female Socket	1	Discrete	Receptacle	Free Hanging (In-Line)	Closed End

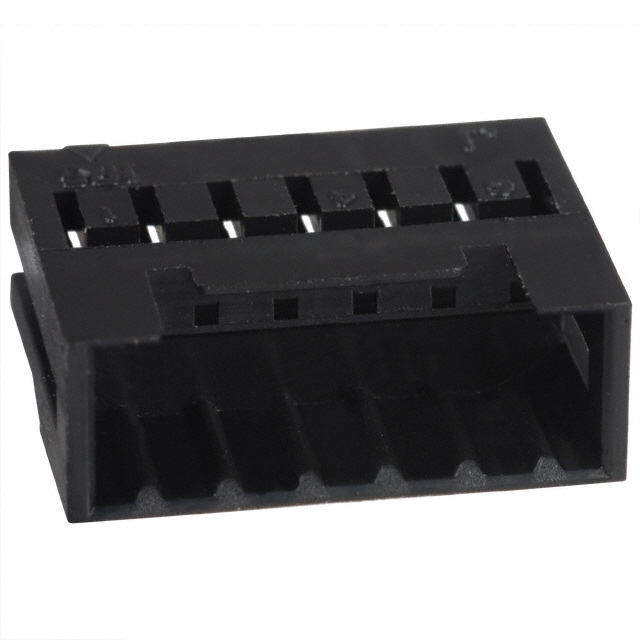

Hirose Electric Co Ltd DF3-6EP-2C			Black		6	0.079 in	2 mm	Male Pin	1		Plug	Free Hanging (In-Line)									Nylon Polyamide (PA)					-55 C	105 ░C					Contacts Not Included	Crimp
Hirose Electric Co Ltd DF3-6S-2R28(05)	28 AWG	Tin	Black	IDC	6	0.079 in	2 mm	Female Socket	1	Discrete	Receptacle	Free Hanging (In-Line)	Closed End
Hirose Electric Co Ltd DF3-6S-2C(16)

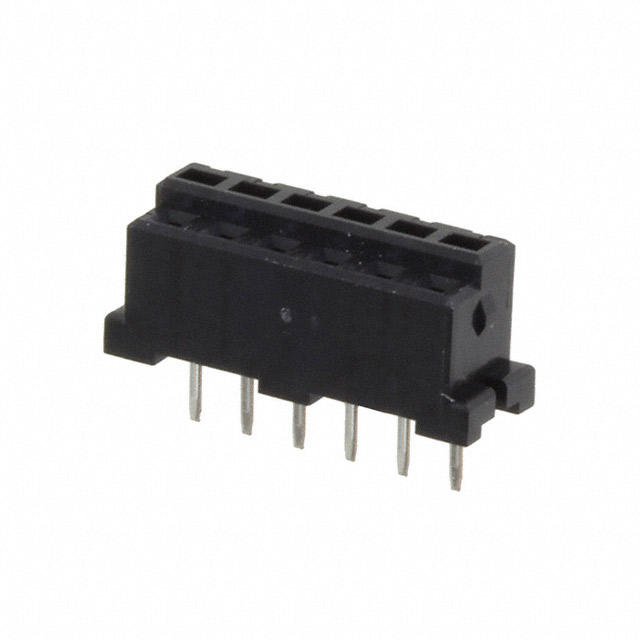

Hirose Electric Co Ltd DF3-6S-2DSA(50)					6			Female Socket	1		Receptacle	Through Hole		Phosphor Bronze	All	Square	Board to Board Cable		UL94 V-0	Tin	Nylon Polyamide (PA)	Black	0.079 "	2 mm	Friction Lock	-30 ░C	85 °C	5.9 mm	0.232 in	Solder	3 A			6.6 mm	7.5 mm	30 VAC	Gold	0.118 in	3 mm
Hirose Electric Co Ltd DF3-6S-2DSA(55)					6			Female Socket	1		Receptacle	Through Hole		Phosphor Bronze	All	Square	Board to Board Cable		UL94 V-0	Tin	Nylon Polyamide (PA)	Black	0.079 "	2 mm	Friction Lock	-30 ░C	85 °C	5.9 mm	0.232 in	Solder	3 A			6.6 mm	7.5 mm	30 VAC	Gold	0.118 in	3 mm	39.4 çin	1 çm	8 µin	0.203 µm

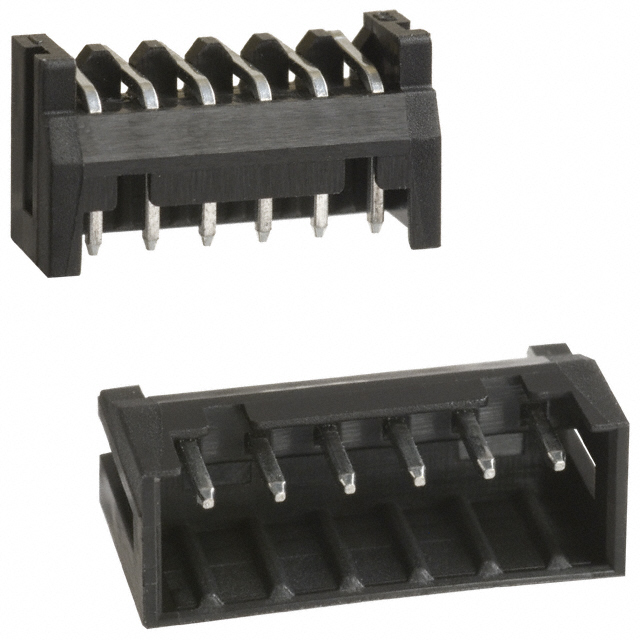

Hirose Electric Co Ltd DF3-6P-2DS					6			Male Pin	1		Header	Right Angle Through Hole		Brass	All	Square	Board to Board Cable	Shrouded - 4 Wall	UL94 V-0	Tin	Nylon Polyamide (PA)	Black	0.079 "	2 mm	Push-Pull	-55 C	105 ░C	5 mm	0.197 "	Press-Fit Solder	3 A													0.122 in	3.1 mm	0.114 in	2.9 mm
