A2-4PA-2 Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K

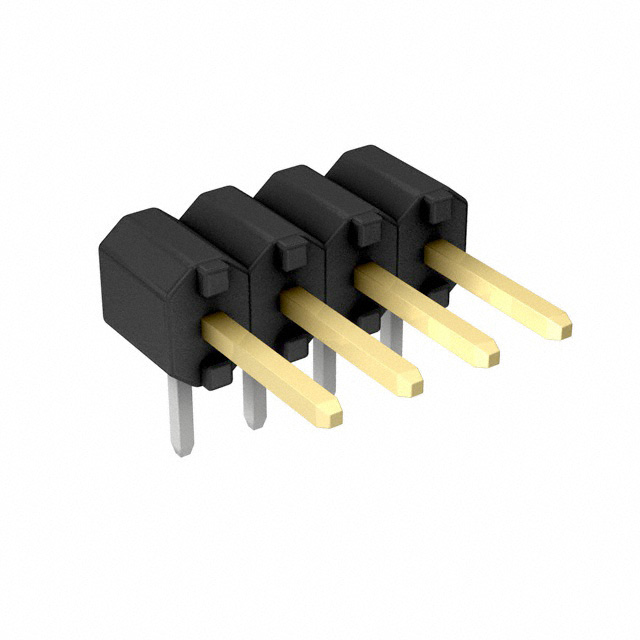

CONN HEADER R/A 4POS 2.54MM
| Part | Contact Finish Thickness - Post [custom] | Contact Finish Thickness - Post [custom] | Current Rating (Amps) | Shrouding | Material Flammability Rating | Connector Type | Contact Shape | Voltage Rating | Contact Material | Insulation Material | Contact Finish - Mating | Insulation Height [z] | Insulation Height [z] | Fastening Type | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Style | Number of Positions Loaded | Contact Length - Post | Contact Length - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Pitch - Mating | Pitch - Mating | Number of Rows | Termination | Insulation Color | Number of Positions | Contact Length - Mating | Contact Length - Mating | Mounting Type | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | 78.7 µin | 2 µm | 3 A | Unshrouded | UL94 V-0 | Header | Square | 200 V | Brass | Polybutylene Terephthalate (PBT) | Gold | 4 mm | 0.157 in | Push-Pull | Male Pin | -55 C | 85 °C | Board to Board Cable | All | 0.138 in | 3.5 mm | 8 µin | 0.203 µm | 0.1 " | 2.54 mm | 1 | Solder | Black | 4 | 6 mm | 0.236 in | Right Angle Through Hole | Tin |
