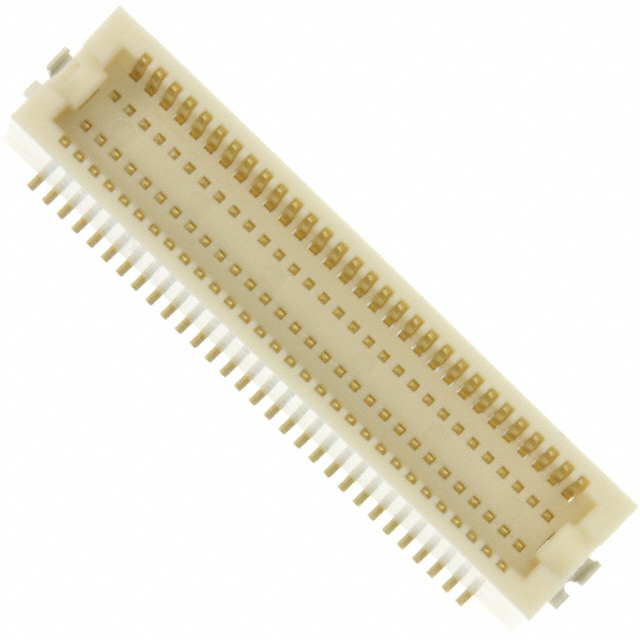

DF12 (5.0) Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONN BOARD TO BOARD HDR 20 POS 0.5MM SOLDER ST TOP ENTRY SMD T/R
| Part | Connector Type | Contact Finish Thickness | Contact Finish Thickness | Height Above Board | Height Above Board | Mated Stacking Heights | Pitch | Pitch | Mounting Type | Features | Number of Positions | Contact Finish | Number of Rows [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | Header Outer Shroud Contacts | 0.203 çm | 8 µin | 0.169 in | 4.3 mm | 5 mm | 0.02 " | 0.5 mm | Surface Mount | Board Guide Solder Retention | 20 | Gold | 2 |
 Hirose Electric Co Ltd | Header Outer Shroud Contacts | 0.203 çm | 8 µin | 0.169 in | 4.3 mm | 5 mm | 0.02 " | 0.5 mm | Surface Mount | Board Guide Solder Retention | 50 | Gold | 2 |
 Hirose Electric Co Ltd | Header Outer Shroud Contacts | 0.169 in | 4.3 mm | 5 mm | 0.02 " | 0.5 mm | Surface Mount | Board Guide Solder Retention | 20 | Gold | 2 | ||
 Hirose Electric Co Ltd | Header Outer Shroud Contacts | 0.169 in | 4.3 mm | 5 mm | 0.02 " | 0.5 mm | Surface Mount | Board Guide Solder Retention | 60 | Gold | 2 | ||
Hirose Electric Co Ltd | Header Outer Shroud Contacts | 0.203 çm | 8 µin | 0.169 in | 4.3 mm | 5 mm | 0.02 " | 0.5 mm | Surface Mount | Board Guide Solder Retention | 60 | Gold | 2 |
