PIC16F883 Series

Catalog

8 BIT MCU, FLASH, PIC16 FAMILY PIC16F88X SERIES MICROCONTROLLERS, PIC16, 20 MHZ, 7 KB, 28 PINS

Part	Data Converters	Data Converters	Connectivity	Program Memory Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of I/O	EEPROM Size	Program Memory Size	RAM Size	Mounting Type	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Speed	Core Size	Package / Case	Package / Case [x]	Package / Case [y]	Supplier Device Package	Core Processor	Oscillator Type	Package / Case [custom]	Package / Case [custom]	Package / Case	Package / Case

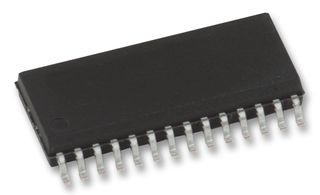

Microchip Technology PIC16F883T-I/SO	A/D	10 b 11	I2C SPI UART/USART	FLASH	85 °C	-40 °C	24	256 x 8	7 KB	256 x 8	Surface Mount	5.5 V	2 V	20 MHz	8-Bit	28-SOIC	0.295 in	7.5 mm	28-SOIC	PIC	Internal
Microchip Technology PIC16F883-E/ML	A/D	10 b 11	I2C SPI UART/USART	FLASH	125 °C	-40 °C	24	256 x 8	7 KB	256 x 8	Surface Mount	5.5 V	2 V	20 MHz	8-Bit	28-VQFN Exposed Pad			28-QFN (6x6)	PIC	Internal
Microchip Technology PIC16F883-E/SS	A/D	10 b 11	I2C SPI UART/USART	FLASH	125 °C	-40 °C	24	256 x 8	7 KB	256 x 8	Surface Mount	5.5 V	2 V	20 MHz	8-Bit	28-SSOP			28-SSOP	PIC	Internal	0.209 in	5.3 mm
Microchip Technology PIC16F883T-I/SS	A/D	10 b 11	I2C SPI UART/USART	FLASH	85 °C	-40 °C	24	256 x 8	7 KB	256 x 8	Surface Mount	5.5 V	2 V	20 MHz	8-Bit	28-SSOP			28-SSOP	PIC	Internal	0.209 in	5.3 mm
Microchip Technology PIC16F883-E/SO	A/D	10 b 11	I2C SPI UART/USART	FLASH	125 °C	-40 °C	24	256 x 8	7 KB	256 x 8	Surface Mount	5.5 V	2 V	20 MHz	8-Bit	28-SOIC	0.295 in	7.5 mm	28-SOIC	PIC	Internal
Microchip Technology PIC16F883-I/SP	A/D	10 b 11	I2C SPI UART/USART	FLASH	85 °C	-40 °C	24	256 x 8	7 KB	256 x 8	Through Hole	5.5 V	2 V	20 MHz	8-Bit	28-DIP			28-SPDIP	PIC	Internal			0.3 in	7.62 mm
Microchip Technology PIC16F883T-I/ML	A/D	10 b 11	I2C SPI UART/USART	FLASH	85 °C	-40 °C	24	256 x 8	7 KB	256 x 8	Surface Mount	5.5 V	2 V	20 MHz	8-Bit	28-VQFN Exposed Pad			28-QFN (6x6)	PIC	Internal

Catalog

Key Features

• * Factory calibrated to ±1%

• * Software selectable frequency range of 8 MHz to 32 kHz

• * Software tunable

• * Two-Speed Start-Up mode

• * Fail-safe clock monitoring for critical applications

• * Clock mode switching during operation for low-power operation

• * Power-Saving Sleep mode

• * Power-on Reset (POR)

• * Selectable Brown-out Reset (BOR) voltage

• * Extended Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation

• * In-Circuit Serial Programming™ (ICSP™) via two pins

• * In-Circuit Debug (ICD) via two pins

• * 100,000 erase/write cycle enhanced Flash program memory, typical

• * 1,000,000 erase/write cycle data EEPROM memory, typical

• * Data EEPROM retention > 40 years

• * Self-reprogrammable under software control

• * Programmable code protection

• * 1 input only pin

• * 25 I/O

• * High sink/source current 25 mA

• * Interrupt-on-pin change option

• * TMR0: 8-bit timer/counter with 8-bit prescaler

• * TMR1 enhanced: 16-bit timer/counter with prescaler, External Gate Input mode and

• dedicated low-power 32 kHz oscillator

• * TMR2: 8-bit timer/counter with 8-bit period register, prescaler and postscaler

• * Capture/Compare/PWM (CCP) module

• * Enhanced Capture/Compare/PWM (ECCP) module with auto-shutdown and PWM steering

• * Master Synchronous Serial Port (MSSP) module SPI™ mode, I2C™ mode with address mask

• capability

• * Supports RS-485, RS-232 and LIN compatibility

• * Auto-Baud Detect

• * Auto-wake-up on Start bit

• * Ultra Low-Power Wake-up (ULPWU)

• * 10-bit 11 channel Analog-to-Digital (A/D) Converter

• * Programmable on-chip Voltage Reference (CVREF) module (% of VDD)

• * Fixed 0.6 Vref

• * Comparator inputs and outputs externally accessible

• * SR Latch mode

Description

This powerful yet easy-to-program (only 35 single word instructions) CMOS FLASH-based 8-bit microcontroller packs Microchip's powerful PIC® architecture into a 28 pin package.The PIC16F883 features 256 bytes of EEPROM data memory, self programming, an ICD, 2 Comparators, 11 channels of 10-bit Analog-to-Digital (A/D) converter, 1 capture/compare/PWM and 1 Enhanced capture/compare/PWM functions, a synchronous serial port that can be configured as either 3-wire Serial Peripheral Interface (SPI™) or the 2-wire Inter-Integrated Circuit (I²C™) bus and an Enhanced Universal Asynchronous Receiver Transmitter (EUSART). All of these features make it ideal for more advanced level A/D applications in automotive, industrial, appliances or consumer applications.
