V7-3 Series

Catalog

MICROSWITCH, MINIATURE, PIN PLUNGER, SPDT, QUICK CONNECT, SOLDER, 10 A, 250 VDC

Part	Overtravel [custom]	Overtravel [custom]	Termination Style	Voltage Rating - AC	Actuator Type	Mechanical Life	Pretravel	Pretravel	Operating Force	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Differential Travel [x]	Differential Travel [x]	Voltage Rating - DC	Current Rating (Amps)	Switch Function	Operating Position	Operating Position	Mounting Type	Electrical Life

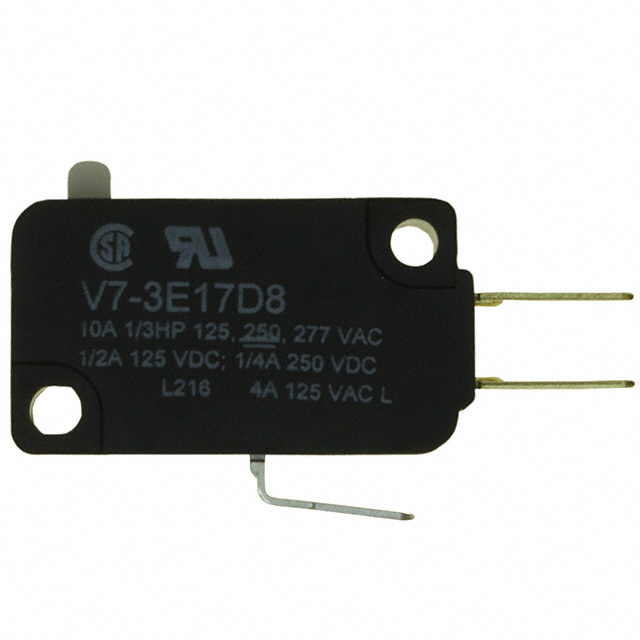

Honeywell Sensing and Productivity Solutions V7-3E17D8	1.27 mm	0.05 "	Quick Connect	125 V	Round (Pin Plunger)	10000000 Cycles	1.2 mm	0.047 in	50 gf	SPDT	85 °C	-40 C	0.01 in	0.25 mm	125 VDC	0.5 mA 10 A	On-Mom	14.7 mm	0.579 in	Chassis Mount	100000 Cycles
Honeywell Sensing and Productivity Solutions V7-3E27E9	1.27 mm	0.05 "	Quick Connect - 0.250" (6.3mm)	125 V	Round (Pin Plunger)	10000000 Cycles	1.2 mm	0.047 in	50 gf	SPST-NO	85 °C	-40 C	0.01 in	0.25 mm	125 VDC	0.5 mA 10 A	Off-Mom	14.7 mm	0.579 in	Chassis Mount	100000 Cycles
Honeywell Sensing and Productivity Solutions V7-3E19E9-022-1
Honeywell Sensing and Productivity Solutions V7-3E19E9-000-1
Honeywell Sensing and Productivity Solutions V7-3S17D8-207
Honeywell Sensing and Productivity Solutions V7-3E29E9	1.27 mm	0.05 "	Quick Connect - 0.250" (6.3mm)	125 V	Round (Pin Plunger)	10000000 Cycles	1.2 mm	0.047 in	50 gf	SPST-NO	85 °C	-40 C	0.01 in	0.25 mm	125 VDC	0.5 mA 10 A	Off-Mom	14.7 mm	0.579 in	Chassis Mount	100000 Cycles
Honeywell Sensing and Productivity Solutions V7-3S29E9-437-1
