UF3C065040 Series

Manufacturer: Qorvo

Catalog

MOSFET N-CH 650V 41A TO263

Part	Supplier Device Package	Vgs (Max)	Input Capacitance (Ciss) (Max) @ Vds	Power Dissipation (Max) [Max]	Rds On (Max) @ Id, Vgs	Drive Voltage (Max Rds On, Min Rds On)	Current - Continuous Drain (Id) @ 25°C	Drain to Source Voltage (Vdss)	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	FET Type	Gate Charge (Qg) (Max) @ Vgs [Max]	Vgs(th) (Max) @ Id

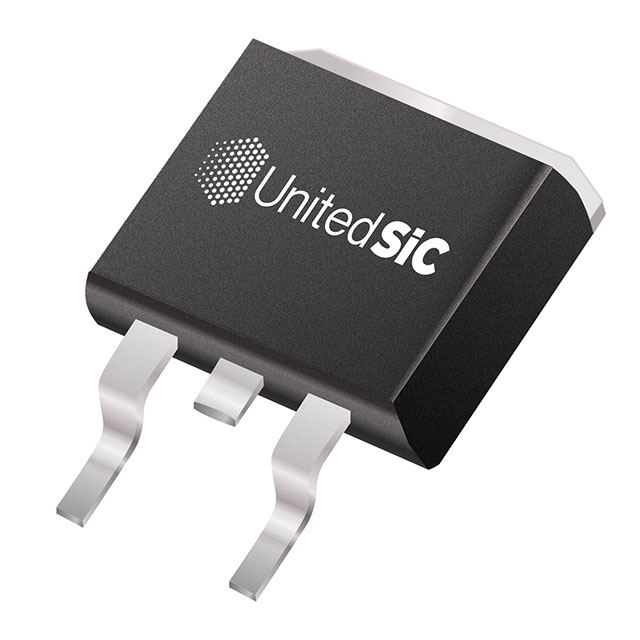

Qorvo UF3C065040B3	TO-263 (D2PAK)	25 V	1500 pF	176 W	52 mOhm	12 V	41 A	650 V	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	175 °C	-55 °C	Surface Mount	N-Channel	51 nC	6 V

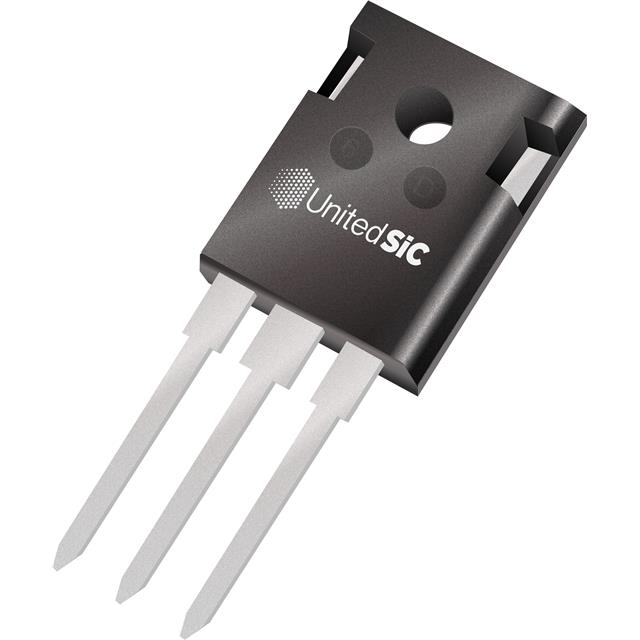

Qorvo UF3C065040K3S	TO-247-3	25 V	1500 pF	326 W	52 mOhm	12 V	54 A	650 V	TO-247-3	175 °C	-55 °C	Through Hole	N-Channel	51 nC	6 V

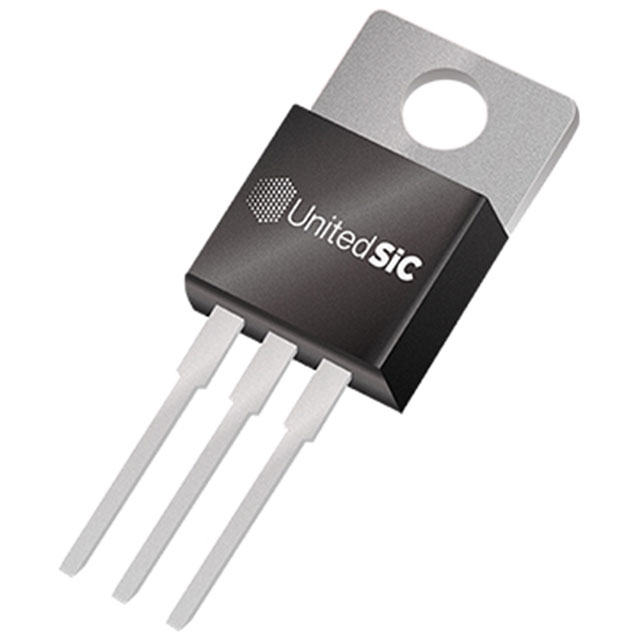

Qorvo UF3C065040T3S	TO-220-3	25 V	1500 pF	326 W	52 mOhm	12 V	54 A	650 V	TO-220-3	175 °C	-55 °C	Through Hole	N-Channel	51 nC	6 V
