FH64M Series

Catalog

CONN FPC TOP 15POS 0.25MM R/A

Part	Mating Cycles	Housing Color	Current Rating (Amps)	Contact Finish Thickness	Contact Finish Thickness	Actuator Color	Connector/Contact Type	Actuator Material	Contact Finish	Contact Material	Mounting Type	Flat Flex Type	Pitch	Pitch	Height Above Board [z]	Height Above Board [z]	Material Flammability Rating	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	FFC, FCB Thickness	Termination	Locking Feature	Number of Positions	Cable End Type	Housing Material
Hirose Electric Co Ltd FH64MA-15S-0.25SHW	10	Beige	0.2 A	1.25 Áin	0.03 Ám	Black	Contacts Top	Polyamide (PA) Nylon	Gold	Phosphor Bronze	Right Angle Surface Mount	FPC	0.01 in	0.25 mm	0.02 in	0.5 mm	UL94 V-0	30 VDC	-55 C	85 °C	0.12 mm	Solder	Backlock Flip Lock	15	Notched	Liquid Crystal Polymer (LCP) Halogen Free
Hirose Electric Co Ltd FH64M-11S-0.25SHW	10	Beige	0.2 A			Black	Contacts Top and Bottom	Polyamide (PA) Nylon	Gold	Phosphor Bronze	Right Angle Surface Mount	FPC	0.01 in	0.25 mm	0.02 in	0.5 mm	UL94 V-0	30 VDC	-55 C	85 °C	0.12 mm	Solder	Backlock Flip Lock	11	Straight	Liquid Crystal Polymer (LCP)
Hirose Electric Co Ltd FH64MA-19S-0.25SHW	10	Beige	0.2 A	1.25 Áin	0.03 Ám	Black	Contacts Top	Polyamide (PA) Nylon	Gold	Phosphor Bronze	Right Angle Surface Mount	FPC	0.01 in	0.25 mm	0.02 in	0.5 mm	UL94 V-0	30 VDC	-55 C	85 °C	0.12 mm	Solder	Backlock Flip Lock	19	Notched	Liquid Crystal Polymer (LCP) Halogen Free

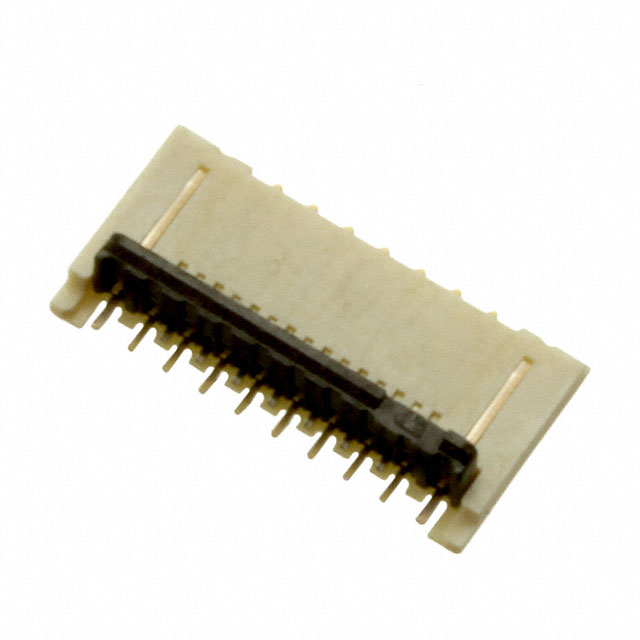

Hirose Electric Co Ltd FH64MA-15S-0.25SHW(99)	10	Beige	0.2 A	1.25 Áin	0.03 Ám	Black	Contacts Top	Polyamide (PA) Nylon	Gold	Phosphor Bronze	Right Angle Surface Mount	FPC	0.01 in	0.25 mm	0.02 in	0.5 mm	UL94 V-0	30 VDC	-55 C	85 °C	0.12 mm	Solder	Backlock Flip Lock	15	Notched	Liquid Crystal Polymer (LCP) Halogen Free

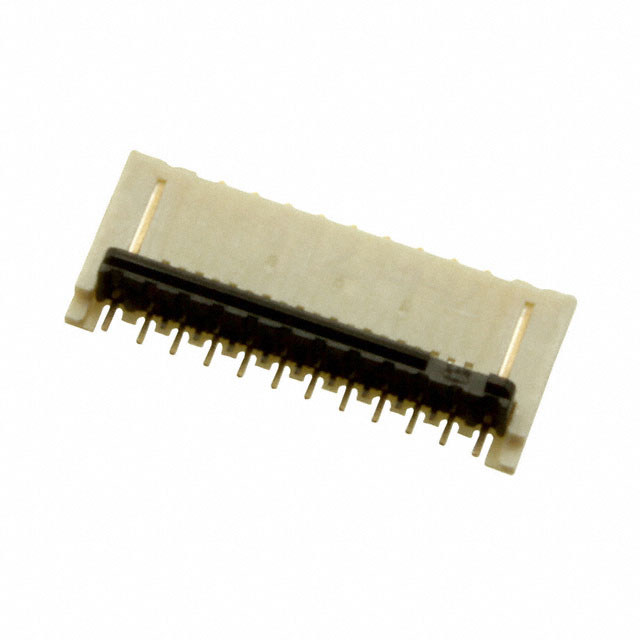

Hirose Electric Co Ltd FH64MA-19S-0.25SHW(99)	10	Beige	0.2 A	1.25 Áin	0.03 Ám	Black	Contacts Top	Polyamide (PA) Nylon	Gold	Phosphor Bronze	Right Angle Surface Mount	FPC	0.01 in	0.25 mm	0.02 in	0.5 mm	UL94 V-0	30 VDC	-55 C	85 °C	0.12 mm	Solder	Backlock Flip Lock	19	Notched	Liquid Crystal Polymer (LCP) Halogen Free
Hirose Electric Co Ltd FH64MA-11S-0.25SHW	10	Beige	0.2 A	1.25 Áin	0.03 Ám	Black	Contacts Top	Polyamide (PA) Nylon	Gold	Phosphor Bronze	Right Angle Surface Mount	FPC	0.01 in	0.25 mm	0.02 in	0.5 mm	UL94 V-0	30 VDC	-55 C	85 °C	0.12 mm	Solder	Backlock Flip Lock	11	Notched	Liquid Crystal Polymer (LCP) Halogen Free

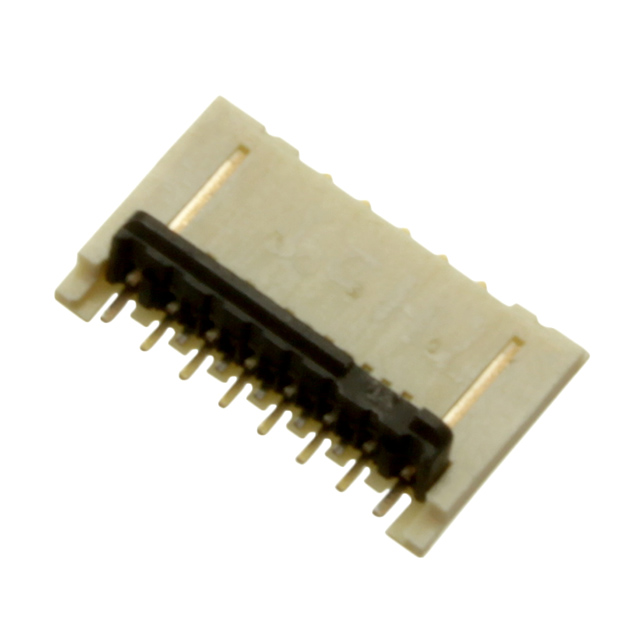

Hirose Electric Co Ltd FH64MA-11S-0.25SHW(99)	10	Beige	0.2 A	1.25 Áin	0.03 Ám	Black	Contacts Top	Polyamide (PA) Nylon	Gold	Phosphor Bronze	Right Angle Surface Mount	FPC	0.01 in	0.25 mm	0.02 in	0.5 mm	UL94 V-0	30 VDC	-55 C	85 °C	0.12 mm	Solder	Backlock Flip Lock	11	Notched	Liquid Crystal Polymer (LCP) Halogen Free
Hirose Electric Co Ltd FH64MA-7S-0.25SHW(99)	10	Beige	0.2 A	1.25 Áin	0.03 Ám	Black	Contacts Top	Polyamide (PA) Nylon	Gold	Phosphor Bronze	Right Angle Surface Mount	FPC	0.01 in	0.25 mm	0.02 in	0.5 mm	UL94 V-0	30 VDC	-55 C	85 °C	0.12 mm	Solder	Backlock Flip Lock	7	Notched	Liquid Crystal Polymer (LCP) Halogen Free
