NVMJD010N10MCL Series

MOSFET - Power, Dual, N-Channel, 100 V, 10 mΩ, 62 A

Catalog

MOSFET - Power, Dual, N-Channel, 100 V, 10 mΩ, 62 A

Part	Input Capacitance (Ciss) (Max) @ Vds	Grade	Configuration	Mounting Type	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Drain to Source Voltage (Vdss)	Gate Charge (Qg) (Max) @ Vgs [Max]	Technology	Package / Case	Qualification	Current - Continuous Drain (Id) @ 25°C	Power - Max	Rds On (Max) @ Id, Vgs
ON Semiconductor NVMJD010N10MCLTWG	1795 pF	Automotive	2 N-Channel	Surface Mount	8-LFPAK	-55 °C	175 ░C	100 V	26.4 nC	MOSFET (Metal Oxide)	8-LFPAK56 SOT-1205	AEC-Q101	11.8 A 62 A	3.1 W 84 W	10 mOhm

Catalog

MOSFET - Power, Dual, N-Channel, 100 V, 10 mΩ, 62 A

Key Features

• Small Footprint (5x6 mm)

• Low RDS (ON)

• Low QGand Capacitance

• AEC-Q101 Qualified and PPAP Capable

• These Devices are Pb−Free, Halogen Free/BFR Free, Beryllium Freeand are RoHS Compliant

Description

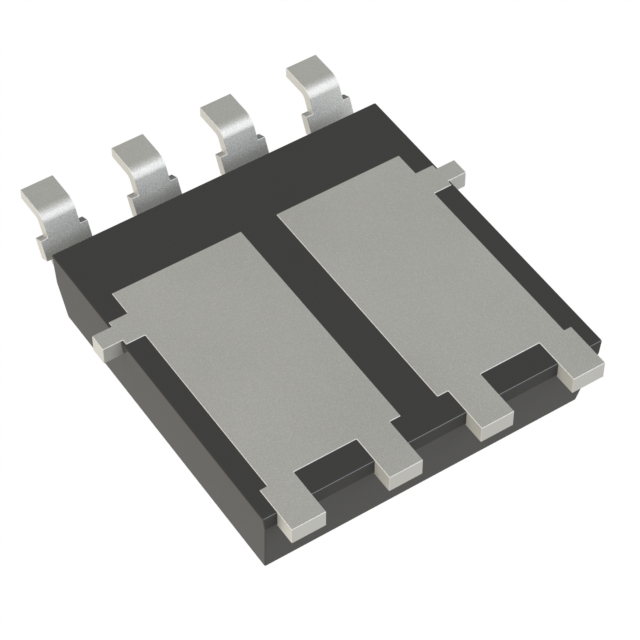

Automotive Power MOSFET in a 5x6mm flat lead package designed for compact and efficient designs and including high thermal performance. AEC-Q101 Qualified MOSFET and PPAP capable suitable for automotive applications.
