1650 Series

Catalog

AUDIO TRANSFORMER 2000VRMS 47.1OHM PRIM. DCR 0.23OHM/0.36OHM SEC. DCR 9 TERMINAL WIRE LEAD FLANGE MOUNT

Part	Weight	Weight	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Impedance - Primary (Ohms)	Frequency Response	Frequency Range [Min]	Frequency Range [Max]	Termination Style	Impedance - Secondary (Ohms)	Mounting Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Insertion Loss	Power Level	Transformer Type	DC Resistance (DCR) - Primary	DC Resistance (DCR) - Secondary	Voltage - Isolation	Size / Dimension [y]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	DC Resistance (DCR) - Primary	Height - Seated (Max)	Weight [custom]	Weight [custom]
Hammond Manufacturing 1650T	14 lbs	6.4 kg	4.56 in	115.82 mm	1.9kCT	1 dB	30 Hz	30 kHz	Wire Leads	4 Ohms 8 Ohms 16 Ohms	Chassis Mount	95.25 mm	3.75 "	4.5 in	114.3 mm	1 dB	120 W	Push-Pull Audiophile Ultra-Linear - Tube Output
Hammond Manufacturing 1650TA	14 lbs	6.4 kg	4.56 in	115.82 mm	1.9kCT	1 dB	30 Hz	30 kHz	Wire Leads	4 Ohms 8 Ohms 16 Ohms	Chassis Mount	95.25 mm	3.75 "	4.5 in	114.3 mm		120 W	Push-Pull Audiophile Ultra-Linear - Tube Output	22.07 Ohm 24.85 Ohm	251 mOhm 334 mOhm 359 mOhm	2000 V
Hammond Manufacturing 1650KA	7 lbs	3.2 kg			3.4kCT	1 dB	30 Hz	30 kHz	Wire Leads	4 Ohms 8 Ohms 16 Ohms	Chassis Mount		3.13 "	4 "	101.6 mm		50 W	Push-Pull Audiophile Ultra-Linear - Tube Output	32.74 Ohm	306 mOhm 432 mOhm 540 mOhm	2000 V	79.5 mm	3.81 in	96.77 mm	36.71 Ohm
Hammond Manufacturing 1650P	8 lbs	3.6 kg			6.6kCT	1 dB	30 Hz	30 kHz	Wire Leads	4 Ohms 8 Ohms 16 Ohms	Chassis Mount	79.5 mm	3.13 "	4.25 in	107.95 mm	1 dB	60 W	Push-Pull Audiophile Ultra-Linear - Tube Output					3.81 in	96.77 mm
Hammond Manufacturing 1650W	28 lbs	12.7 kg			1.9kCT	1 dB	30 Hz	30 kHz	Wire Leads	4 Ohms 8 Ohms 16 Ohms	Chassis Mount	111.25 mm	4.38 "	7.5 in	190.5 mm	1 dB	280 W	Push-Pull Audiophile Ultra-Linear - Tube Output					5.25 in	133.35 mm

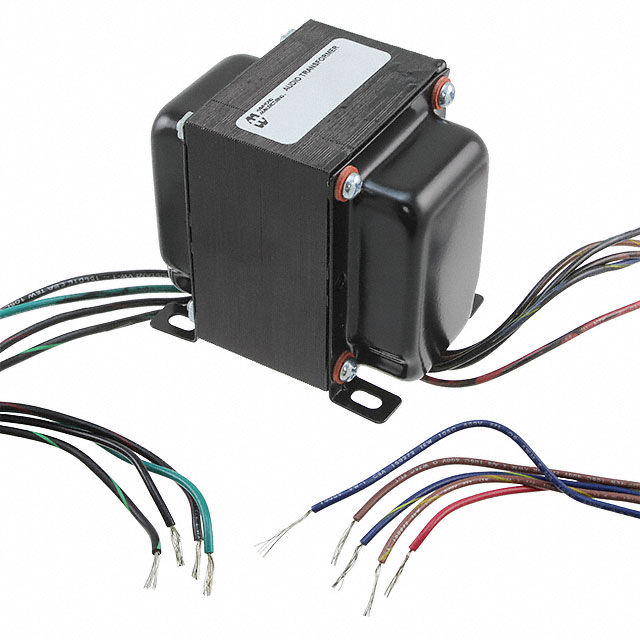

Hammond Manufacturing 1650E	3.5 lbs	1.6 kg	3.06 in		8kCT	1 dB	30 Hz	30 kHz	Wire Leads	4 Ohms 8 Ohms 16 Ohms	Chassis Mount	63.5 mm	2.5 "	3.25 "	82.55 mm		15 W	Push-Pull Audiophile Ultra-Linear - Tube Output	98.98 Ohm 101.9 Ohm	154 mOhm 218 mOhm 303 mOhm	2000 V					77.72 mm
Hammond Manufacturing 1650K	7 lbs	3.2 kg			3.4kCT	1 dB	30 Hz	30 kHz	Wire Leads	4 Ohms 8 Ohms 16 Ohms	Chassis Mount		3.13 "	4 "	101.6 mm	1 dB	50 W	Push-Pull Audiophile Ultra-Linear - Tube Output				79.5 mm	3.81 in	96.77 mm
Hammond Manufacturing 1650HA					6.6kCT	1 dB	30 Hz	30 kHz	Wire Leads	4 Ohms 8 Ohms 16 Ohms	Chassis Mount		3.13 "	4 "	101.6 mm		40 W	Push-Pull Audiophile Ultra-Linear - Tube Output	63.69 Ohm 71.33 Ohm	74 mOhm 223 mOhm 258 mOhm	2000 V	79.5 mm	3.81 in	96.77 mm			6.5 lbs	2.9 kg
Hammond Manufacturing 1650H					6.6kCT	1 dB	30 Hz	30 kHz	Wire Leads	4 Ohms 8 Ohms 16 Ohms	Chassis Mount		3.13 "	4 "	101.6 mm	1 dB	40 W	Push-Pull Audiophile Ultra-Linear - Tube Output				79.5 mm	3.81 in	96.77 mm			6.5 lbs	2.9 kg
Hammond Manufacturing 1650PA	8 lbs	3.6 kg			6.6kCT	1 dB	30 Hz	30 kHz	Wire Leads	4 Ohms 8 Ohms 16 Ohms	Chassis Mount	79.5 mm	3.13 "	4.25 in	107.95 mm		60 W	Push-Pull Audiophile Ultra-Linear - Tube Output	71.34 Ohm	237 mOhm 364 mOhm 473 mOhm	2000 V		3.81 in	96.77 mm	80.42 Ohm
