AME25 Series
Manufacturer: aimtec
Beta
⌘K
AC/DC CONVERTER 3.3V 25W
| Part | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Package / Case | Current - Output (Max) [Max] | Type | Voltage - Output 1 | Number of Outputs | Weight | Weight | Applications | Mounting Type | Power (Watts) | Voltage - Input [Max] | Voltage - Input [Min] | Approval Agency | Line Regulation | Efficiency | Load Regulation | Load Regulation | Features | Operating Temperature [Max] | Operating Temperature [Min] | Current - Output 1 | Voltage - Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

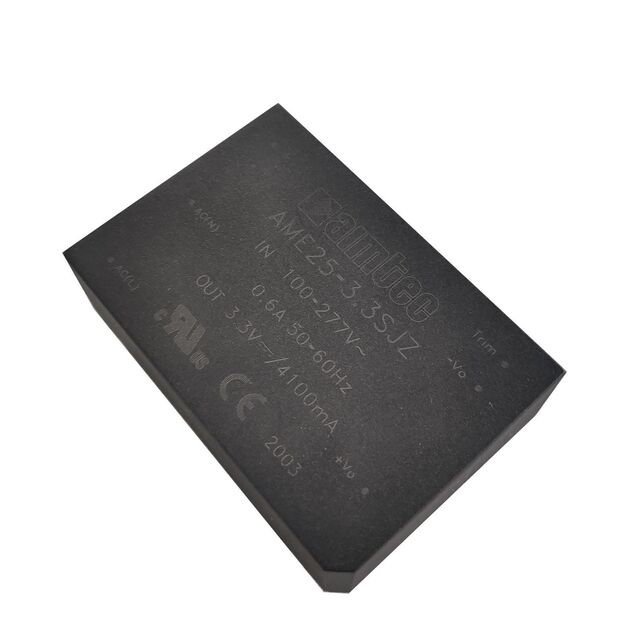

 aimtec | 23.5 mm | 1.89 in | 0.93 " | 48 mm | 2.76 " | 70 mm | 6-DIP Module | 4.1 A | Enclosed | 3.3 V | 1 | 0.265 lb | 120 g | ITE (Commercial) | Through Hole | 25 W | 305 VAC | 85 VAC | CE cURus | 0.5 % | 75 % | 0.5 % | ||||||
 aimtec | 23.5 mm | 1.89 in | 0.93 " | 48 mm | 2.76 " | 70 mm | 8-DIP Module 4 Leads | 1.6 A | Enclosed | 15 V | 1 | 0.265 lb | 120 g | Medical | Through Hole | 24 W | 264 VAC 370 VDC | 85 VAC 100 V | 0.5 % | 88 % | ±1% | Universal Input | ||||||
 aimtec | 32 mm | 2.13 in | 1.26 " | 54 mm | 3.78 in | 96.1 mm | Enclosed | 5 V | 1 | ITE (Commercial) | Chassis Mount | 21 W | 264 VAC 370 VDC | 85 VAC 100 V | 79 % | Universal Input | 85 °C | -40 C | 4.1 A | 4000 V |
